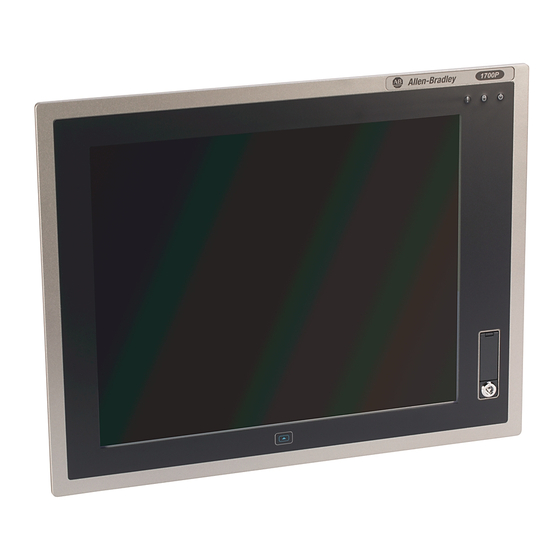

Rockwell Automation 6181P Series Migration Manual
Upgrading industrial computers hard drives
Hide thumbs
Also See for 6181P Series:
- User manual (124 pages) ,
- Installation instructions manual (20 pages) ,
- User manual (40 pages)
Related Manuals for Rockwell Automation 6181P Series
Summary of Contents for Rockwell Automation 6181P Series
-
Page 1: Upgrading 6181P Series F Industrial Computers Hard Drives
Upgrading 6181P Series F Industrial Computers Hard Drives Quick Start Guide for Upgrading from 32GB SSD or 100GB HDD to a 256GB SSD... -
Page 2: Table Of Contents
| Upgrading 6181P Series F Industrial Computers Hard Drives Table of Contents Upgrading 6181P Series F Industrial Computers Hard Drives ............1 How to Guide for Upgrading from 32GB SSD or 100GB HDD to a 256GB SSD ....... 1 ... -
Page 3: Purpose
Applicable Scenarios End users who have existing 6181P Series F computers with 100GB HDD or 64GB SSD storage media are able to purchase individual 256GB SSDs as an accessory. A field upgrade of their machine can be performed using the procedure outlined in this guide. -
Page 4: Overview
| Upgrading 6181P Series F Industrial Computers Hard Drives Overview An AMI Rescue backup image of the existing hard drive captures the size of the System Reserved partition, (C:) drive partition and Recovery partition. The information for each can be viewed in the Disk Management utility which can be accessed by typing “diskmgmt.msc”... -
Page 5: Procedure
The procedure to complete this process is dependent on the version of FactoryTalk Activation Manager installed. Please note, it is recommended to record the serial number of available activations prior to rehosting them should Rockwell Automation Technical Support need to reset the activation. - Page 6 | Upgrading 6181P Series F Industrial Computers Hard Drives Select Restore Now and follow the prompts pictured below: The restored destination may not have enough space due to the compression rate of backup image. Continue? Target partitions will be overwritten. Continue? ...
-
Page 7: Modify Partition Size Using Diskpart
The current partition table will be restored to previous state. Continue? Once the restore is complete, the progress bar will show 100%. To return to your desktop, select Exit three times. IV. Modify Partition Size using DISKPART The extra space on the 256GB drive cannot be used until it is allocated. The empty Recovery partition and unallocated extra space can be allocated to the main storage partition (C:) using DISKPART in an administrative command prompt. - Page 8 | Upgrading 6181P Series F Industrial Computers Hard Drives The 256GB Drive will appear smaller due to byte/gigabyte conversion. Select this disk by entering select disk 0 View the partitions and their sizes of this disk using the list partition command The OEM partition is the empty and unlabeled recovery partition which can be removed.
-
Page 9: Create Recovery Partition Using Diskpart (Optional)
The extra space on the drive is now allocated to the main storage (C:) partition, as shown below. To create a Recovery Partition, stay in DiskPart and continue to the next section. V. Create Recovery Partition using DISKPART (optional) If a Recovery Partition is needed, continue the procedure with command prompt running diskpart and the main storage volume still selected from the previous steps. -
Page 10: Restore Factorytalk Activation
The last step in upgrading the hard drive is to restore the FactoryTalk Activation in the image. If the FactoryTalk Activation Host ID is attached to the hard driver serial number, the activations will need to be rehosted. The procedure to complete this process is dependent on the version of FactoryTalk Activation Manager installed. Please visit the Rockwell Automation Software Activation website... -
Page 11: Frequently Asked Questions
Frequently Asked Questions I apply a custom image to systems that had the 100GB HDD (or 32GB SSD) drive. Can I use this image with the larger 256GB SSD? Yes. The system will function without needing to make changes to your image; however, the extra space of the larger drive will be unusable until it is allocated. The extra space can be allocated using a command prompt. If a unit with activated Rockwell Software is upgraded does it keep the activation? Yes. If the activation is linked to the old drive’s serial number, the activation must be returned from the system using the old drive and re‐hosted on the system once the new drive is installed. Are all agency certifications still valid if upgrade to 256GB SSD occurs? Yes – there is no impact to the agency certification if the 256GB SSD is installed What are the performance increases for upgrading to the 256GB SSD? Our tests show that users who switch from the 100GB HDD to the 256GB SSD will see a 2.5x faster generic boot time and 2x faster boot to FactoryTalk View ME application. Results will vary based on application sizing. Will 32bit 256GB SSD OS images be available? Yes – see the Rockwell Automation Product Compatibility and Download (PCDC) site (Link) Can Series E 6181P computers be upgraded to 256GB SSD? No, the 256GB SSD is only qualified for Series F 6181P products ... - Page 12 | Upgrading 6181P Series F Industrial Computers Hard Drives Copyright© 2016 Rockwell Automation, Inc. All rights reserved.
