Installation Instructions
Original Instructions

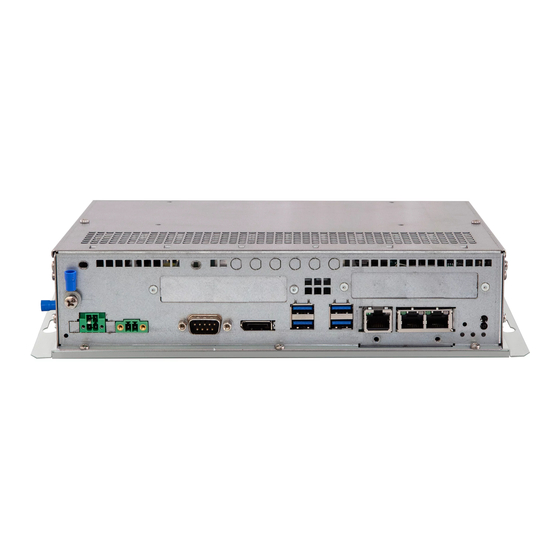

ASEM 6300B-EW1 and 6300P-EW1 Entry Level Industrial Computers
Bulletins 6300B - 6300P, Family EW1
Equipment with the UL/cUL mark complies with the requirements of UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1, and CSA C22.2 No. 61010-
2-201. Copies of the certificate of compliance are available at rok.auto/certifications.
Safety instructions
ATTENTION: This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC
60664-1), at altitudes up to 2000 m (6561 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according to EN 61326-1. Without appropriate precautions, there can be potential
difficulties with electromagnetic compatibility in other environments caused by conducted as well as radiated disturbance.
In addition to this publication, see the following:
• Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1, for more installation requirements.
• UL 50, UL 50E, CSA C22.2, No. 94.1, and CSA C22.2, No. 94.2, as applicable, for explanations of the degrees of protection provided by enclosures.
European Union Directive and UKCA Compliance
This equipment meets the European Union Directive and UK requirements when installed within the European Union, UK, or EEA regions and have the CE or UKCA marking. A
copy of the declaration of the conformity is available at rok.auto/certifications.
ATTENTION: This computer is intended to operate in an industrial or control room environment, which uses some form of power isolation from the
public low-voltage mains. All I/O circuits are rated for use with indoor cables only.
Installation Requirements
Follow these guidelines to make sure that your computer provides service
with excellent reliability.
When choosing the installation site, consider the following:
- The site must have sufficient power.
- The site must be indoors and non-hazardous.
- The site must not expose the computer to direct sunlight.
The computer can operate in the following environmental
conditions:
- Operating temperature: 0...50 °C (32...122 °F).
- Storage temperature: -20...+60 °C (-4...+140 °F).
Operation/storage relative humidity (RH) non condensing: 20...90%.
Follow these requirements to mount the computer.
Choose a suitable mounting height.
To help prevent overheating and to provide access to the I/O ports
for cable connections, mount the computer with the following
minimum clearances from all four sides of the outer frame and
back of the computer chassis:
- X direction ≥ 50 mm (1.97 in.)
- Y direction ≥ 100 mm (3.94 in.)
- Z direction ≥ 50 mm (1.97 in.)
For optimal performance, mount the computer in the horizontal
orientation and vertical (upright) position, so the I/O ports face
down.

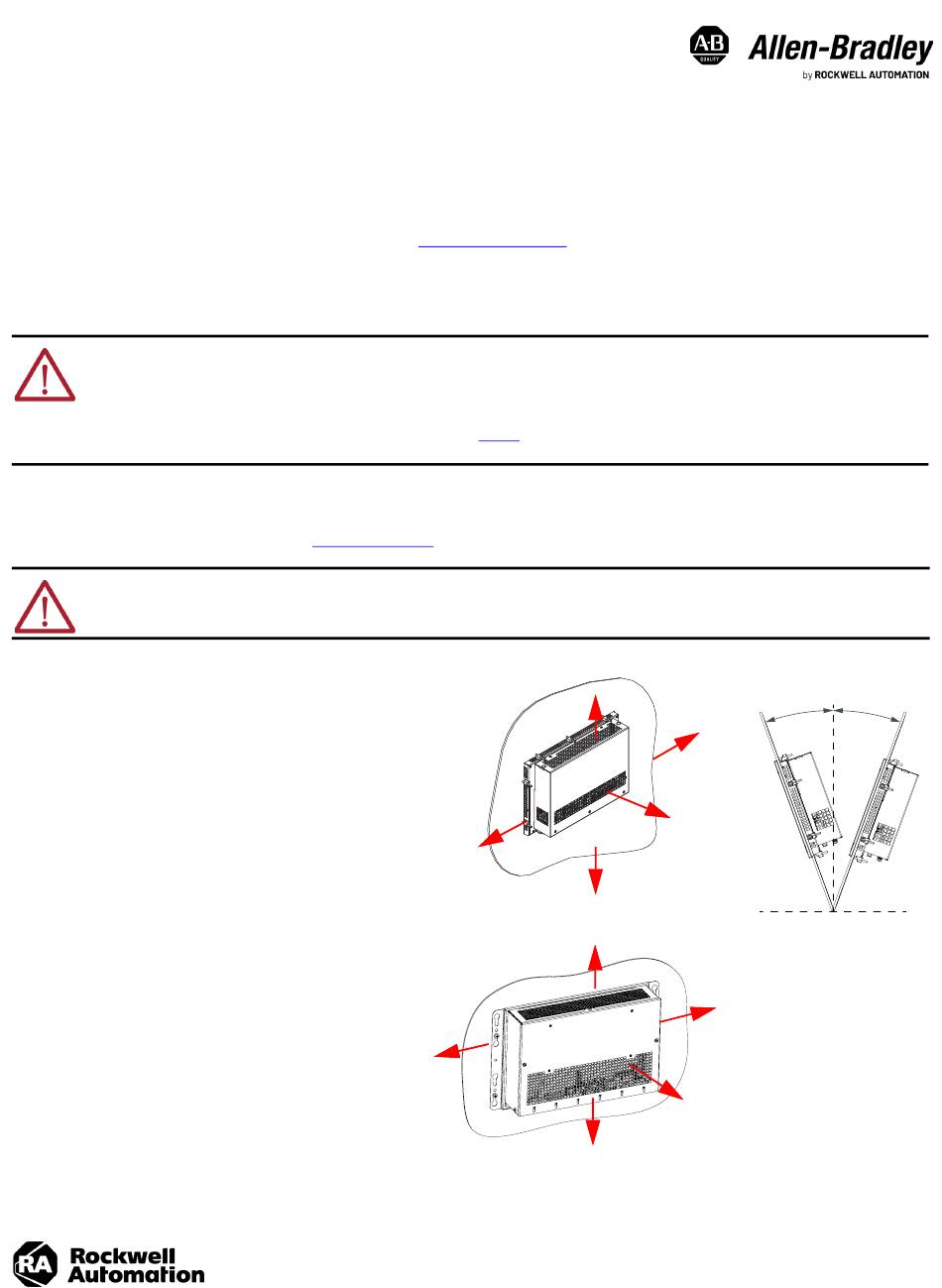

Panel Installation min. clearance
Y
X
Y
Wall mount Installation min. clearance
Y
X
The vertical position can be tilted up to 20° forward or 20° backward from the upright position. However,
his acceptable tilt angle range decreases the maximum operating air temperature to 45 °C (113 °F).
Installation max. tilt*
X
Z
X
Z
Y
°
0
°
°
-20
+20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Allen-Bradley ASEM 6300B-EW1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rockwell Automation Allen-Bradley ASEM 6300B-EW1

  • Page 1 Installation Instructions Original Instructions ASEM 6300B-EW1 and 6300P-EW1 Entry Level Industrial Computers Bulletins 6300B - 6300P, Family EW1 Equipment with the UL/cUL mark complies with the requirements of UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1, and CSA C22.2 No. 61010- 2-201.
  • Page 2: Installation

    From the front of the panel insert the computer into the cutout (A) and rotate it (B) until it is completely against the panel (C). Insert the mounting clips into the holes (D) on all four sides of the computer and repeat the procedure in step 3 through step 4 for all the clips. Rockwell Automation Publication 6300-IN002A-EN-P - April 2024...
  • Page 3: Approximate Dimensions

    ATTENTION: Tighten the mounting clips to the specified torque to provide a proper seal and to help prevent product damage. Rockwell Automation assumes no responsibility for water or chemical damage to the computer or other equipment within the enclosure because of improper installation.
  • Page 4 Table 2 - Connectors/LEDs/Buttons Sys. Item Required Description Power Function Cat. Nos. cable Color State 6300P-EW1*****A Front Power On LED See 12 LED Power On explanation. 6300P-EW1*****B 6300P-EW1*****C Ground screw Ground the system All catalog numbers Rockwell Automation Publication 6300-IN002A-EN-P - April 2024...
  • Page 5 • The nominal output power should be 25% larger than the drained power. : Inrush Peak Current • The output voltage raise time has to be less than 100ms. Inrush, pk T: time Rockwell Automation Publication 6300-IN002A-EN-P - April 2024...
  • Page 6 Tighten cable tie (8) and remove the excess part [step (C)] and install the white labels (9) supplied with the terminal block cover kit [steps (D) (E)]. The white label can be used for identification or other information. Rockwell Automation Publication 6300-IN002A-EN-P - April 2024...
  • Page 7: Grounding And Bonding

    Insert the zip tie around the LAN cable and the beveled edge of the plate, tighten the tie (3) and remove the excess part [step (C)]. Item No. Description Metallic plate M3 screws (qty: 2) Zip ties (qty: 3) Rockwell Automation Publication 6300-IN002A-EN-P - April 2024...
  • Page 8: Battery Removal

    At the end of its life, collect the battery contained in this computer separately from any unsorted municipal waste. Additional Resources These documents contain additional information concerning related products from Rockwell Automation. You can view or download publications at rok.auto/literature. Resource Description...
