Wireless Mini-Pci Installation - Motion Computing M1200 User Manual

W
To install the wireless mini-PCI card (WMIB 100GS) in your Tablet PC,
IRELESS
M -PCI
follow these steps:
INI
I
NSTALLATION

Wireless Mini-PCI Installation

WARNING: To avoid the risk of personal injury or damage to the Tablet PC,
when performing the following tasks, turn off your Tablet PC, unplug the AC
power connection, and remove the battery. Ground yourself by touching a
grounded conductive surface, such as a device or appliance with a grounded,
three-pronged plug. Avoid touching the pins and leads on the memory module
and the internal circuitry of the Tablet PC.

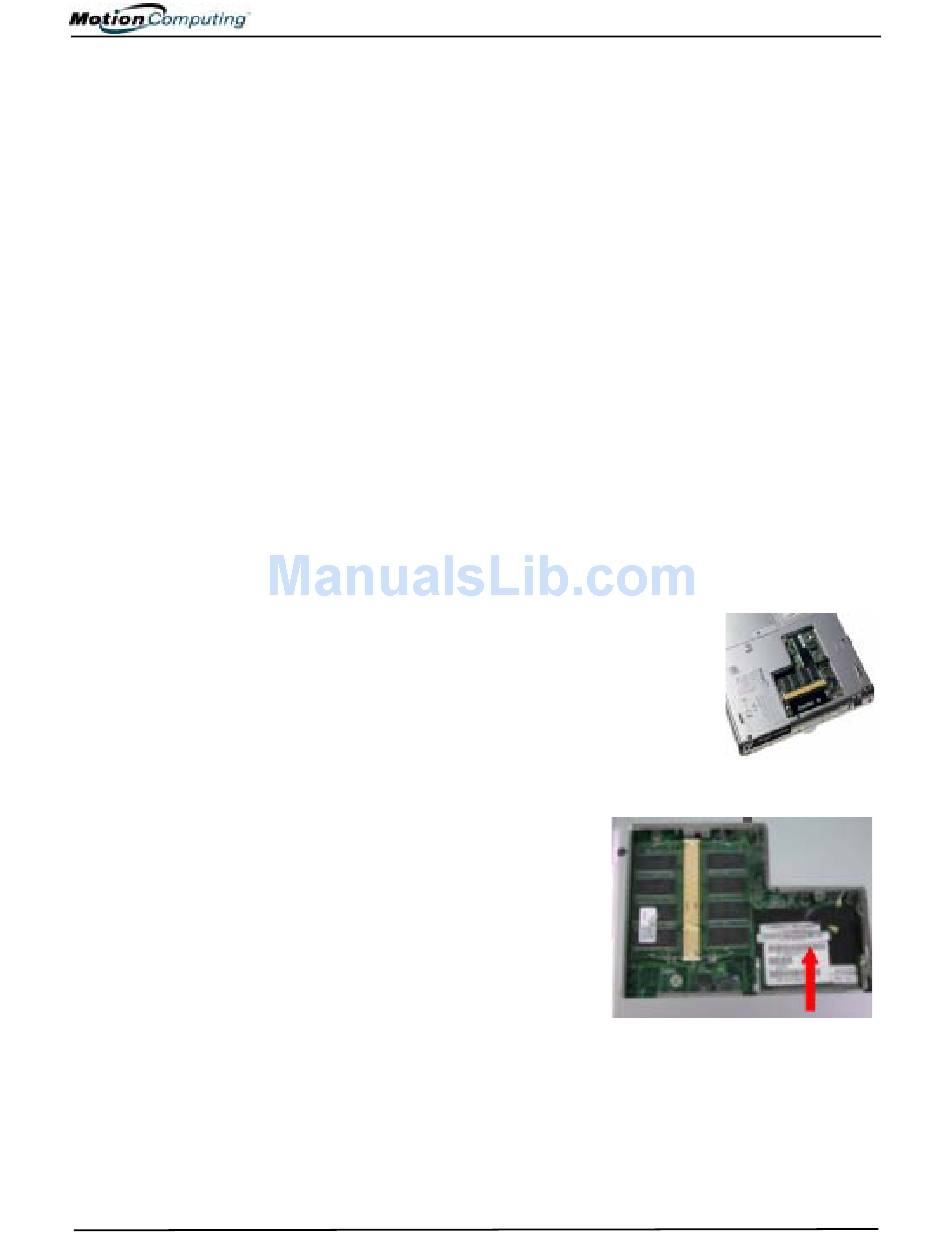

1. After you disconnect power, unscrew the
L-shaped cover from the bottom of the
Tablet PC.
2. If you are replacing a wireless card, release the
clips on each side of the card then lift to
remove it from the slot.
3. Align the pins on the wireless card with the
receptors on the slot.
4. Gently push the new wireless
mini-PCI card into the mini-PCI
socket of the Tablet PC mother-
board at a 25-degree angle until it
is firmly seated, then snap it into
place.
Appendix C Wireless Mini-PCI Installation
Appendix
Motion Computing Tablet PC User Guide xii
C
