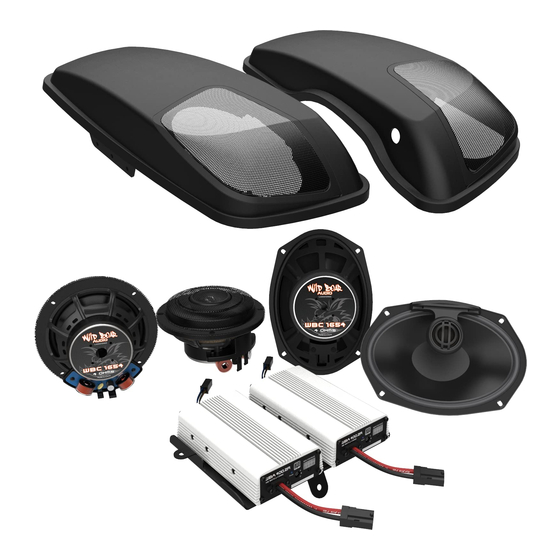

- Page 1 WBA 800.4SG KIT WBA 800.4SG KIT WBA 800.4rG KIT IMPORTANT! A Radio “Re-Flash” Is Strongly Encouraged Before Proceeding. Please Read Manual For More Information FOR USE ON 15+ ROAD GLIDE MODELS INSTALLATION MANUAL...
- Page 2 Road Glide Models. We want your kit to work as well as it was designed to, so if you have any questions or concerns, please email: tech@hogtunes.com or call us during regular business hours (EST) at (705)-719-6361. If you still need help, please consider a professional installation by your dealer.
-
Page 3: Getting Started
BEFORE BEFORE BEFORE GETTING STARTED GETTING STARTED GETTING STARTED We strongly suggest following the order of this manual. Wire harnesses need to be run from the front of the bike to the back, and from the back to the front. Following the manual as its written will help keep installation time to a minimum. - Page 4 Section 1 FRONT SPEAKER INSTALLATION FRONT SPEAKER INSTALLATION FRONT SPEAKER INSTALLATION Step #1: Grill Trim Ring Selection: In the box, you will see that the metal mesh grill with tweeter in it is sitting in the black trim ring. If you turn this over, you will see “tabs” in the metal mesh used to secure the mesh to the black trim ring have not been folded over.
- Page 5 the new woofer into place so it will go past the grill opening on the inner fairing, noting it will go in without force. In order to make the speaker install properly, the speaker wires must be oriented so they are closest to the top of the inner fairing (12 o’clock position).
- Page 6 Step #1: The white circle in Fig 1.1 above is where a 3/4” (19mm) hole will be drilled. This hole is where the supplied Hogtunes rubber grommet will go to allow the lids speaker wire to pass from the saddlebag. We strongly suggest putting masking tape over the painted area to be drilled.
- Page 7 Step #5: The large latching mechanism just removed will now be installed into the Hogtunes lid using the factory screws just removed. You will need to jostle the mechanism gently to get it in place. As shown above (Fig 1.3), the 4 main screws on the mechanism are the ones to do first. In- stall the factory handle to the new lid using the factory screw.
- Page 8 Step #6: Before applying the supplied rubber gasket you will need to clean the area the gasket will stick to. Use a mild cleaner such as 99% Isopropyl alcohol, but nothing aggressive like acetone as acetone will destroy the lid. See gasket profile.
- Page 9 place so it is oriented as shown in Fig 1.2. There is a specific brake side and clutch side, so put the one in so all 4 holes in the plate line up to the holes in the lid. Re-install the 4 screws noting that the tether will sit on top of the crossovers mounting plate.
- Page 10 Step #13: Take one of the 6x9” woofers (they are the same for brake and clutch side) and sit it in the lid so the connector “end” of the speaker is closest to the passive crossover. There is a bag in the lid box with 8 screws that will be used to secure the woofer to each lid.
-
Page 11: Amplifier Installation
Section 3 AMPLIFIER INSTALLATION AMPLIFIER INSTALLATION AMPLIFIER INSTALLATION As the amplifiers come in each box, they are “stuck” to a mounting plate for use in FLH (Batwing) model bikes. “Peel” the amps off each plate and put those plates aside as they are not required for FLTR (Road Glide) installations. As stated in the “Important Notes”... - Page 12 Step #1: Locate the “splitter” power harness included in this kit. You will see one end that has “ring terminals”, and the other end that “splits” and has 2 power connectors on it. Using Fig 1.1 on page 9 for reference, run the “ring terminal end”...
- Page 13 IMPORTANT In this install we refer to one amp as the “Primary” and the other as the “Secondary.” The Primary always has the main input harness go into it, and is always the amp that powers the front fairing speakers. When installed, the amp on the BACK SIDE of the plate is the PRIMARY AMPLIFIER.
- Page 14 Step #8: Using Fig 1.1 on page 9 for reference, you will see 2 large factory harnesses between “A” and “B”. Wiggle the amp/plate into place around these harnesses so that the holes on the “legs” at the bottom of the plate line up with the holes where the factory bolts around “B” were.
-
Page 15: System Adjustment
Step #11: Turn the stereo on and, at low volume, test to make sure all four speakers are working. Step #12 Re-install the seat making sure the amplifier’s “+” and “-” connectors are positioned in such away so they will not bend or break when the rider’s weight is on the seat. - Page 16 SYSTEM ADJUSTMENT SYSTEM ADJUSTMENT SYSTEM ADJUSTMENT Please Note: Having the correct flash installed in your radio is the preferred condition in all cases. The fader will NOT work without the correct flash installed. As explained at the beginning of this manual, in order for the system to work properly you will need to have the correct “flash”...
- Page 17 • The “Radio Flash Selector” switch positions have been carefully tailored to “work around” the radio flashes, assuming you have the ‘front and rear speakers without amp”, and assuming the speakers you are using can handle the power of this amp. For clarity, all Wild Boar Audio speakers were tested thoroughly with this amp.
- Page 18 QUICK REFERENCE WIRING DIAGRAM A) Factory Connectors Between Radio and Speaker Cabinets (pink/pink with black stripe) B) Primary Amp Brake Side Input (Green Heatshrink) C) Primary Amp Clutch Side Input (Yellow Heatshrink) D) Primary Amp Brake Side Output (Blue Heatshrink) E) Primary Amp Clutch Side Output (Brown Heatshrink) F) Primary Amp Amplified Output “Pigtail”...
-
Page 19: Warranty Info
What Is Not Covered: 1) Any expense related to the removal or re-installation of products. 2) Repairs to these products performed by anyone other than Hogtunes, Inc. 3) Subsequent damage to any other components. 4) Any product purchased from a non-authorized Wild Boar Audio dealer. - Page 20 Hogtunes products will play much louder than the Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting, or playing your stereo at high volume, ESPECIALLY IN TRAFFIC. You are a valued customer so please:...
