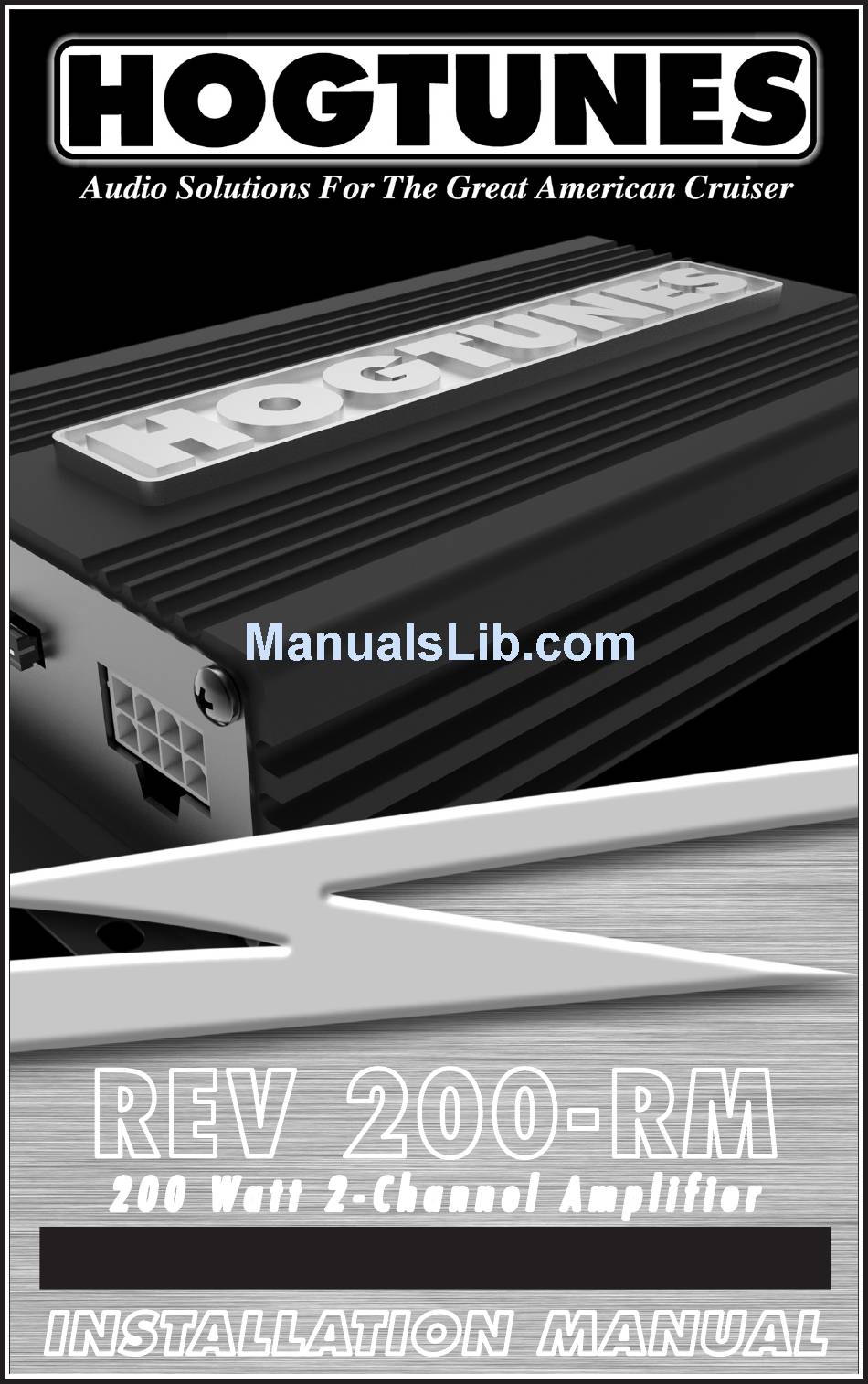

- Page 1 200-rM rev 200-rM 2 0 0 W a t t 2 - C h a n n e l A m p l i f i e r 2 0 0 W a t t 2 - C h a n n e l A m p l i f i e r...
- Page 2 If you have any questions or concerns, we are here to help. The REV 200-RM Amplifier is a Class D design. We chose this design because it yields plenty of power, is easy on the bike’s charging system and produces little heat.
- Page 3 installation instructions Step #1: Remove the seat and both wires (+ and -) from the battery. Remove the outer fairing/headlamp assembly and set aside. Refer to a service manual if you need help with this. NOTE: Placing a towel on the front fender can help prevent scratches or “dings”...
- Page 4 The plate with four small front of the bike you can holes is for mounting a popular Harley read the Hogtunes logo on accessory. The white circles show tabs which top of the amp. Use the are there for the “Christmas Tree” fasteners to four short Philips head re-secure the harnesses lifted earlier.
- Page 5 Step #7: From the amp’s input connector, take the 2 pin plug with the green/ black wires and install it into the mating plug on the brake side of the bike. Also from amp’s input connector, take the 2 pin plug with the yellow/black wires and install it into the mating plug on the clutch side of the bike.
-
Page 6: Technical Specifications
Your new amplifier has been specifically set-up for this radio setting. • Your Hogtunes system is designed specifically for a motorcycle at speed. Exhaust noise and wind noise have been taken into careful consideration in how your system performs. How your new system sounds in a driveway or garage is radically different from how it will sound at highway speeds. -
Page 7: Warranty Information
WarrantY inforMation Please Record Your Amplifier’s Serial # Here_________________________ The REV 200-RM Amplifier is warranted for 3 years from original purchase date. Proof of purchase is required for all warranty claims. The warranty applies to the original retail customer and is not transferable. Please contact Hogtunes for all warranty claims. - Page 8 Hogtunes products will play much louder than the Original Equipment, which can be a distraction to the rider and/or passenger. Please use caution when adjusting or playing your stereo at high volume, especially in traffic. You are a valued customer so please:...
