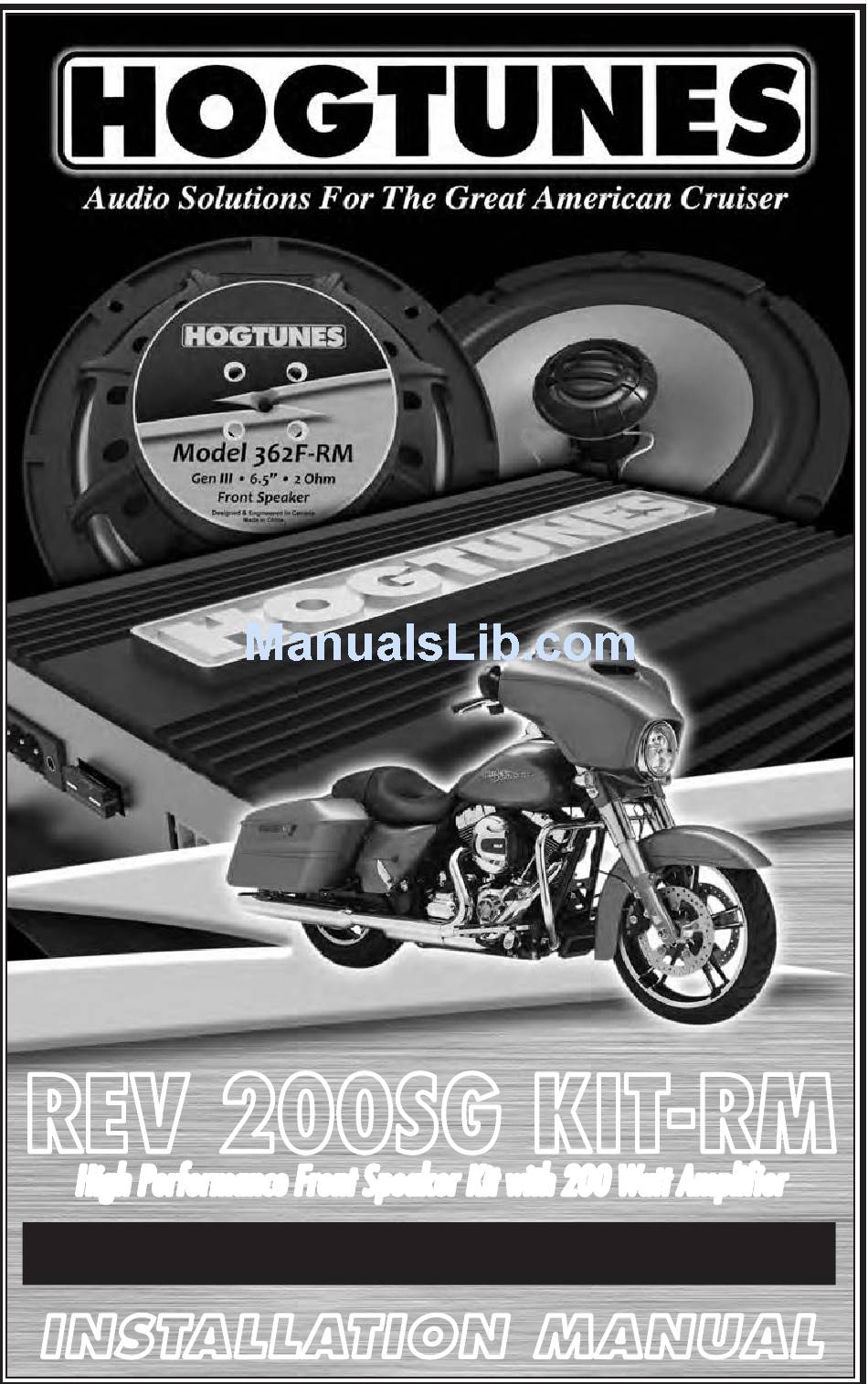

- Page 1 REV 200SG Kit-RM REV 200SG Kit-RM High Performance Front Speaker Kit with 200 Watt Amplifier High Performance Front Speaker Kit with 200 Watt Amplifier For Use on 1998-2013 Ultra ClassiCs and tri-Glides For Use on rUshmore Flh models installation Manual...
- Page 3 Thank you for choosing the Hogtunes REV 200SG KIT-RM speaker and amplifier kit for “Rushmore” platform bikes. Since positive word of mouth is the best way to grow our business, we want your new system to work as well as it was designed to.
- Page 4 362F-RM FRont SpeakeR InStallatIon InStRuctIonS Step #1: Remove the seat and both wires (+ and -) from the battery. Remove the outer fairing/headlamp assembly and set aside. Refer to a service manual if you need help with this. NOTE: Placing a towel on the front fender can help prevent scratches or “dings”...
- Page 5 Using the factory screws, attach the Hogtunes 362F-RM speaker to the cabinet noting that there is a locator “peg” on the cabinet and a hole in the speaker’s frame which need to line up so the speaker sits flush to the cabinet.
-
Page 6: Installation Instructions
Sit the amp on top of the silver plate so when standing in front of the bike you can read the Hogtunes logo on top of the amp. Locate the four short black Phillips head screws and secure the amplifier to the... - Page 7 Step #4: Figure 1.2 shown here. Figure 1.2 - Amplifier and mounting plate correctly oriented. The plate with four small holes is for mounting a popular Harley accessory. The white circles show tabs which are there for the “Christmas Tree” fasteners to re-secure the harnesses lifted earlier.
- Page 8 RoutIng the poweR haRneSS The balance of the main wire harness will pass under the inner fairing where the main wire harness passes through on the brake side of the bike. Loosen the tank console and run wires up and over the gas tank, but under the tank console. There is a provision on the front of the tank console for wires to pass.
-
Page 9: Technical Specifications
AVC position works and sounds best. Your new amplifier has been specifically set-up for this radio setting. 2) Your Hogtunes system is designed specifically for a motorcycle at speed. Exhaust noise and wind noise have been taken into careful consideration in how your system performs. -
Page 10: Warranty Information
WarrantY inforMation Please Record Your Amplifier’s Serial # Here_________________________ Hogtunes speakers are warranted for a period of 20 years. The REV 200-RM Amplifier is warranted for 3 years from original purchase date. Proof of purchase is required for all warranty claims. The warranty applies to the original retail customer and is not transferable. - Page 12 Any audio system can be a distraction to the rider and/or passenger. Please use caution when playing your stereo, ESPECIAlly IN TRAffIC. www.hogtunes.com REV200SGKIT-RM V1.2...
