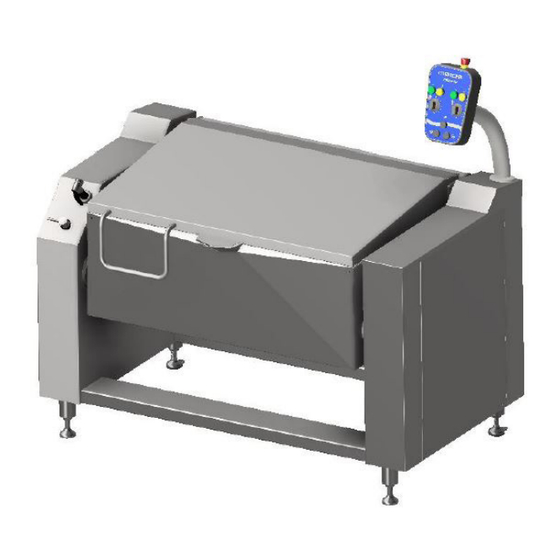

BRATT PAN
FUTURA HD
TYPE: 100,150, 200
Accessories
WATER FILLING, HOSE REEL WITH HAND SHOWER, STRAINER PLATE, REMOTE CONTROL
Installation and Operation Manual
Rev.: 1.1 (10.1.2023)
3756394, 3756283, 3756248

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Futura HD 100L and is the answer not in the manual?

Questions and answers

Related Manuals for Metos Futura HD 100L

Summary of Contents for Metos Futura HD 100L

  • Page 1 BRATT PAN FUTURA HD TYPE: 100,150, 200 Accessories WATER FILLING, HOSE REEL WITH HAND SHOWER, STRAINER PLATE, REMOTE CONTROL Installation and Operation Manual Rev.: 1.1 (10.1.2023) 3756394, 3756283, 3756248...

  • Page 2: Table Of Contents

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Contents General ...............................3 1.1. Symbols used in the manual ........................3 1.2. Symbols used on the appliance ........................3 1.3. Checking the relationship of the appliance and the manual ...............3 Safety................................4 2.1. Safe use of the appliance ..........................4 2.2.

  • Page 3: General

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD General Carefully read the instructions in this manual as they contain important information regarding to proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance.

  • Page 4: Safety

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Safety 2.1. Safe use of the appliance Because the bratt pan is a heated appliance that has hot surfaces during normal use, the following warn- ings and instructions must be followed to avoid burns: •...

  • Page 5: Accessories

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD 3.3. Accessories Each model of pan may have the following optional accessories (refer to the below picture): - Cold water filling Cold water from network is poured into the bowl through the spout built into the lid.

  • Page 6: Operation Instructions

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Operation instructions 4.1. Before use 4.1.1. Preparing the use The frying surface of the bratt pan is protected with a thin layer of grease during storage and transporta- tion. Before first-time use the grease must be removed by using hot water and detergent.
  • Page 7 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Operating panel Futura HD 150L, Futura HD 200L 1. EMERGENCY STOP button 2. Temperature adjustment of left cooking zone 3. Temperature adjustment of right cooking zone 4. Yellow signal lamp. Heating of left cooking zone is on 5.

  • Page 8: Setting Of The Frying Temperature

    By turning the thermostat to the 0 position, the other zone can be switched off when lower frying capacity is needed. Futura HD 100L has only one cooking zone. During long-time use, heat is transferred from one zone to the other. Although one zone would be switched off, it gets gradually warm, reaching a temperature that is about half of the temperature of the heated zone.

  • Page 9: Filling The Water (Optional)

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Tilting via control panel To tilt bowl at desired angle push and hold button. Release button when bowl has reached desired position. Tilting will be stopped automatically when bowl has reached max. tilting angle. Tilting is not allowed if the lid is closed.

  • Page 10: Service

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Cleaning equipment: - scraper, hard brush, scouring plate, towel, kitchen paper Cleaning detergent: - slightly alkaline detergent (pH 8-10) Cleaning method: - scraping, dry, wet, damp Precleaning: - Scrape out frying remains and wipe out grease and loose remains with paper. When necessary, pour hot water into the pan and let soak.

  • Page 11: Installation

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Installation 5.1. General Please observe the instructions given in this chapter concerning the installation and adjustments that must be done taking the bratt pan into use. Strict observance of the instructions prevents malfunctions and damages potentially caused by defective installation.

  • Page 12: Positioning The Bratt Pan

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD 5.3. Positioning the bratt pan The installation is started by moving the pan exactly to the right installation spot considering a possible floor drain. The distances needed are shown in the installation drawing.

  • Page 13: Connections

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD When the bratt pan is on the correct location and in a horizontal position, it can be bolted to the floor using flanges on the rear feet. 5.4. Connections Main switch Optional cold water connection...

  • Page 14: Electrical Connection

    The bratt pan Futura HD 150L and Futura HD 200L are equipped with two safety thermostats. Bratt pan Futura HD 100L is equipped with one safety thermostat. Safety thermostat prevents bratt pan from over- heating if main thermostat does not switch off heating elements.

  • Page 15: Troubleshooting

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Troubleshooting 6.1. Troubleshooting Futura HD 100 MALFUNCTION POSSIBLE REASON WHAT TO DO The pan does not The mains switch Q1 is in position 0.* Turn the switch to position I. heat The emergency-stop switch S5 is pressed...

  • Page 16: Troubleshooting Futura Hd 150, Futura Hd 200

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD 6.2. Troubleshooting Futura HD 150, Futura HD 200 MALFUNCTION POSSIBLE REASON WHAT TO DO The pan does not The mains switch Q1 is in position 0.* Turn the switch to position I.

  • Page 17: Technical Specifications

    Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Technical specifications • Voltage codes • Product codes • Heating element connection T04466B3 • Heating element connection T04467A3 • Heating element connection T04468A3 • Main and control circuit diagram T05416B3 • Main and control circuit diagram T05417A3 •...
  • Page 18 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Voltage codes Voltage code Voltage 3/N/PE~400/230V 50Hz ~250V 16A 50Hz 3/N/PE~380/220V 50Hz 3/PE~200V 50-60Hz 2/PE 220−240V 50Hz 3/N/PE~415/240V 50Hz 3/PE~230V 50Hz 3/PE~220V 60Hz 3/PE~380 50Hz 3/PE~400V 50Hz 3/PE~415V 50Hz 3/PE~440V 60Hz 3/PE~460V 60Hz...
  • Page 19 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 20 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 21 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 22 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 23 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 24 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 25 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 26 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 27 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 28 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 29 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 30 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 31 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD Technical specifications table Item Type Voltage Specification Dimensions WxDxH 1224x954x1563 mm 1561x953x1563 mm 1858x952x1563 mm Package dimensions WxDxH 1440x1090x1870 1765x1290x1870 2090x1290x1870 Working capacity 100L 150L 200L Geometrical volume of bowl 116L 170L...
  • Page 32 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 33 Rev.; 1.1 (10.1.2023) METOS BRATT PAN Futura HD...
  • Page 34 Metos Oy Ab Ahjonkaarre FI-04220 Kerava, Finland tel. +358 204 3913 www.metos.com...

This manual is also suitable for:

Futura hd 150lFutura hd 200l
