Connection Diagram; Set Up The Camera - Reolink TrackMix WiFi Operational Instruction

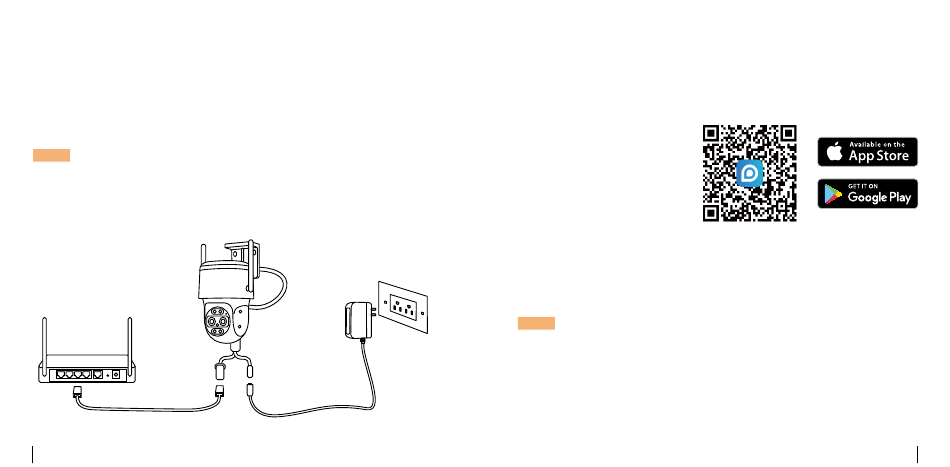

Connection Diagram

Before initial setup, follow the steps below to connect your camera.
1. Connect the camera to a LAN port on your router with an Ethernet
cable.
2. Use the power adapter to power on the camera.
NOTE: The connection diagram takes the WiFi Camera as an example
and also apply to the PoE camera. For PoE Camera, please power the
camera with a PoE switch/injector, Reolink PoE NVR or a DC 12V power
adapter (not included in the package).
Camera
Router
Network Cable
7 English
Power Adapter
Power Cable

Set UP the Camera

Download and launch the Reolink App or Client software, and follow the
onscreen instructions to finish initial setup.
• On Smartphone
Scan to download
the Reolink App.
• On PC
Download path of the Reolink Client: Go to https://reolink.com > Support
> App & Client.
NOTE:
• When setting up the WiFi camera, you need to follow the onscreen
instructions to finish the WiFi configuration first.
• If you are connecting the PoE camera to a Reolink PoE NVR, please set
up the camera via the NVR interface.
