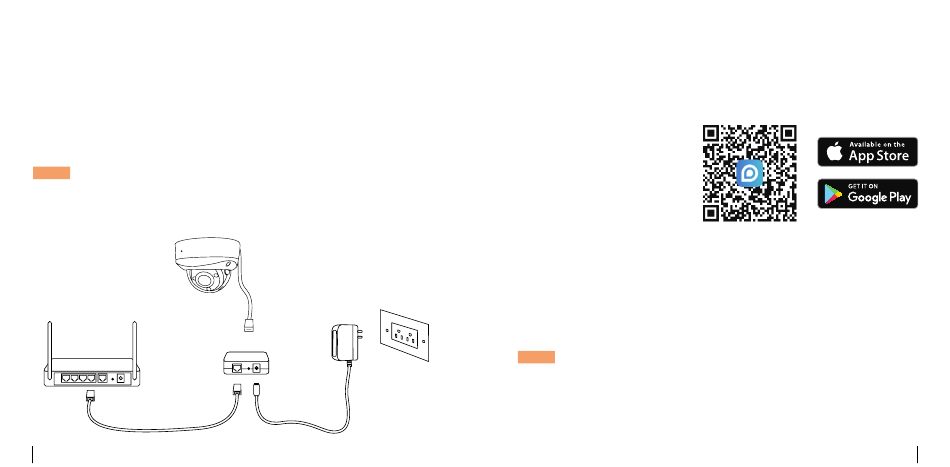

Connection Diagram

Before initial setup, follow the steps below to connect your camera.
1. Connect the camera to a PoE injector with an Ethernet cable.
2. Use the power adapter to power on the PoE injector and connect it to
your router.
NOTE: You can power the camera with a PoE switch, PoE injector, Reolink
PoE NVR or a DC 12V power adapter(not included in the package).
PoE IP Camera
Router
5 English
Ethernet Cable
PoE Injector*
Power Adapter

Set up the Camera

Download and launch the Reolink App or Client software, and follow the
onscreen instructions to finish initial setup.
• On Smartphone
Scan to download
the Reolink App.
• On PC
NOTE:
• If you are connecting the PoE camera to a Reolink PoE NVR, please set
up the camera via the NVR interface.
English 6
