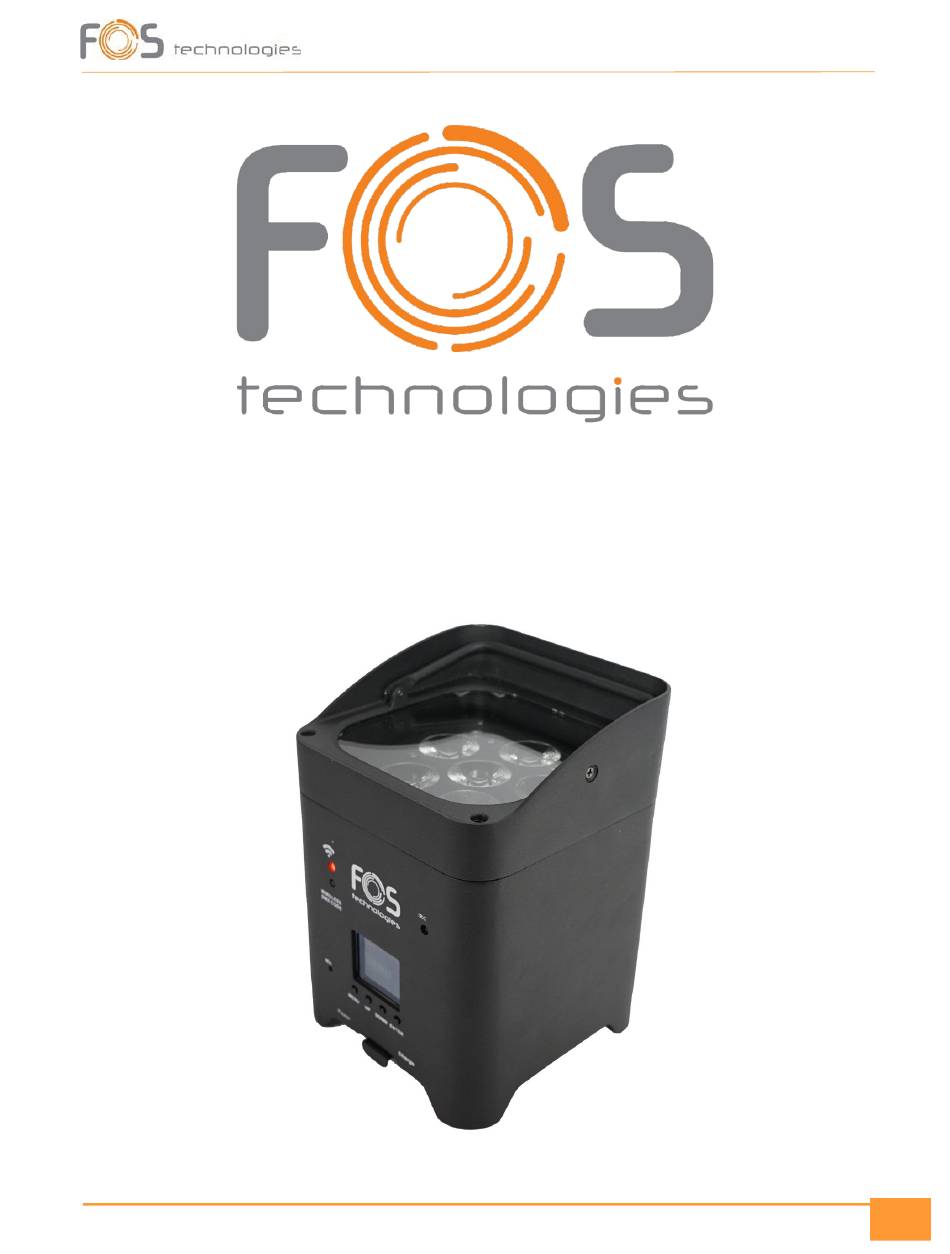

- Page 1 FOS Luminus...
- Page 2 PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 100/240 Volt AC, 50/60 Hz. Light Source: 6x 10 Watt 6 in 1 LEDs (RGBWAUV). Beam Angle: 25°. Control: DMX512, stand alone, WiFi. DMX Channels: 6 & 10 control channels. Protection Class: IP20 (suitable for indoor use only) Battery: Lithium with 8 hours operation in full ON Width: 135 mm Depth: 135 mm...
- Page 3 PROTECTION AGAINST SOLIDS AND WATER Only for IP-rated fixtures The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers. The first number characterizes the protection against harmful effects of solids, the second is rating the water protection.
- Page 4 cables are made from rubber material and will age by long-term UV-emission as sunlight and should be checked frequently. LIMITATIONS OF IP PROTECTION IP-Rating doesn´t mean unlimited outdoor use and protection against any kind of environmental influence! Especially sunlight and included UV will bring accelerated aging. Some fixtures need special parts or processes to fit the rated IP-Protection, like mounting covers or caps or similar.
- Page 5 DMX512: Set the DMX address. Shows: Auto Color* • Auto Fade* • Auto Pulse* • Auto Strobe* • Wifi Mode: On / Off • * Press Enter and with Up & Down buttons adjust the speed of the mode. Sound: •...
- Page 6 Channel Modes 6 Channel 1. Red 2. Green 3. Blue 4. White 5. Amber 6. Ultra Violet Linear dimming from 0 – 100% in all the channels 10 Channels 1. Master Dimmer 2. Red 3. Green 4. Blue 5. White 6.
- Page 7 Then, go in the SHOWS menu and activate the WiFi mode. On your mobile device, go to WiFi and find the network broadcasted by the Luminus projector. The network name will be LED_*** (where the ***, will be a 3-digit number). Connect to this network.
