FOS Phantom BAR IP65
This manual contains important information.
Please read before operating fixture.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phantom BAR IP65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FOS Technologies Phantom BAR IP65

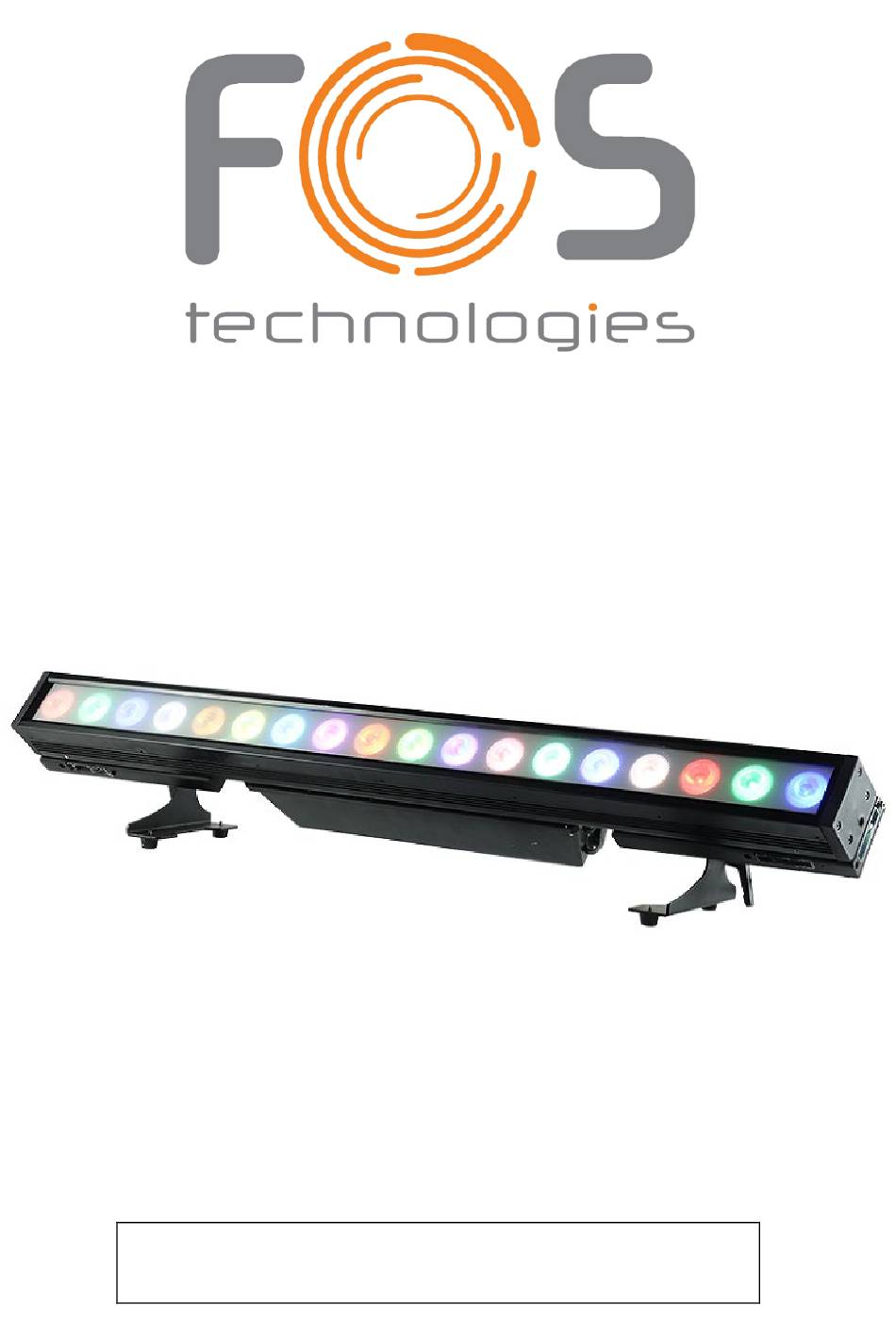

  • Page 1 FOS Phantom BAR IP65 This manual contains important information. Please read before operating fixture.
  • Page 2: Safety Warning

    1 Safety Warning WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions:  non-qualified personnel, not to disassemble the light arbitrarily and lighting accessories inside.  rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected).
  • Page 3: Technical Specifications

    2 Technical Specifications Voltage: 100-240V 50-60Hz  Power consumption: 180W  LEDs: 18 x 10W RGBWA 5in1 LED  LED feature: Each Led pixel individual control  LED Approximate lifespan: 20000 hours  Lens Beam Angle: 20°  With Linear Electronic Frost ...
  • Page 4: Menu Layout

    Product Dimension: 3 Menu Layout 1. Key instruction: Button Meaning Menu/back Enter/confirm ▲ down ▼ 2. All the features selected by pressing the “E” key to confirm 3. Screen Password: E- ▲-▼-▲-▼-E...
  • Page 5 LED Display Menu: Menu Item1 Item2 Item3 DMX Address DMX Address 001--512 MODE DMX mode 92CH 94CH Slave Auto Auto 01-15 speed 01-10 Static Dimmer 000-255 Colour 01-51 000-255 Green 000-255 Blue 000-255 White 000-255 Yellow 000-255 000-255 Strobe 00-20 Setting Display Flip On/Off...
  • Page 6: Dmx Channels Chart

    Logarithmic S-curve Dimmer Response Halogen Stage Theatre White balance Yes/No Factory reset YES/NO System info Firmware Hardware version 18K10W V1.02 Software version 18K10W V3.05 Temperature Temp Unit Celsius Fahrenheit Kelvin LED pad xx°C RDM UID RDM UID xxxxxxxxxxxx Time Usage time information Total time 4 DMX Channels Chart...
  • Page 7 6Channels Channel Value Function 0-255 Electric frost 0-255 Red 0%-100% 0-255 Green 0%-100% 0-255 Blue 0%-100% 0-255 White 0%-100% 0-255 Amber 0-100% 9Channels Value Function 0-255 Dimmer 0-255 Electric frost 0-255 Auto 0-255 Auto speed/Led strobe 0-255 Red 0%-100% 0-255 Green 0%-100% 0-255 Blue 0%-100%...
  • Page 8 0-255 Red18 0%-100% 0-255 Green18 0%-100% 0-255 Blue18 0%-100% 0-255 White18 0%-100% 0-255 Amber18 0-100% 94Channels Value Function 0-255 Dimmer 0-255 Electric frost 0-255 Auto 0-255 Auto speed/Led strobe 0-255 Red1 0%-100% 0-255 Green1 0%-100% 0-255 Blue1 0%-100% 0-255 White1 0%-100% 0-255 Amber1 0-100% 0-255...
  • Page 9 5 Optional base Installation 2lights combine need via a connect part as below, Max. 2lights combine when Vertical no matter use Base stand or via side M8 hole with clamp. Connect parts(optional): How to install the connect part: First: 3 screws tightened by hand or tool in one light Second: 3screws tightened by hand or tool in another light Third: use tool clockwise rotate 90 to hookup in both lights...
  • Page 10 Base Stand(optional): How to install the Base Stand: First step: 3 screws tightened by hand or tool Second step: use tool clockwise rotate 90 to hookup...
  • Page 11  Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period:one year since purchase warranty terms:1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
