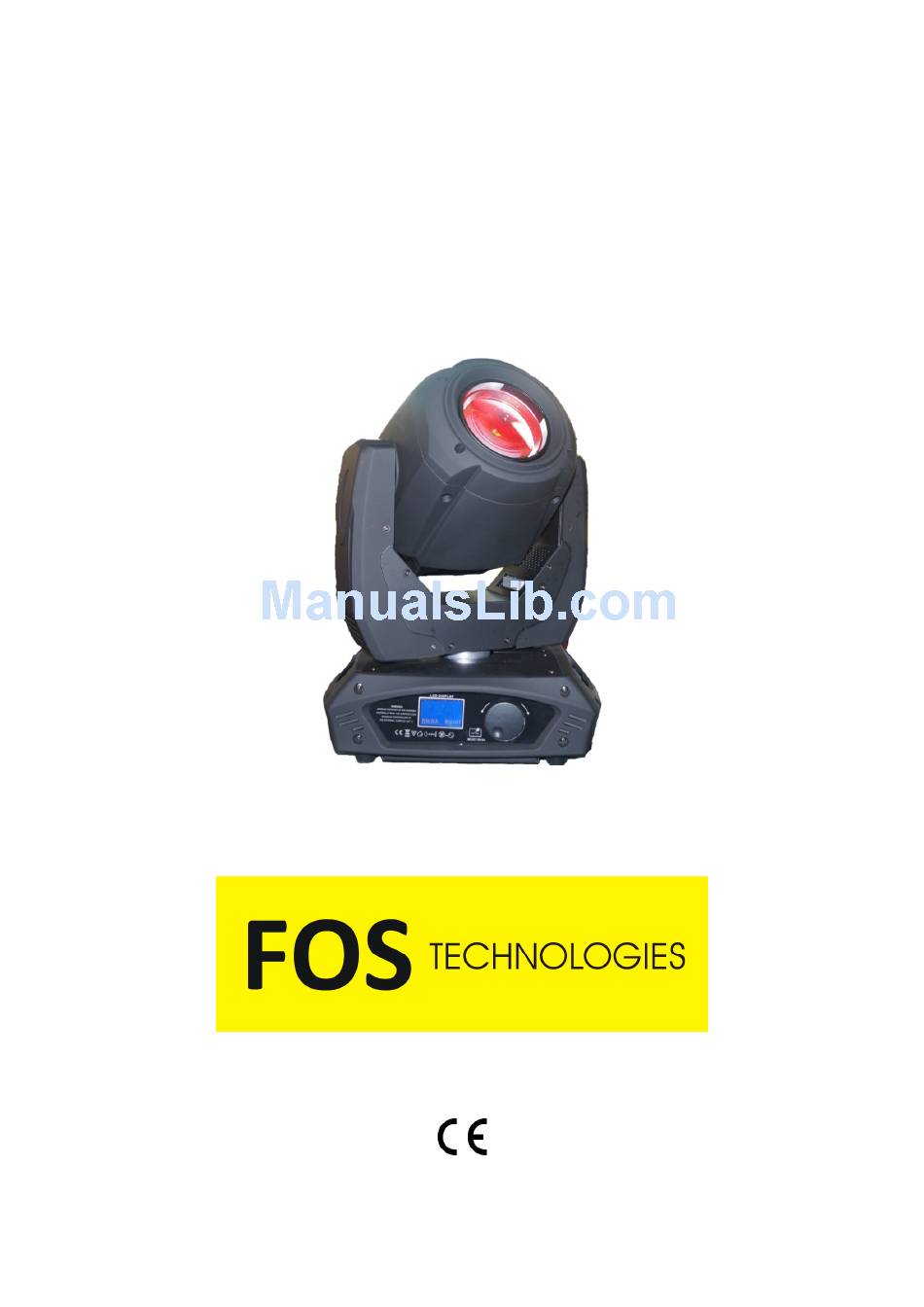

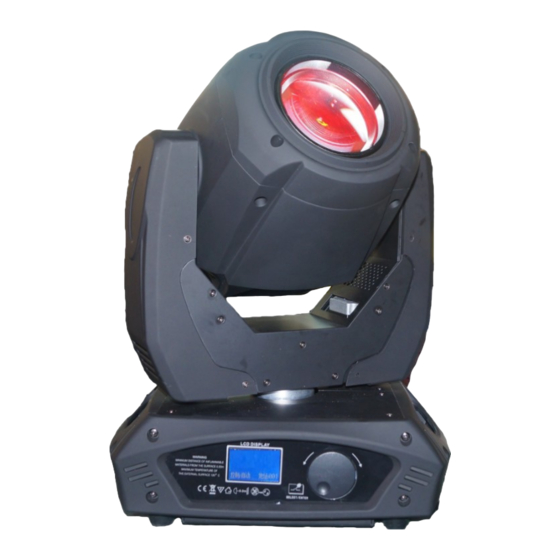

- Page 1 Beam 230W Hybrid USER MANUAL Beam Light Congratulations on purchasing this 230W moving Thank you for extending your trust in our technology!
- Page 2 Voltage :110V/240V AC, 50/60Hz Power Consumption:260W Lamp:7R 230W Osram (DMX on/off) Lumen output:120000LM/10meter Color Temperature:8000K Lens:3-layer optic glass lens Prism:8 Prism rotation Gobo:Gobo wheel with 15 + 1gobos Colors:Color wheel with 13 +1colors,single rotation rainbow effect DMX Channel:20CH Frost function Control:Master-slave mode DMX Mode:Auto mode Head movement:Pan 540º...
- Page 3 -Verify whether any visible damage was caused during transport.lf the power cord.housing or the light are damaged,do not operate the device;contact your specialized dealer immediately. 2. Supply Voltage,Mains Cord and Connection to Mains The handling of supply voltage,mains cords and connections to mains calls for particular care considering the risk from a life-threatening electric shock,the risk of fire and the risk of short circuits please observe the following notes in particular: Products operating on supply voltage should be kept out of the reach of children.Therefore ensure the permanent...
- Page 4 a warm environment it must only be taken into operation once it has reached ambient temperature,since the condensation created by the difference in temperature may destroy the device! Protect the product against dust!Dust may reduce the protective insulation,which may cause fatal electric shocks! The product must be operated at altitudes ranging between 20m below and 3000m above sea level only! The product must not be operated during thunder storms;risk of destruction from surge voltages! The product must be operated at a minimum distance of 1.5m to lit objects only!
- Page 5 During operation,the lamps will reach temperatures of up to 600 C.Touching the lamps may cause serious burns!Objects coming into contact with the lamps during and shortly after operation may catch fire! Disconnect the product from mains prior to installing or before changing a lamp!Allow a lamp to cool for approx.15minutes before exchanging it! Never touch a lamp with bare hands!If damaged or deformed,a lamp must be exchanged! When exchanging the lamp be sure to use suitable lamps only.Lamps with greater performance generate excessive...
- Page 6 01. Lighting reset: 02. Lamp time restore: [password] *Can be set password afterwards to prevent unwanted modifying). 03. Motor Zero: [password] *Restore (can be set password afterwards to prevent unwanted modifying). 04. Exit. 09. Channel data: 01: Shutter [000~255] 02: Dimmer [000~255] 03: Lamp/reset [000~255]...
- Page 7 afterward according to your suggestion 02. Auto run program: [1~9] *Select the program you want to run in certain mode 03. Auto run speed [1~16] *Set running speed for program 04: Exit. 13. Help info: *Include copyright, company information, etc. 14.
- Page 8 60-63 Gobo15 64-67 Gobo16 68-71 Gobo17 72-113 Gobo rotation, forward 114-117 Stop 118-159 Gobo rotation, backward 160-166 Gobo2 Shake (slow to quick) 167-172 Gobo3 Shake(slow to quick) 173-179 Gobo4 Shake(slow to quick) 180-185 Gobo5 Shake(slow to quick) 186-191 Gobo6 Shake(slow to quick) 192-198 Gobo7 Shake(slow to quick) 199-204...
