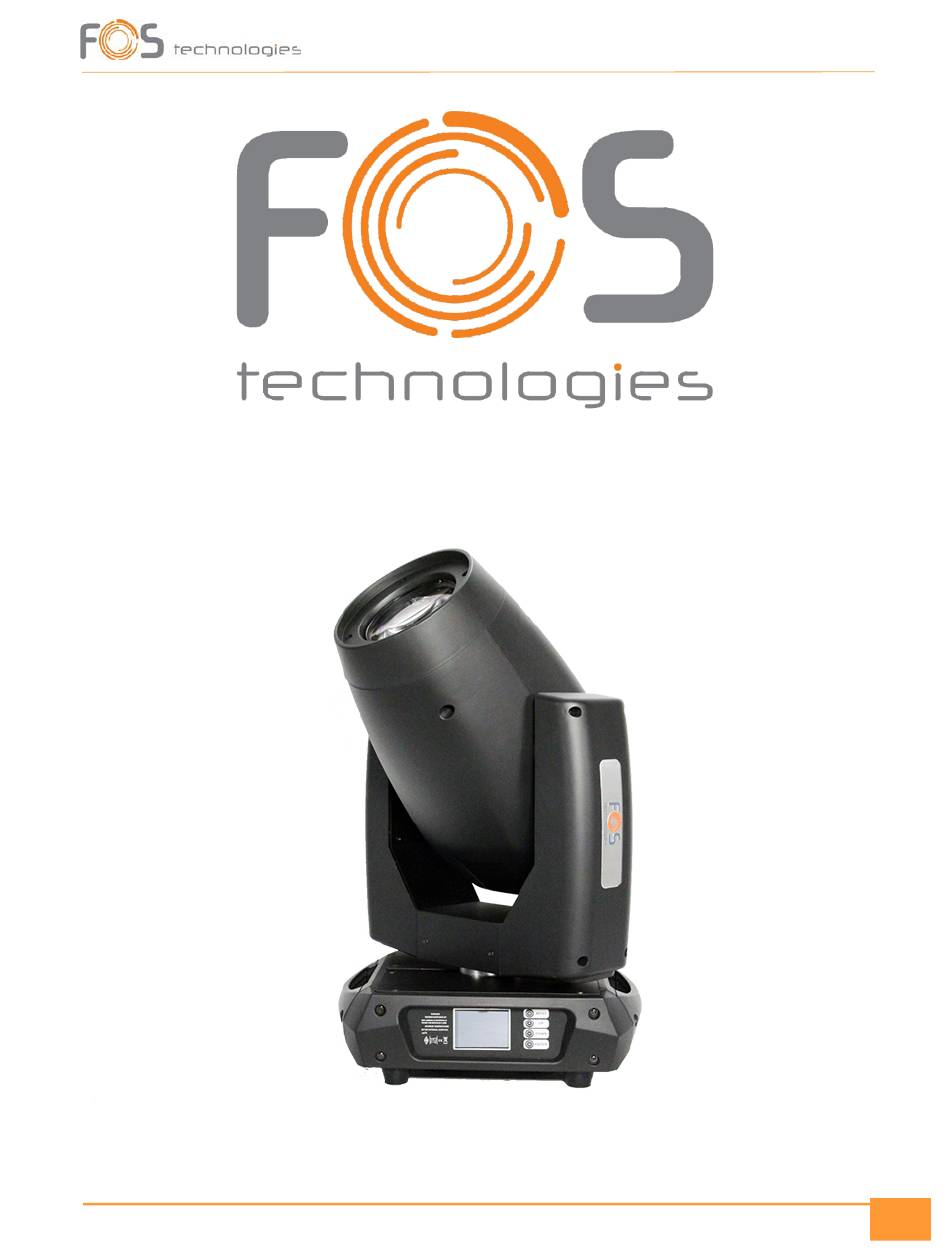

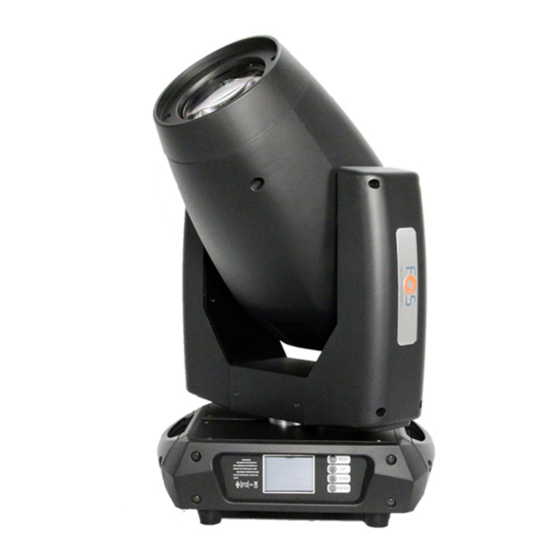

  • Page 1 FOS 17R Hybrid CMY...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATIONS Voltage: 110/240 Volt AC, 50/60 Hz. Power Consumption: 500 Watt. Light Source: 17R, 350 Watt Lumen Output: 150.000 Lumens / 10 meters Optical System: Beam, Spot, Wash modes, zoom range from 2,5 to 32 degrees. Mechanical Effects: 12 fixed gobos, 9 rotating gobos, 2 combinable prisms, frost filter, zoom 2,5° to 32°, motorized focus, mechanical shutter for dimming / strobe.
  • Page 3 earth must always be connected to the ground. Ensure that all parts of the equipment are kept clean and free of dust. PROTECTION AGAINST SOLIDS AND WATER Only for IP-rated fixtures The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers.

  • Page 4: Installation

    Up / Down buttons you’re moving through the sub menu’s options, with Enter, you are confirming your choice. Other than that, the fixture has a touch screen, making the navigation much more fast and easy. The FOS 17R Hybrid CMY offers the following options:...

  • Page 5: Features Menu

    Features menu Run mode: • Auto Wireless • • ChanMode: • • • X Reverse: On / Off Y Reverse: On / Off X Angle: 540 / 360 XY OCcheck: On / Off (Pan / Tilt movement Feedback) SignalClear: On / Off (activates or deactivates the default position when DMX signal is lost) Full Color: On / Off Shortcut: On / Off (activates or deactivates the disks shortest distance between the effects) Manual...

  • Page 6: System Info

    System Info DMX Value: Shows the DMX value of all the DMX channels available on the fixture. OTHER Info: Shows hardware info of the fixture, like the firmware version of each board, temperature and running time. ERROR Info: Shows the errors, if any. Display Setting Brightness: Level 1 to 7 LightDelay: 10 / 20 / 30 / On...

  • Page 7: Channel Modes

    Channel Modes 21 Channels 1. Pan 2. Tilt 3. Pan / Tilt Speed 4. Functions 0 – 100 No Function • 101 – 119 Blackout with Gobo Change OFF** • 120 – 129 Blackout with Gobo Change • ON** • 130 –...
  • Page 8 61 – 80 Green & CTB • • 81 – 110 CTB 111 – 131 CTB & Dewberry • 132 – 160 Dewberry • • 161 – 182 Dewberry & White 183 – 214 White • • 215 – 235 White & Deep Red 236 –...
  • Page 9 105 – 109 Gobo 4 Shake • • 110 – 114 Gobo 5 Shake 115 – 119 Gobo 6 Shake • 120 – 124 Gobo 7 Shake • • 125 – 129 Gobo 8 Shake 130 – 134 Gobo 9 Shake •...
  • Page 10 108 – 115 Gobo 7 • • 116 – 123 Gobo 8 124 – 129 Gobo 9 • 130 – 137 Gobo 1 • • 138 – 145 Gobo 2 146 – 153 Gobo 3 • • 154 – 161 Gobo 4 162 –...
  • Page 11 32 – 63 Shutter Open • • 64 – 95 Synchronous Strobe 96 – 127 Shutter Open • 128 – 143 Closing Pulse • • 144 – 159 Opening Pulse 160 – 191 Shutter Open • • 192 – 223 Flash Effect 224 –...
  • Page 12 183 – 214 CTO 3200 • • 215 – 235 CTO 3200 & UV 236 – 255 UV • 8. Color Wheel 2 0 – 10 Open (White) • 11 – 30 White & Green • • 31 – 60 Green 61 –...
  • Page 13 40 – 44 Gobo 8 • • 45 – 49 Gobo 9 50 – 54 Gobo 10 • 55 – 59 Reducer 1 • • 60 – 64 Reducer 2 65 – 89 Reducer 3 • • 90 – 94 Gobo 1 Shake 95 –...
  • Page 14 50 – 52 Gobo 7 • • 53 – 55 Gobo 8 56 – 59 Gobo 9 • 60 – 67 Gobo 1 • • 68 – 75 Gobo 2 76 – 83 Gobo 3 • • 84 – 91 Gobo 4 92 –...
  • Page 15 18. 8F Prism Rotation & Indexing 0 – 128 Indexing • 129 – 192 CW Rotation • 193 – 255 CCW Rotation • 19. Frost 20. Zoom 21. Focus 22. Shutter: • 0 – 31 Shutter Closed 32 – 63 Shutter Open •...
  • Page 16 7. Color Wheel 1 0 – 10 Open (White) • 11 – 30 White & Pink • 31 – 60 Pink • 61 – 80 Pink & CTB • 81 – 110 CTB • • 111 – 131 CTB & CTO 132 –...
  • Page 17 10 – 14 Gobo 2 • • 15 – 19 Gobo 3 20 – 24 Gobo 4 • 25 – 29 Gobo 5 • • 30 – 34 Gobo 6 35 – 39 Gobo 7 • • 40 – 44 Gobo 8 45 –...
  • Page 18 31 – 34 Gobo 1 • • 35 – 37 Gobo 2 38 – 40 Gobo 3 • 41 – 43 Gobo 4 • • 44 – 46 Gobo 5 47 – 49 Gobo 6 • • 50 – 52 Gobo 7 53 –...

  • Page 19: General Information

    100 – 199 8 Facet Prism • • 200 – 255 Both prisms combined 14. 16F Prism Rotation & Indexing 0 – 128 Indexing • 129 – 192 CW Rotation • 193 – 255 CCW Rotation • 15. 8F Prism Rotation & Indexing 0 –...
  • Page 20 Replacing a fuse: Always disconnect the fixture from main power before replacing a fuse. Use only the appropriate fuse, with the same type and rating. A fuse with different rating, can damage the fixture in case of failure. Risk of electric shock and / or fire: The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust.
