Summary of Contents for FOS Technologies Pixel LINE Driver L006055

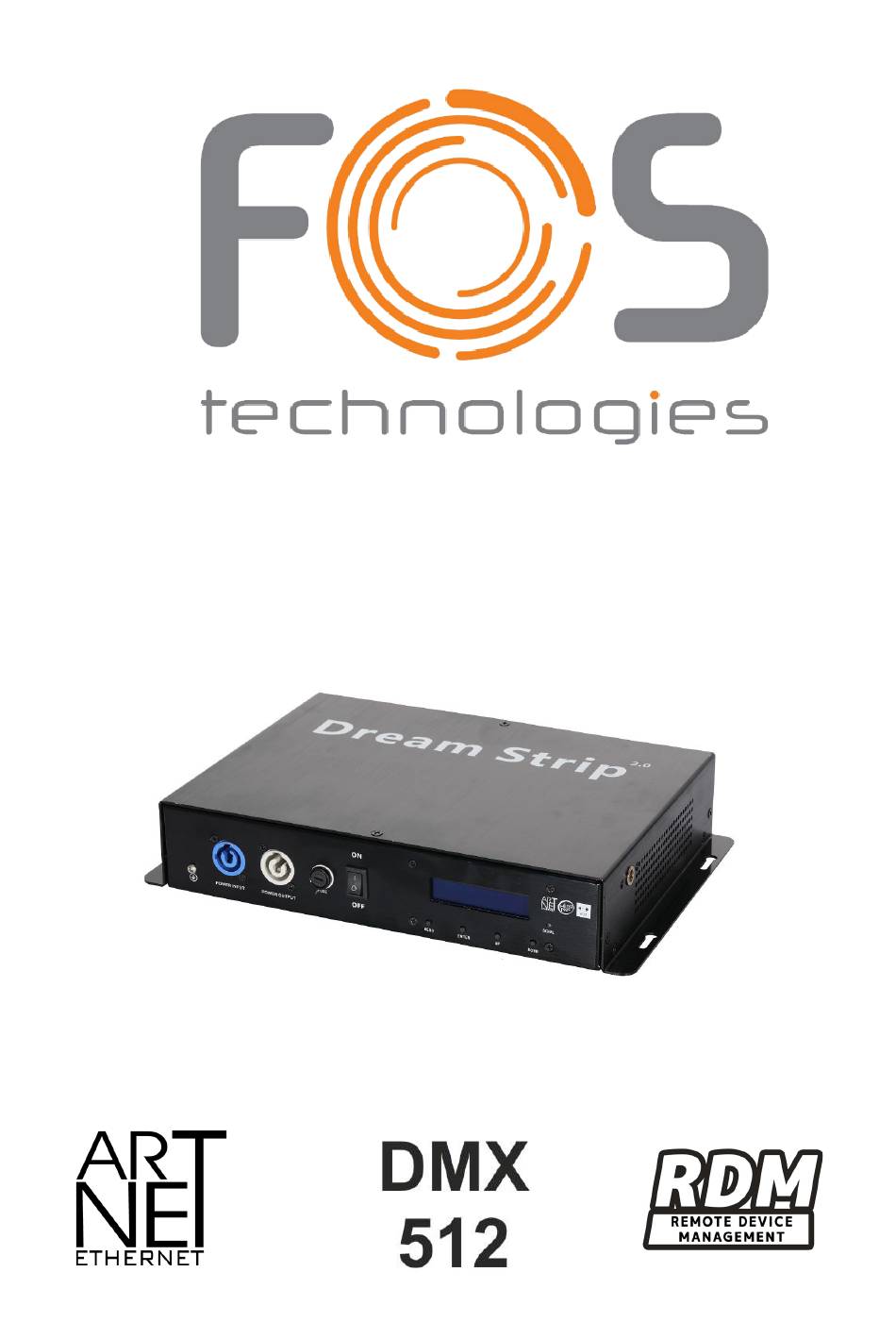

- Page 1 FOS Pixel LINE Driver...
- Page 2 Safety Notes: Read all the following Safety Notes before working with this product. These notes include important information about the installation, usage, and maintenance of this product This icon indicates critical installation, configuration, or operation information. Failure to comply with this information may render the fixture partially or completely inoperative, damage third-party equipment, or cause harm to the user.
-
Page 3: What Is Included
What Is Included Once you receive the product, carefully open the package and make sure all the pieces included are in good condition. The following items should be included in the package: · Pixel Strip Drive · 1.5M CAT-5 Net-cable+1.2M Power Cable ·... -
Page 4: Product Overview
Product Overview:... -
Page 5: Mounting Guidelines
Mounting The pixel-Strip Drive has four (4) mounting points (one on each corner) with 10mm holes to which you can install screws and mount this product directly to almost any flat surface, truss, or other load bearing structure in any orientation. The product may also be installed with clamps for hanging on truss. -
Page 6: Art-Net™ Connection
Signal Connections Art-Net™ Connection Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers large amount of DMX512 data using an etherCON® RJ45 connection over a large network. Connecting Pixel Strip Products to the Power Supply: The Pixel Strip ™Drive uses an RJ45 data connection to link all data ports. You can connect either 4 or Pixel Strips per output on the Pixel Strip Drive The following diagram illustrates how to assemble the data connections... -
Page 7: Power Linking
Each port of Drive can support 4Pcs. Pixel Strip .Make sure the total length of the connecting network cables (RJ45) does not exceed 10 meters. Power Linking The Drive supports power linking. You can power link up to · Seven (7) Drive drives at 120 VAC; or ·... - Page 8 MENU:...
- Page 9 Technical Parameters: Size:204x260x88mm Power Supplier: Auto-ranging 100v to 240v,50/60Hz Output Voltage: 48V Consumption: 500W Connections: RJ45 for Kling-net & Art-net and DMX DMX CH Model: 10CH Model: Channel Description address 0-255 General Dimmer 0-255 Strobe 0-255 0-255 Green...
- Page 10 55CH Model: Channel Description address 0-255 General Dimmer 0-255 Strobe 0-255 Built-in program 1 (multi-color effect. The last one is auto running) 0-255 Built-in program 2(single color effect, can be controlled by channel 9.The last one is auto-running. 0-255 Speed for built-in effects 0-255 Color for built-in effects 0-255...
