Summary of Contents for FOS Technologies PIXEL BAR 18

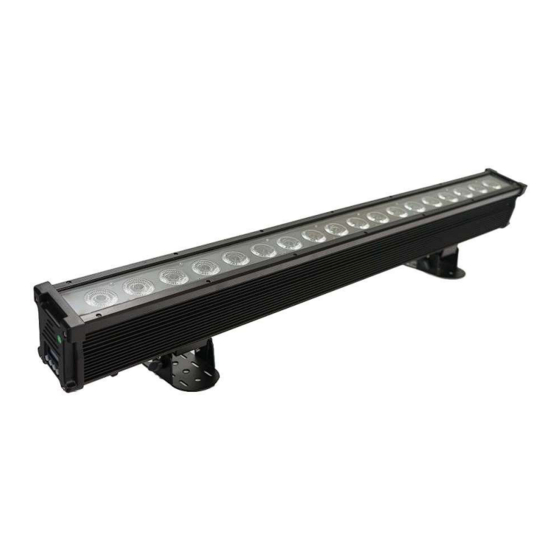

- Page 1 PIXEL BAR 18 18×12W RGBWA 5in1 LED User Manual Please read the instruction carefully before use...
- Page 2 Caution! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Keep this device away from rain and moisture! Make sure it is grounded when using it! Unplug mains lead before opening the housing! For your own safety, please read this user manual carefully before you initial start-up.
- Page 3 Control menu [MENU] Main menu to select or return to the previous menu [UP] Menu selection or parameter increase [DOWN] Menu selection or parameter decrease [ENTER] OK / enter or select sub menu Control Panel Show Function A001 DMX address， （001—512）up/down to change the value 28ch/10ch/100h/90h 29ch/11ch/119ch/108ch choose，up/down to choose CC00...
- Page 4 Channel and Function List 10 Channels Mode: CH NO. Function Instruction Dimmer RGBWA Total Dimming, From dark to brightness Strobe RGBWA Strobe, From dark to brightness 0--25：No effect 26--35：No effect 36--45： Color flowing jump change （Can get running flowing effect by ID stagger，controlled by CH1-CH6）...
- Page 5 CH10 Amber Dimming, From dark to brightness 28 Channels Mode: CH NO. Function Instruction Dimmer RGBWA Total Dimming, From dark to brightness Strobe RGBWA Strobe, From dark to brightness 0--25：No effect 26--35：No effect 36--45： Color flowing jump change （Can get running flowing effect by ID stagger，controlled by CH1-CH6）...
- Page 6 White dimmer White total dimming from dark to brightness CH10 Amber dimmer Amber total dimming from dark to brightness CH11 LED 1 dimmer RGBWA Dimmer CH12 LED 2 dimmer RGBWA Dimmer ........................CH28 LED 18dimmer RGBWA Dimmer 90 Channels Mode: CH NO.
- Page 7 0--30： No effect 31--45：Running effect1 ,controlled the basic brightness by CH1,CH6-CH11 46--60：Running effect 2 ,controlled the basic brightness by Function choose 2 CH1,CH6-CH11 ....240--255：Running effect 15,controlled the basic brightness by CH1,CH6-CH11 Flowing effect （0--127：Left side flowing effect；128--255：Right Function choose 3 side flowing effect Function speed Function speed ,From slow to fast...
