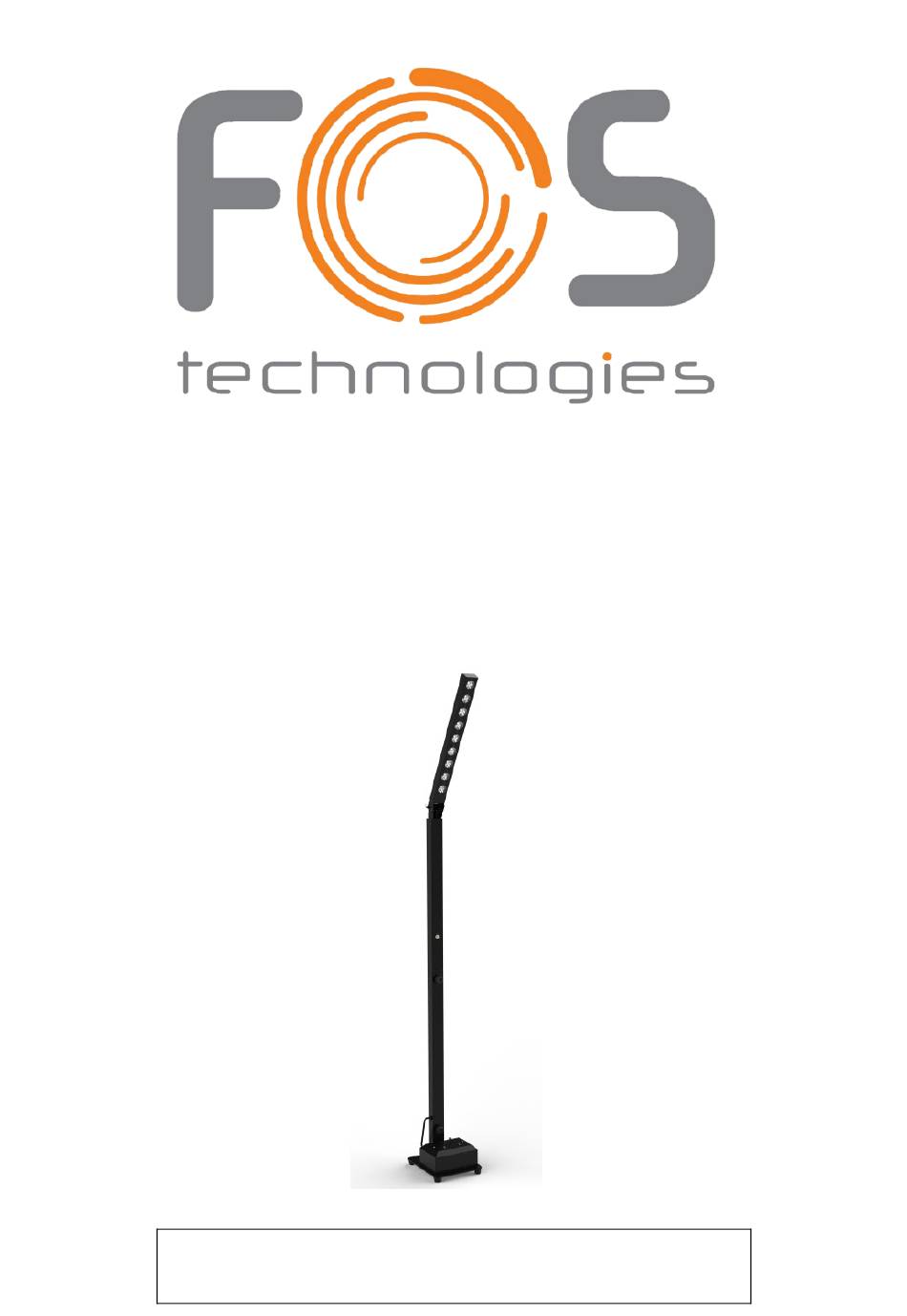

- Page 1 FOS Luminus Pole User Manual This manual contains important information. Please read before operating fixture.
-
Page 2: Security Tips
SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: Rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected). Fixtures used in ambient temperature: -15 ℃ -40 ℃, the highest temperature of the surface of the lamp: 60 ℃. - Page 3 Battery Power: 12V, 25Ah. Wireless effective distance: 400 meters. Net weight: 11kg Production function: DMX512 console control, which can be controlled online through 2.4G wireless mode. Mobile Wi-Fi operation control, support Android Android 2.3 and above, Apple iOS 4.3 and above. Mobile APP name: LED LAMP, Language: The software automatically ...
- Page 4 turn off the display backlight after 5 seconds, 10 seconds, 15 seconds Infrared remote control function setting: can be turned on or off through the menu setting. Onboard Menu MENU UP DOWN ENTER Operate Menu Menu Item1 Item2 Item3 "Choose Pattern"...
- Page 5 "R-STRO" 0-20 "G-STRO" 0-20 "B-STRO" 0-20 "A-STRO" 0-20 (Sensitivity) "Sound" "SOUND1" 0-100 "SOUND2" 0-100 "SOUND3" 0-100 (Options) "User Settings" " Channel" 006/010 (Addressed) " DMX512" 001-512 (Mode) " Slave" " WiFi" WiFi Icon "System Settings" "1.white Balance" (Color) (Brightness) 127-255 GREEN 127-255 BLUE...
- Page 6 "Informations" "1.LED" (Temperature) 0-99℃ "2.WORK" (Hours) 001-999 "3.SOFT" (Version) "4.LEVEL" (Percent) 10-100 1. 3-inch OLed display: display menu functions and parameters; 2.Button definition MENU Main menu function selection/exit submenu Select previous menu/parameter increment DOWN Select the next menu/parameter decreasing ENTER Recognize the selected function / enter the next menu Switch machine operation:...
- Page 7 When the power is on, press and hold the MENU button, after 3 seconds, the display will turn off and the power will be cut off. "Choose Pattern" selection pattern Select “Choose Pattern” and press the ENTER button to confirm. The display will show the corresponding function menu.
- Page 8 mode state. After selection, the parameters will be automatically saved. When the host signal is received, the interface will display "Connection" prompt, if the host signal is disconnected, the interface will display "Disconnect" prompt, if you press ENTER Or press the MENU button, the display will exit to the previous menu mode.
- Page 9 Master and Slave machine built-in program control When multiple fixtures are connected in the main and auxiliary mode, except for the first one, select "Slave" (slave mode) for the other fixtures behind, press the ENTER button to confirm, and "OK!" will be displayed. Indicates that it has entered the slave receiving mode state.
-
Page 10: Dmx Channel Sheet
When the connection is successful, exit the mobile phone function settings and open the “Led LAMP” application software, then the corresponding mode operation can be carried out. App interface and mobile phone operating system may be different. DMX CHANNEL SHEET 6CH mode Value Function... - Page 11 0-255 Amber 0-255 10CH mode Value Function 0-255 Master dimmer, CH9(0~9) Strobe close 10-255 Strobe open, from slow to fast 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Amber 0-255 Dimmer mode 10-29 Choose color: CH10 choose color 30-49 Jump change: CH10 control speed 50-69 Gradual change: CH10 control speed 70-89...
- Page 12 FIXED EQUIPMENT Please fasten the fixture clamp before hanging. The clamp can be fastened by the little hole in the middle of the bracket, then tie with a safety belt. The loading capacity of the safety belt should be 10 times than the weight of the fixture itself.
-
Page 13: Maintenance
Maintenance Problems Check list Trouble Shooting The fixture do 1. If your power as same as the Make sure not work input of the machine. voltage. 2. If the fuse was broken. 2. Replace the same fuse. LED dimmed If your power us same as the Make sure the voltage input of the machine input. - Page 14 as well as we must improve the product. Note: Based on our company continue to improve the product, the statement containing data may have changed, and will not notice the change. Company retains its right to change specifications related when product improved.
