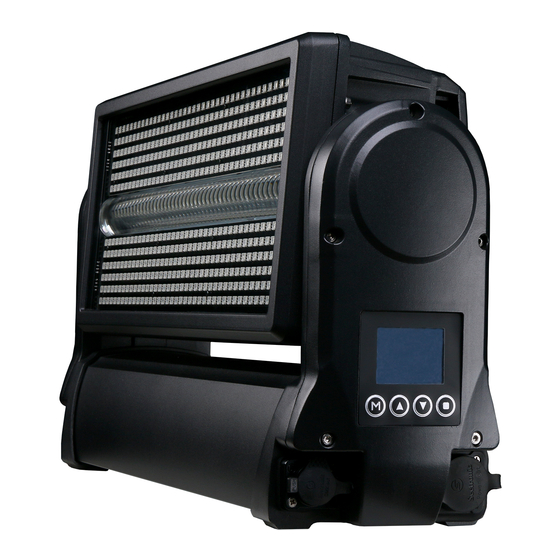

LED Strobe Wash Outdoor Moving Light
This product manual contains important information about the safe
installation and use of this projector. Please read and follow these instructions
carefully and keep this manual in a safe place for future reference.
User manual
Please read the instructions carefully before use
FOS CYCLONE PRO D2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYCLONE PRO D2 and is the answer not in the manual?

Questions and answers

Related Manuals for FOS Technologies CYCLONE PRO D2

Summary of Contents for FOS Technologies CYCLONE PRO D2

  • Page 1 FOS CYCLONE PRO D2 LED Strobe Wash Outdoor Moving Light This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Dimension .................... 3 2. Safety Information ................3 3. Preparing for installation ............... 5 4. Installation ................... 6 5. Connecting AC Power ................6 6. Configuring the fixture ................7 7. Connecting to a DMX control device ............8 8.

  • Page 3: Dimension

    1. Dimension 2. Safety Information WARNING! Read the safety precautions in this section before unpacking, installing, powering or operating this product. This luminaries are multi-environmental fixtures with an IP-rating of 65, intended for professional use only. They are not suitable for household use. Review the following safety precautions carefully before installing or operating the fixture.
  • Page 4 WARNING! Risk of electric shock. Always power off/unplug the fixture before removing any covers. ⚫ Ensure that the power is turned off when connecting the fixture to the AC ⚫ mains supply. Ensure that the fixture is electrically connected to earth (ground). ⚫...

  • Page 5: Preparing For Installation

    WARNING! Take measure to prevent personal injury. Do not look directly at the light source from close range. ⚫ Take precautions to prevent injury due to falls when working at height. ⚫ For permanent installation, ensure that the fixture is securely fastened to a ⚫...

  • Page 6: Installation

    4. Installation The fixture may be installed in any orientation, but if installed horizontally with a downward beam-angle, water can potentially pool in the fan wells. Under normal operation the moisture will evaporate. However, in locations with high rainfall, you may wish to fabricate a rain shield above the fixture, or modify the position and orientation of the fixture to minimize pooling.

  • Page 7: Configuring The Fixture

    4 fixtures are connected through the same type C, 10A circuit breaker. 7 fixtures are connected through the same type C, 16A circuit breaker. The fixture must be grounded/earthed and be able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.

  • Page 8: Connecting To A Dmx Control Device

    Setting a static color manually The fixture can be configured to display a predefined and static color using the “Manual Color” (see “Control menu” on page 13). It may suit your needs when you without a DMX controller to do the color mixing.

  • Page 9: Configuring The Fixture For Dmx Control

    8. Configuring the fixture for DMX control About DMX The fixture can be controlled using signals sent by a DMX controller on a number of channels (which varies depending on the DMX mode that has been set). The first channel used to receive data from a DMX control device is known as the DMX start address.

  • Page 10: Cleaning

    Setting the DMX address The DMX address can be seen on the main screen. To change the address setting, press the up arrow to increase the address, or the down arrow to decrease the setting. When the desired address is displayed, press Enter to save the setting.

  • Page 11: Dmx Protocols

    10. DMX protocols Configuring DMX is described “Setting the DMX mode” on page 10. 7 Channel mode Channel Name Description Value 0-255 Tilt Movement Tilt Beam Dimmer 0-255 Beam Intensity No Strobe 6-42 Strobe Mode 1 43-85 Strobe Mode 2 Beam Strobe Mode 86-128 Strobe Mode 3...
  • Page 12 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214 Strobe Mode 5 215-255 Strobe Mode 6 Reserved Reserved Channel 0-15 Beam Off 16-57 Beam Macro 1 58-99 Beam Macro 2 Beam Macro 100-141 Beam Macro 3 142-183 Beam Macro 4 184-225 Beam Macro 5 226-255...
  • Page 13 15 Channel mode Channel Name Description Value 0-255 Tilt Movement Tilt 0-255 Tilt Fine Movement Tilt Fine Beam Dimmer 0-255 Beam Intensity No Strobe 6-42 Strobe Mode 1 43-85 Strobe Mode 2 Beam Strobe Mode 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214 Strobe Mode 5...
  • Page 14 Plate Macro 51 Plate Macro Color 0-255 Plate Macro Color Plate Macro Speed 0-255 Speed From Slow To Fast Tilt Speed 0-255 Tilt Speed From Fast To Slow Dimmer Speed From Fast To Dimmer Speed 0-255 Slow 42 Channel mode Channel Name Description...
  • Page 15 Plate Strobe 0-255 Plate Strobe Plate Macro Off Plate Macro 1 10-14 Plate Macro 2 Plate Macro 15-19 Plate Macro 3 … Plate Macro … 250-254 Plate Macro 50 Plate Macro 51 Plate Macro Color 0-255 Plate Macro Color Plate Macro Speed 0-255 Speed From Slow To Fast RGB Dimmer...
  • Page 16 43-85 Strobe Mode 2 86-128 Strobe Mode 3 129-171 Strobe Mode 4 172-214 Strobe Mode 5 215-255 Strobe Mode 6 Reserved 0-255 Reserved Channel 0-15 Beam Off 16-57 Beam Macro 1 58-99 Beam Macro 2 Beam Macro 100-141 Beam Macro 3 142-183 Beam Macro 4 184-225...

  • Page 17: Control Menu

    Plate Pixel 1 Green 0-255 Plate Pixel 1 Green Dimmer Plate Pixel 1 Blue 0-255 Plate Pixel 1 Blue Dimmer … … … … Plate Pixel 8 Red 0-255 Plate Pixel 8 Red Dimmer Plate Pixel 8 Green 0-255 Plate Pixel 8 Green Dimmer Plate Pixel 8 Blue 0-255 Plate Pixel 8 Blue Dimmer...
  • Page 18 Level 1 Level 2 Description DMX Address 001-512 Set DMX address Address DMX_CH7 7 channels DMX mode DMX_CH14 14 channels DMX mode Channel DMX_CH42 42 channels DMX mode Mode DMX_CH15 15 channels DMX mode DMX_CH43 43 channels DMX mode DIM1 Dimmer mode 1 DIM2 Dimmer mode 2...

  • Page 19: Specification

    12. Specification Strobe Panel LEDs LED Type: 5050 0.5W RGB 3in1 LEDs LED Count: 480 LED Colors: RGB LED Segments: 8 (2 x 4) Strobe Tube LEDs LED Type: 3535 5W 6500K LEDs LED Count: 144 LED Colors: Cool-White LED Segments: 4 Movement Resolution: 8-16 Bit Tilt (Degrees): 185°...
  • Page 20 Connectors Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out Power Input: Seetronic PowerCON TRUE1 In/Out Operating Conditions Mains voltage: 100-240V AC / 50-60Hz Power: 1000W Maximum ambient temperature: -30° C / 86° F, 50° C / 122° F Operating Position: any Mounting Options Hanging: Omega-Bracket Safety wire attachment: foldout eyelets...
