- Page 1 FOS Luminus BAR IP65 User’s Manual...
-
Page 2: General Safety Tips
This manual contains important information. Please read before operating fixture. 1 General safety tips WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: non-professionals, not to disassemble the light arbitrarily and lighting accessories inside. -
Page 3: Technical Specifications

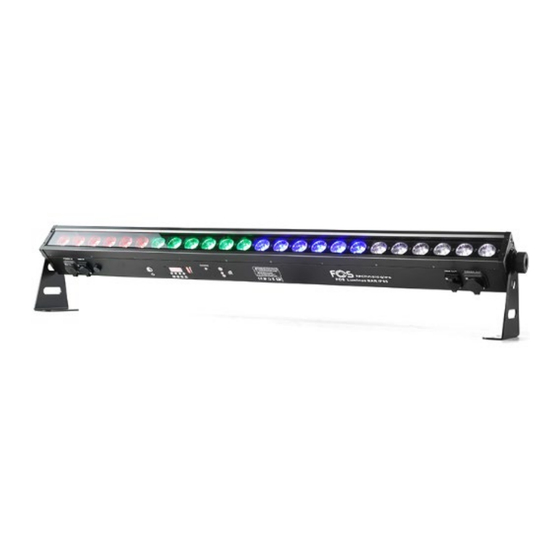

2 Technical Specifications Power Supply: AC 100-240V/50-60Hz Power consumption:100W Light source: 24pcs*4w LED RGBW 4in1. LED feature: Create dazzling effects with 2 /8 zones of individual control. Beam Angle: 25 degrees. Dimmer: 0-100% dimmer Strobe rate:0-24 Hz Working Environment: -20℃-40℃ IP rate: IP65 DMX Channels:6/8/14/50ch Control Mode: DMX512, Master-slave, Sound, Auto, remote, wireless. -
Page 4: Dmx Channel Modes
3 On-board Menu layout Operate menu : Addr A001-A512 DMX Address selection Chnd 6/8/14/50ch Channel selection Slnd MAst/d512/SlAU Master slave selection Soun So 0-16 Sound control effect selection Se 99-0 Sound control sensitivity adjustment Auto Au 0- Au16 Auto effect selection SP 0-SP 9 Auto effect speed adjustment Colo... - Page 5 8 Channel Value Function 0-255 All dimming 0-255 Strobe 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 White 0-100% 0-255 Color Chase, See Color Chase Table 0-255 Chase Speed Slow To Fast 14 Channel Value Function 0-255 All dimming 1 0-255 Strobe 0-255...
- Page 6 0-255 Strobe1 0-255 Red 1 0-100% 0-255 Green 1 0-100% 0-255 Blue 1 0-100% 0-255 White 1 0-100% 0-255 All dimming 2 0-255 Strobe2 0-255 Red 2 0-100% 0-255 Green 2 0-100% 0-255 Blue 2 0-100% 0-255 White 2 0-100% 0-255 All dimming 3 0-255...
- Page 7 0-255 Red 6 0-100% 0-255 Green 6 0-100% 0-255 Blue 6 0-100% 0-255 White 6 0-100% 0-255 All dimming 7 0-255 Strobe7 0-255 Red 7 0-100% 0-255 Green 7 0-100% 0-255 Blue 7 0-100% 0-255 White 7 0-100% 0-255 All dimming 8 0-255 Strobe8 0-255...
-
Page 8: Installing The Fixture
128-142 Color chase 09 143-157 Color chase 10 157-172 Color chase 11 173-187 Color chase 12 188-202 Color chase 13 203-217 Color chase 14 218-232 Color chase 15 233-247 Color chase 16 248-255 Sound effect 1-16 5 Installing the fixture Please fasten the fixture clamp before hanging. -
Page 9: Maintenance & Troubleshooting
this circle circuit plug can avoid the signal flash phenomena of signal DMX512 during the transmission. 7 Maintenance/Troubleshooting Problems Check list Trouble Shooting The fixture 1. If your power as same as the input 1. Make sure the voltage. does not work. of the machine. - Page 10 Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: iption: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and...
