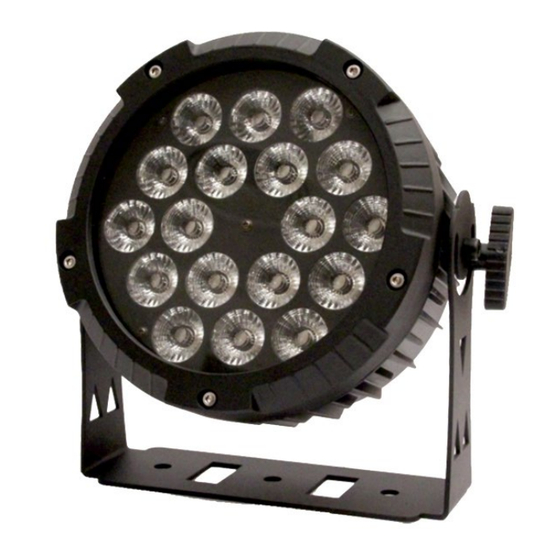

- Page 1 FOS PAR 18X10WPRO IP65 This manual contains important information. Please read before operating fixture.
-
Page 2: Security Tips
1. SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: non-professionals, not to disassemble the light arbitrarily and lighting accessories inside. rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected). - Page 3 2 TECHNOLOGY REFERENCE Input voltage: A C 100-240V, 50-60Hz 18pcs *15W RGBW 4-IN-1 high power LED Beam Angle: 25 degree Channel : 4/8 CH Life Time: 50,000 hours Dimmer: 0-100% with regulated constant color control ...
- Page 4 Operate Menu 1-512 Addr 4CH/8CH Chan 0-255 Stat Green 0-255 Blue 0-255 White 0-255 Strobe 0-20 Aut1 Speed 1-9 Auto Aut2 Speed 1-9 Aut3 Speed 1-9 SC(0-9) Sou1 Soun Sou2 SC(0-9) Yes/No Rest...
-
Page 5: Dmx Channel Sheet
4 DMX CHANNEL SHEET 8Channel Function Value 0-255 Total Dimmer 0-100% 0-255 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 White 0-100% Open 6-255 Strobe (from slow to fast ) Control CH8(52-200) speed, from slow to fast 0-255 Control CH8(201-255) sound sensitivity 0-51 No function 52-100... - Page 6 5 FIXED EQUIPMENT Please fasten the fixture clamp before hanging. The clamp can be fasten by the little hole in the middle of the bracket, then tie with a safety belt. The loading capacity of the safety belt should be 10 times than the weight of the fixture itself.
-
Page 7: Maintenance
7 Maintenance Problems Check list Trouble Shooting The fixture do 1. If your power as same as the input 1. Make sure the voltage. not work of the machine. 2. Replace the same fuse. 2. If the fuse was broken. LED dimmed If your power us same as the input Make sure the voltage... - Page 8 Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
