Auto-scanning with digital control color display monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

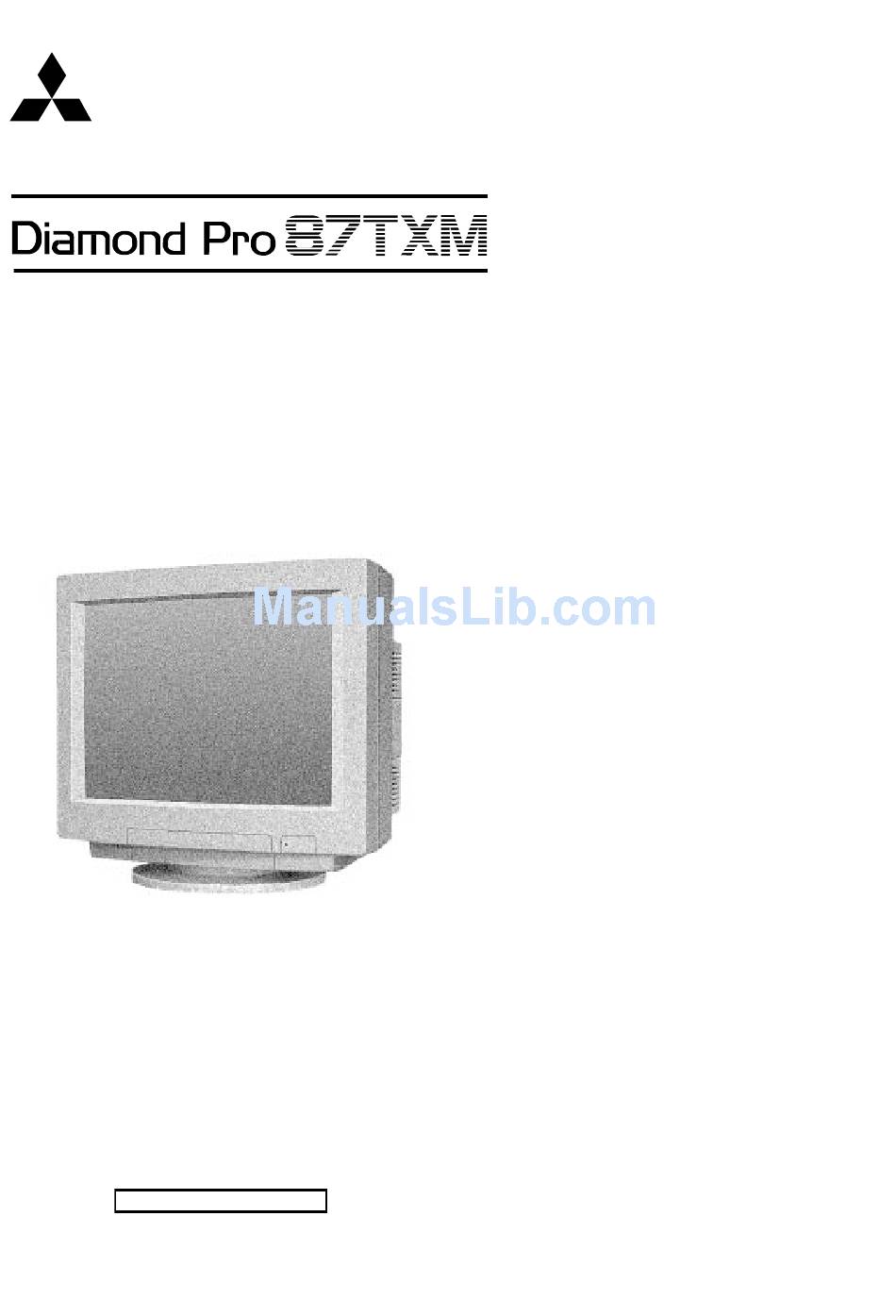

MITSUBISHI
AUTO-SCANNING WITH DIGITAL CONTROL
COLOR DISPLAY MONITOR
TFM8705SKHKW
MODEL
USER'S GUIDE
For future reference, record the serial
number of your display monitor in the
space below:
SERIAL No.
The serial number is located on the rear
cover of the display.

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Diamond Pro 87TXM

Summary of Contents for Mitsubishi Diamond Pro 87TXM

  • Page 1 AUTO-SCANNING WITH DIGITAL CONTROL COLOR DISPLAY MONITOR TFM8705SKHKW MODEL USER'S GUIDE For future reference, record the serial number of your display monitor in the space below: SERIAL No. The serial number is located on the rear cover of the display.
  • Page 2 The power cord provided with this monitor is designed for safety and must be used with a properly grounded outlet to avoid possible electrical shock. Do not remove the monitor cabinet as this can expose you to very high voltages and other hazards.
  • Page 3 89/336/EEC EMC Directive This product is not designed for use in life support devices and Mitsubishi Electric corporation makes no representation to the contrary. Life support devices are those devices which are used to measure, diagnose, or evaluate the tissue, systems or functions of the human body;...
  • Page 4 Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and to the further development of environmentally-adapted electronic products. Why do we have environmentally-labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment.
  • Page 5 In and after the middle of this page, you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from: TCO Development Unit S-114 94 Stockholm Sweden Fax: +46 8 782 92 07 E-mail (Internet): development@tco.se Current information regarding TCO'95 approved and labelled products may also be obtained via the Internet, using the address:...

  • Page 6: Table Of Contents

    7.1 Monitor Signal Input Connector (DB9-15P) ... 33 7.2 Serial Interface Input Connector (DIN-8P) For Serial Interface Function .. 33 7.3 Signal Cable SC-B102 ... 34 7.4 Macintosh Adapter AD-A205 ... 35 Note : This manual is designed for use with Diamond Pro 87TXM color display monitor.

  • Page 7: Introduction

    INTRODUCTION Congratulations on your purchase of the Diamond Pro 87TXM high resolution color monitor. Mitsubishi designed this monitor to provide you with years of reliable trouble-free operation. Once again, thank you for selecting our product and welcome to Mitsubishi! Features The Diamond Pro 87TXM is a 45cm/17"(40cm/16.0"...

  • Page 8: Internal Preset Memory Capability

    To minimize adjustment needs, the factory has preset popular display standards into the monitor, as shown in Table 1. If any of these display standards are detected, the picture size and centering are automatically adjusted. All of the factory presets may be over- written by adjusting the user controls.

  • Page 9: Power Management Function

    15W. When the monitor is in suspend mode, the screen is off and the power indicator will blink for 2 seconds of On-time and 2 seconds of Off time. After the vertical sync signal is restored, the picture will be displayed within a few seconds.

  • Page 10: Location Considerations

    When setting up and using the monitor, keep the following in mind: For optimum viewing, avoid placing the monitor against a bright background or where sunlight or other light sources may reflect on the display area of the monitor; place the monitor just below eye level.

  • Page 11: Unpacking

    Screen Position Adjustment Adjust the tilt and rotation of the monitor by placing your hands at opposite sides of the case, as shown in Figure 2. You can adjust the monitor 90 degrees right or left, 15 degrees up or 5 degrees down, as shown below.

  • Page 12: 1.9 Quick Operation Chart

    To summarize the steps in connecting your computer and adapter with Diamond Pro 87TXM color monitor and setting the necessary controls and switches, refer to the chart below. Connect the power cord to the Diamond Pro 87TXM color monitor and the signal cable between the Diamond Pro 87TXM and the graphics adapter.

  • Page 13: Connecting The Monitor

    CONNECTING THE MONITOR On the back of the monitor are four plug-in connections: one for the AC power cord, DB9- 15P and BNC Connector for video and a DIN8P connector for the optional serial interface kit. AC Power Connection One end of the AC power cord is connected into the AC power connector on the back of the monitor.

  • Page 14: Connecting To An Apple Macintosh Centris, Quadra, And

    Macintosh video port on the CPU or on the video board. Connect the sub-miniature 15-pin (DB9-15P) end of AD-A205 Adapter to the SC-B102 cable (computer). Connect the monitor end of the SC-B102 cable to the DB9-15P receptacle on the back of the monitor. Power on the Macintosh, then the monitor.

  • Page 15: 2.2.3 Connecting To An Unix Workstation & Third Party Graphics Card

    Connect the computer end of the SC-B102 cable or “75 ” coaxial cable to the output connector on the CPU, or on the video board. Connect the monitor end of the SC-B102 cable or “75 ” coaxial cable to the DB9-15P receptacle or the BNC receptacles on the back of the monitor.
  • Page 16 (1) IN CASE OF A COMPOSITE SYNC ON GREEN VIDEO SIGNAL (SYNC ON GREEN): Connect the R, G and B video signals to the BNC receptacles on the back of the monitor. Signal Serial (2) IN CASE OF EXTERNAL COMPOSITE SYNC SIGNAL: Connect the R, G and B video signals and the Composite sync signal to BNC receptacles on rear panel, respectively.

  • Page 17: User Controls

    USER CONTROLS See Figure 6 and 7 for the location of the following user controls and indicators. Each control is identified by number and is described individually. FRONT 4. OSD OFF BUTTON RESET RESET OSD OFF OSD OFF 3. RESET BUTTON 5.
  • Page 18 REAR AC POWER CONNECTION SIGNAL INPUT CONNECTOR (DB9-15P) Signal Serial 8. SERIAL INTERFACE CONNECTOR (DIN-8P) NOTE DB9-15P and BNC receptacle cannot be used simultaneously (at the same time). If you will use DB9-15P, do not connect any of the BNC receptacles. SIGNAL INPUT CONNECTOR(BNC) HD/COMP Figure 7.

  • Page 19: Control Names

    DEGAUSS BUTTON: A push type button that is used to eliminate possible color shading or impurity. SERIAL INTERFACE CONNECTOR: The monitor has a DIN-8P connector for connecting to the computer when using the optional serial interface kit. For information about connecting the serial interface, please refer to the instructions included with the serial interface kit.

  • Page 20: Function Controls

    Provides the blue-color balances for the display. (17) POWER-SAVE (ON/OFF) When adjusting ON, reduces the power consumption of the monitor when not in use. (18) MOIRE-CLEAR (ON/OFF) When adjusting ON, the moire level on the screen can be decreased by the MOIRE- CLEAR LEVEL.
  • Page 21 Adjusts the pincushioning at the bottom corners of the screen. (23)CLAMP PULSE POSITION Use this function to eliminate excessive green or white background that may occur when both Sync-On-Green and external sync signals are applied to the monitor. (24)PURITY Adjusts the purity of the screen. (25)VIDEO LEVEL...

  • Page 22: Normal Mode

    Press the select buttons to choose one of the following controls. When the indicator of a function symbol comes on the screen and changes to blue, that control is active and can be adjusted by the adjust buttons. The monitor automatically memorizes all adjustments.
  • Page 23 FUNCTION AND OSD (3) H-SIZE (Horizontal Size) H-SIZE (4) H-PHASE(Horizontal Position) H-PHASE (5) V-SIZE(Vertical Size) V-SIZE (6) V-POSITION (Vertical Position) V-POSI Press the Minus Adjust Press the Plus Adjust Button: Button: To narrow the width of To expand the width the image on the of the image on the screen.
  • Page 24 FUNCTION AND OSD (7) PCC-AMP (Pincushion or Bow Amplitude) PCC-AMP (8) PCC-PHASE PCC-PHASE (9) PIN-BALANCE PIN-BAL (10) KEY-BALANCE KEY-BAL Press the Plus Adjust Press the Minus Adjust Button: Button: To expand the center To collapse the center of of the image. the image.
  • Page 25 FUNCTION AND OSD (11) ROTATION ROTATION (12) H-STATIC (Horizontal Static Convergence) H-STATIC R G B R G B (13) V-STATIC (Vertical Static Convergence) V-STATIC Press the Plus Adjust Press the Minus Adjust Button: Button: To rotate to the left. To rotate to the right. Press plus and minus buttons together, to restore to factory preset level.
  • Page 26 (14) COLOR 1-RED, COLOR 2-RED, COLOR 3-RED SELECT BALANCE BALANCE COLOR-1 COLOR-1 Press the select buttons (up or down) to choose COLOR-1 R. (15) COLOR 1-GREEN, COLOR 2-GREEN, COLOR 3-GREEN SELECT BALANCE COLOR-1 COLOR-1 Press the select buttons (up or down) to choose COLOR-1 G.
  • Page 27 (17) POWER-SAVE (ON/OFF) Press the up or down SELECT buttons to choose POWER-SAVE. Press the minus adjust button to select the constant power-on mode. Press the plus adjust button to select the power-save mode. (18) MOIRE-CLEAR (ON/OFF) Press the up or down SELECT buttons to choose MOIRE-CLEAR.

  • Page 28: Enhanced Mode

    Enhanced Mode Press the button (up or down) to select the CONTRAST, and press the button (right or left) to select ENHANCED MODE. In the ENHANCED MODE, you can adjust the following controls. NORMAL CONTRAST BRIGHT FUNCTION AND OSD (20) CENTER-PCC (Center Pincushion or Bow Amplitude) ENHANCED CENTER-PCC TOP-PCC...
  • Page 29 H-Sync pulse. H-Sync pulse. Input Full White signal to the monitor. Press the plus and minus adjust buttons to get pure white at the corner of picture. Press plus and minus buttons together, to restore to factory preset level.
  • Page 30 NOTE When the monitor has no sync signal or incorrect connection and signal frequency is out of range, the following CAUTION comes on the screen. Check input signal, signal cable connection and signal frequency. 1. POWER SAVE IS OFF When POWER SAVE is OFF and there is no sync signal, the following screen is displayed.

  • Page 31: Troubleshooting

    TROUBLESHOOTING Before calling MITSUBISHI Product Support, please check that the items below are properly connected or set. In case of using a non-standard signal, please check the pin assignments and the signal timing of your computer with the specification outlined in Chapter 6 and 7.
  • Page 32 Two fine horizontal lines may be visible on the screen. This is not a fault or defect of the monitor and is normal for all aperture grille type displays. The fine lines are the shadows of Damper Wires which are used to reduce the susceptability of the DIAMONDTRON CRT's aperture grille to shock or vibration.

  • Page 33: Specifications

    SPECIFICATIONS Size, Mask Deflection angle Phosphors Stripe pitch Face Plate Focusing method INPUT SIGNAL Video Sync INTERFACE Input Connector Input Impedance SCANNING Horizontal FREQUENCY Vertical RESOLUTION (HxV) 1600dots x 1200lines Non-Interlaced maximum addressable resolution format WARM-UP TIME 30 minutes to reach optimum performance level BRIGHTNESS 100cd/m VIDEO AMPLIFIER...

  • Page 34: Appendix

    APPENDIX Monitor Signal Input Connector (DB9-15P) (Female) DB9-15P MOUNTED ON THE REAR PANEL Serial Interface Input Connector (DIN-8P) For Serial Interface Function (Female) DIN-8P MOUNTED ON THE REAR PANEL PIN ASSIGNMENTS Pin No. or COMPOSITE SYNC with GREEN VIDEO DDC ... DISPLAY DATA CHANNEL SDA ...

  • Page 35: Signal Cable Sc-B102

    Signal Cable SC-B102 Approx. 1.8m Monitor side DB9-15P (Male) Pin No. DDC ... DISPLAY DATA CHANNEL SDA ... SERIAL DATA SCL ... SERIAL CLOCK NC ... NO-CONNECTION side DB9-15P (Male) PIN ASSIGNMENTS Signal RED VIDEO GREEN VIDEO or COMPOSITE SYNC with GREEN VIDEO...

  • Page 36: Macintosh Adapter Ad-A205

    (see 1.2 Internal Preset Memory Capability) The chart shows all available modes for Macintosh systems plus all possible combina- tions with monitor. Please be aware that not all Macintosh modes are capable of driving all Macintosh video modes. DIP Switches...
  • Page 37 AD-A205 Mac Adapter settings Chart Macintosh Macintosh Macintosh Macintosh LC,LC II LC III, IIci COMPUTER -or- LC 475 IIsi Performa -or- 400,405, Performa 450,460, 410,430 466,467, RESOLUTION 475,476 640X480@60Hz 640X480@67Hz 800X600@56Hz 800X600@60Hz 800X600@72Hz 800X600@75Hz 832X624@75Hz 1024X768@60Hz 1024X768@70Hz 1024X768@72Hz 1024X768@75Hz 1024X768@75Hz 1152X870@75Hz 1280X960@75Hz 1280X1024@75Hz...
  • Page 38 CP871C134A10 MITSUBISHI ELECTRIC CORPORATION HEAD OFFICE: MITSUBISHI DENKI BLD, MARUNOUCHI, TOKYO 100. TELEX J24532 CABLE MELCO TOKYO...
