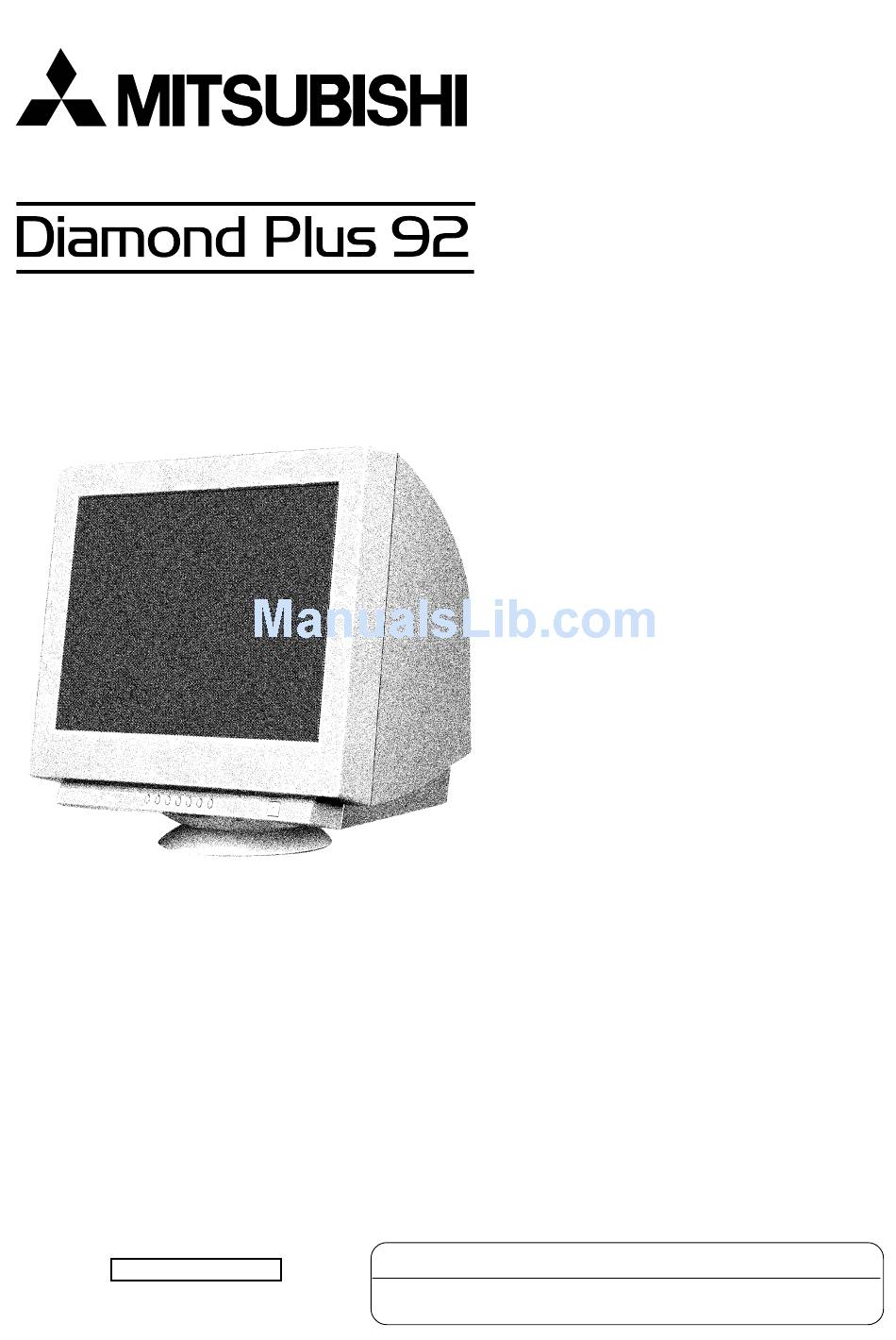

AUTO-SCANNING WITH DIGITAL CONTROL
COLOR DISPLAY MONITOR
USER'S GUIDE
For future reference, record the serial
number of your display monitor in the
space below:
SERIAL No.
The serial number is located on the
rear cover of the monitor.
Internet Home Page: http://www.mitsubishi-electric.com.au/
®
Supplying Windows
95/98/2000 INF File download service, new
product information, etc.
Advertisement
Table of Contents
Related Manuals for Mitsubishi Diamond Plus 92
Summary of Contents for Mitsubishi Diamond Plus 92
- Page 1 AUTO-SCANNING WITH DIGITAL CONTROL COLOR DISPLAY MONITOR USER’S GUIDE For future reference, record the serial number of your display monitor in the space below: SERIAL No. The serial number is located on the rear cover of the monitor. Internet Home Page: http://www.mitsubishi-electric.com.au/ ®...
- Page 2 - ii -...
- Page 3 RADIO INTERFERENCE REGULATIONS STATE- MENT FOR U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation.
- Page 4 Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
-
Page 5: Table Of Contents
CAUTION The power cord provided with this monitor is de- signed for safety and must be used with a properly grounded outlet to avoid possible electrical shock. Do not remove the monitor cabinet as this can expose you to very high voltages and other hazards. WARNING! This product is not designed for use in life support devices and Mitsubishi Electric Australia Pty.Ltd. -
Page 6: Introduction
INTRODUCTION Congratulations on your purchase of this high resolution colour monitor. We designed this monitor to provide you with years of reliable trouble-free operation. This guide tells you how to connect, adjust and care for your monitor. This guide also provides technical specifications and instructions for troubleshooting any basic problems you may experience with your monitor. -
Page 7: Internal Preset Memory Capability
Internal Preset Memory Capability To minimize adjustment needs, the factory has preset popular display standards into the monitor, as shown in Table 1. If any of these display standards are detected, the picture size and position are automatically adjusted. All of the factory presets may be overwritten by adjusting the user controls. -
Page 8: Unpacking
Unpacking After you unpack the box you should have all of the items indicated in Figure 1. Save the box and packing materials in case you transport the monitor. Figure 1 1. Colour Monitor 2. AC Power Cord 3. User's Guide (this document) Tilt/Swivel Base The monitor comes with a tilt/swivel base. -
Page 9: Part Name
PART NAME Control Names See Figures 3 and 4 for the location of the user controls, indicator and connectors. Each part is identified by number and is described individually. FRONT OSD OFF Figure 3 Function 1. POWER SWITCH: A push-on / push-off switch for AC power. -
Page 10: Installation And Connection
INSTALLATION AND CONNECTION On the back of the monitor two kinds of plug-in connections are provided: AC power connector for the AC input, DB9- 15P connector for video signal input. AC Power Connection One end of the AC power cord is connected to the AC power connector on the back of the monitor. -
Page 11: Osd(On Screen Display) Functions
(On Screen Display) FUNCTIONS How to adjust the screen The monitor has an OSD(On Screen Display) function. The following procedure shows how to adjust the screen using the OSD function. Main Menu Sub Menu OSD OFF If you don't press a button during the time set by "OSD TURN OFF", the OSD will turn off automatically. -
Page 12: Adjustment Items
Adjustment Items Group Item Item Icon Icon CONTRAST BRIGHT COLOR NOTE When selecting mode "sRGB", "COLOR TEMPERATURE", "CONTRAST" and "BRIGHT" are unavailable. COLOR TEMPERATURE FACTORY PRESET HORIZ-SIZE HORIZ-POSITION VERT-SIZE VERT-POSITION ROTATION GTF AUTO ADJUST NOTE "GTF AUTO ADJUST" is available when using with the computer which VESA GTF FACTORY PRESET NOTE If a non-Factory Preset timing is used, "FACTORY PRESET"... - Page 13 Item Group Item Icon Icon CORNER PURITY(TL) CORNER PURITY(TR) CORNER PURITY(BL) CORNER PURITY(BR) MOIRE CANCEL LEVEL CLAMP PULSE POSITION FACTORY PRESET HORIZ-CONVERGENCE VERT-CONVERGENCE FACTORY PRESET DEGAUSS POWER SAVE CONTROL LOCK NOTE "BRIGHT" and "CONTRAST" are unavailable at the locked condition. OSD POSITION OSD TURN OFF DIAGNOSIS...
-
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM LED On • Contrast and brightness controls (Green) • Power switch LED Off • AC power cord disconnected • Signal cable disconnected LED On • Computer power switch (Orange) picture • Power management function is active. • Power switch NOTE LED Blinking (Orange) - Page 15 PROBLEM • The 2 very faint thin lines across the screen are normal. Two fine horizontal They are caused by the aperture grille stabilization lines are visible on filaments(Damper Wires) which are required for all the screen. aperture grille CRTs’. Shadow of Damper Wires A buzzing sound •...
-
Page 16: Specifications
SPECIFICATIONS Size Mask type Deflection angle Phosphors Aperture grille pitch Face Plate Focusing method Video INPUT SIGNAL Sync Input Connectors SIGNAL INTERFACE Input Impedance SCANNING Horizontal FREQUENCY Vertical RESOLUTION (HxV) 1792 dots x 1344 lines Non-Interlaced maximum addressable resolution format at 68Hz WARM-UP TIME 30 minutes to reach optimum performance level BRIGHTNESS... -
Page 17: Appendix
APPENDIX Optional Macintosh Adapter AD-A205 settings The AD-A205 Macintosh Adapter(option) allows you to take an advantage of the built in video capabilities of your Macintosh computer with the monitor. Set the dip switches of the adapter, before connect- ing to the computer. Dip Switches Macintosh Display monitor... - Page 18 “AD-A205 Mac Adapter Setting Chart” shows all available modes for Macintosh systems and all possible combinations with the monitor. We recommend that you use the monitor with a preset timing. (See Section 1.2 Internal Preset Memory Capability) Please refer to the instruction book of your computer about the resolution setting. Resolution may not be changed on some computers.
-
Page 19: Warranty
WARRANTY IMPORTANT Please keep this Warranty in a safe place. It is valuable. The benefits conferred by this Warranty are in addition to all other rights and remedies in respect of the product which the consumer has under the Trade Practices Act and similar State and Territory Laws. MITSUBISHI Please complete and keep with original purchase docket. - Page 20 the product is damaged by the use of a consumable which is not supplied by Mitsubishi Electric Australia or its recognised retailer and which consumable is not of an equivalent standard and quality. the product is damaged by exhausted, leaking or used batteries or fails to function correctly as a result of the use of such batteries.
- Page 21 IMPORTANT NOTICE This recycle symbol may appear on packaging material or components of this product. This symbol is a mandatory requirement in some countries and does not necessarily indicate that the material can be recycled in Australia. The Plastic Identification Code (numbers 1 to 7 in a “chasing arrows triangle”) may also appear on packaging material or components for this product.
- Page 22 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For questions regarding this declaration, contact: NEC-Mitsubishi Electronics Display of America, Inc. 1250 North Arlington Heights Road, Itasca, Illinois 60143-1248...
