Installation Instructions

1

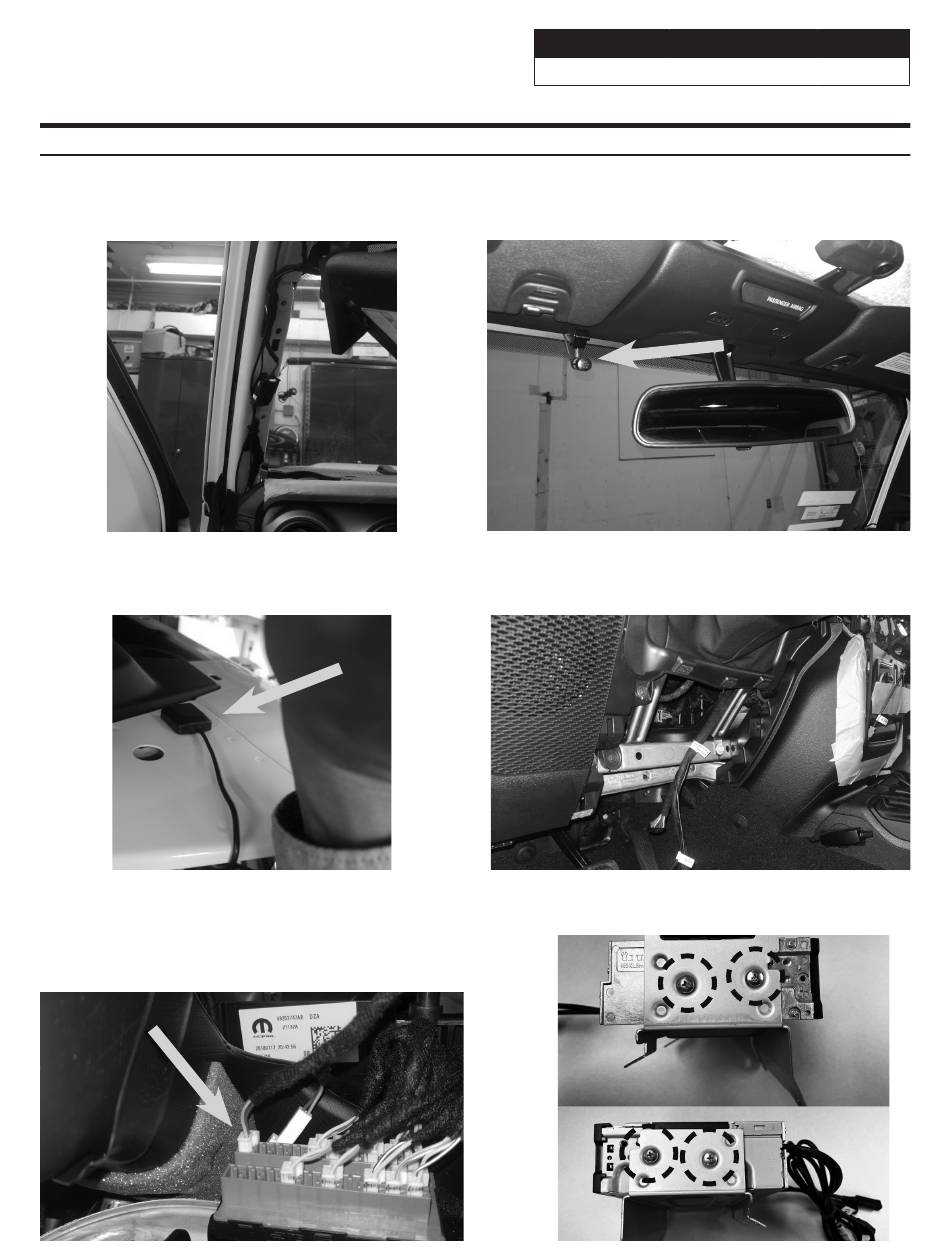

Run the GPS antenna Bluetooth microphone
cables up the A pillar along the OEM wiring. Route
as shown on the diagram on page 17.
3
Mount GPS antenna near driver side B-pillar as
illustrated on page 17 and run the cable to the
knee panel.
5
Route vehicle cable in main harness from radio
cavity to glove box and connect it to OBDII
gateway behind the glove box. If the gateway is
fully occupied, unclip 1 connector from it and use
T-harness.
i509-WRA-JL
2
Mount the microphone next to the rear view mirror
and run the cable behind the factory panels. Route
as shown on the diagram on page 17.
4
Route radio cables including Radio Main, Sirius XM,
FM, and Aux in main harness and also the display
cable from radio cavity to knee panel.
6
Attach tuner bracket to tuner using (4) M5X8LMM
supplied screws.
Jeep Wrangler
20220401v1
˜ 12/29
