Alpine i509-WRA-JL Installation Manual page 9

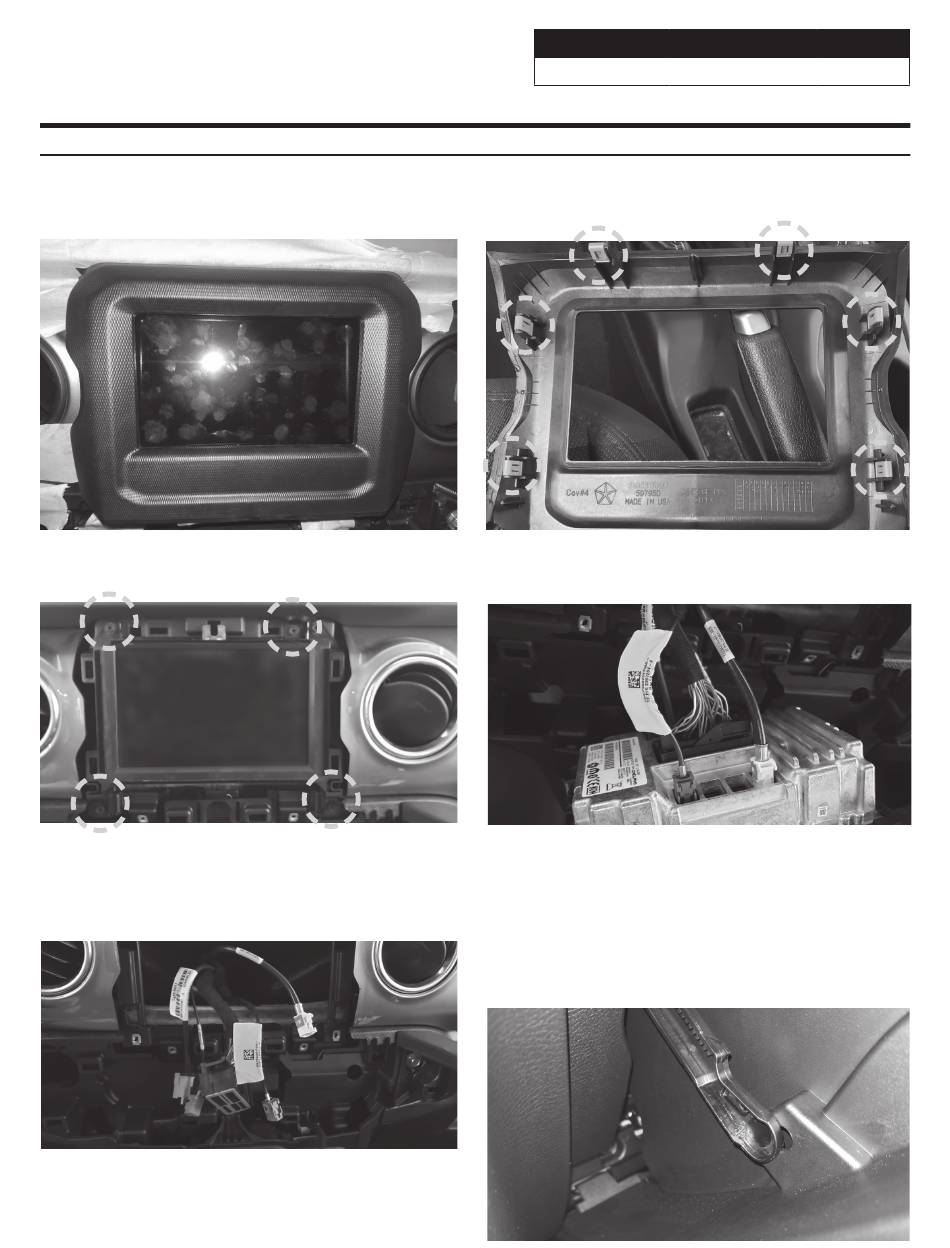

Factory Unit Disassembly Process (Continued)
7
Unsnap 6 clips and remove radio bezel using a
panel removal tool.
9
Use #2 Phillips Screwdriver to extract (4) screws
from head unit. Disconnect and remove the radio.
11
The disconnected harnesses from the previous
step. These will be used later to connect to the
main harness in the installation.
i509-WRA-JL
8
Unsnap the 6 clips and remove the knee panel
under the steering wheel using a panel removal
tool.
10
Disconnect the harnesses behind the OEM head
unit.
12
Open the glove compartment and remove
all contents, push up the glove compartment
travel stop and lower the door, pivot the glove
compartment downward, release latch on left side
of the glove compartment by pushing it upward,
pull the glove compartment upward to remove it
from the pivot.
Jeep Wrangler
20220401v1
