Alpine i509-WRA-JL Installation Manual page 8

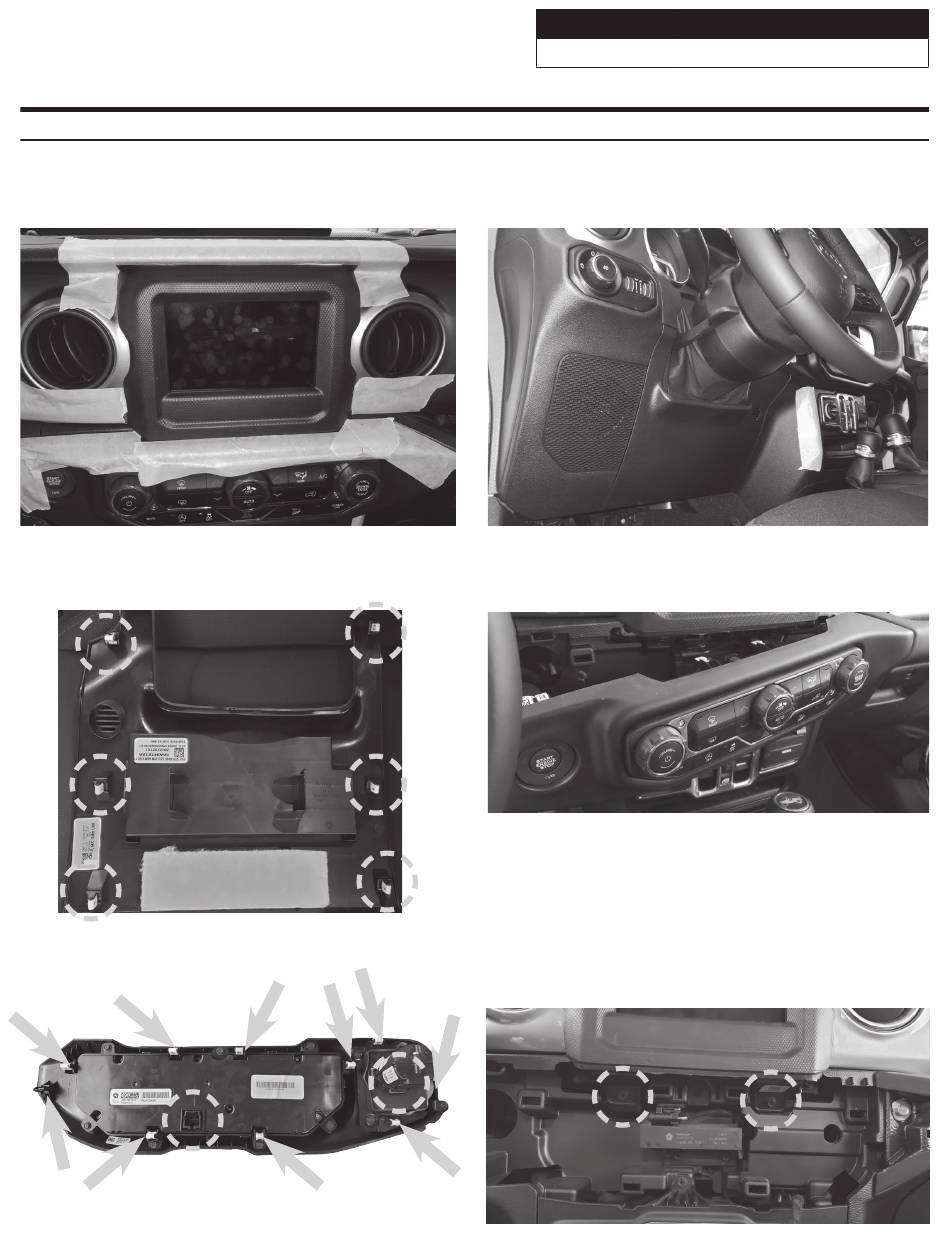

Factory Unit Disassembly Process
1
As a precautionary measure it's a good idea to
mask out the dashboard and panels to prevent
scratches.
3
The locations of the 6 clips from the previous step.
5
Locations of the clips and harnesses of the HVAC
controls from the previous step.
i509-WRA-JL
2
Unsnap the 6 clips and remove the knee panel
under the steering wheel using a panel removal
tool.
4
Unsnap 10 clips, unplug the 2 harnesses, and
remove HVAC panel using a panel removal tool.
6
Use #2 Phillips Screwdriver to extract (2) screws
from the bottom of the radio bezel.
Jeep Wrangler
20220401v1
˜ 8/29
