Alpine i509-WRA-JL Installation Manual page 16

Installation Instructions (Continued)
22

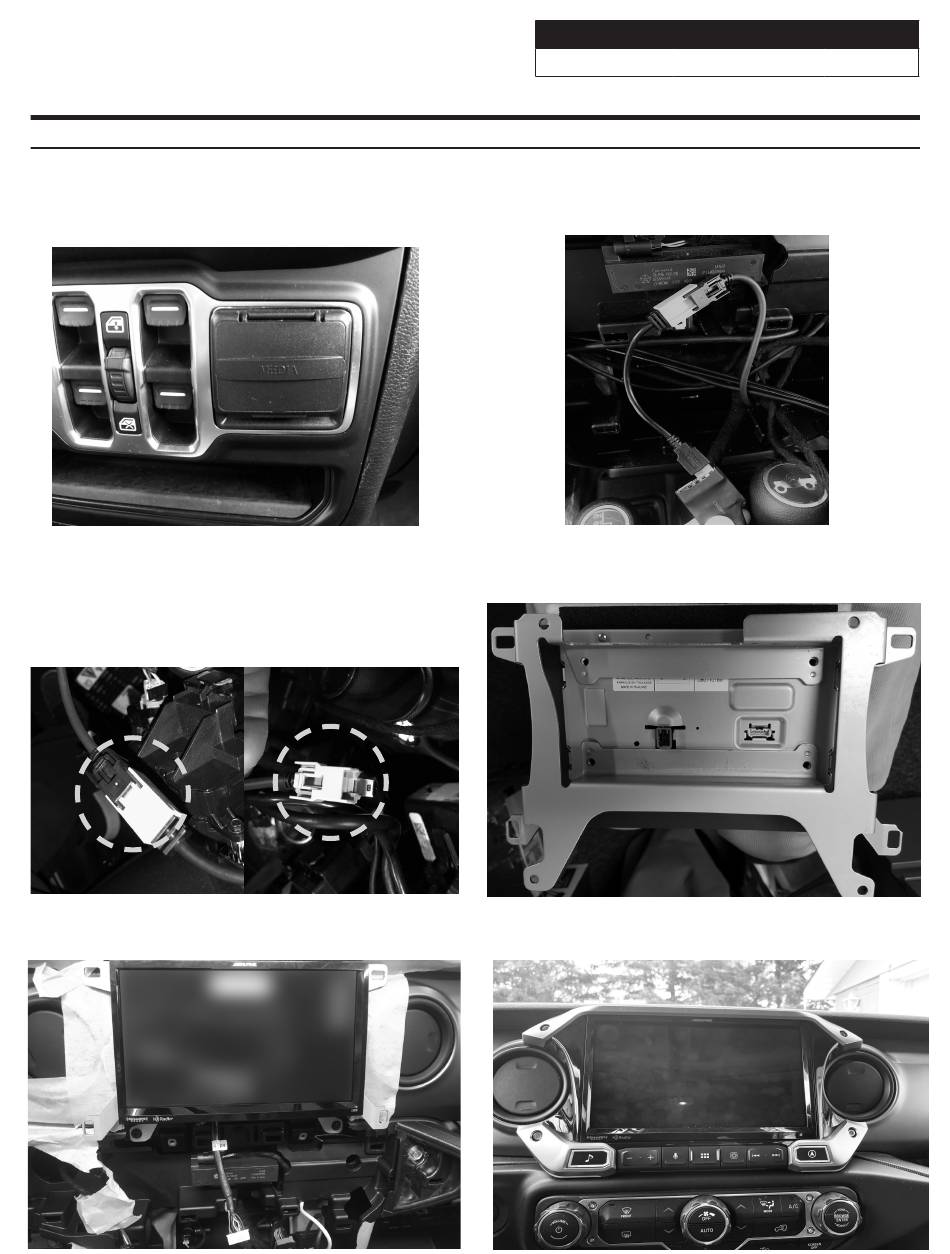

Insert the i509 USB HDMI box into the OEM
Center Media panel. Connect the HDMI and the
two USB cables to the source unit as shown on
page 19.
24
WARNING: There are 2 factory micro USB plugs
in the dash behind the media center. One is black
and one is grey. If the supplied adaptor is plugged
into the grey micro USB the factory USB's will not
charge. When it is plugged into the black plug all
rear USB's can be used for charging (not data).
Correct
26
Attach the display and bracket to the vehicle using
the OEM screws from the OEM radio.
Incorrect
i509-WRA-JL
23
Plug in the OEM USB and the USB from the box
to the power adapter. The adaptor needs to be
plugged into the BLACK micro usb.
25
Apply Anti-Vibration Foam to the top of the display.
Attach the display unit to the display bracket using
the (4) M5X8LMM supplied screws.
27
Plug in the bezel and and reinstall all the factory
panels.
Jeep Wrangler
20220401v1
˜ 16/29
