Alpine i509-WRA-JL Installation Manual page 18

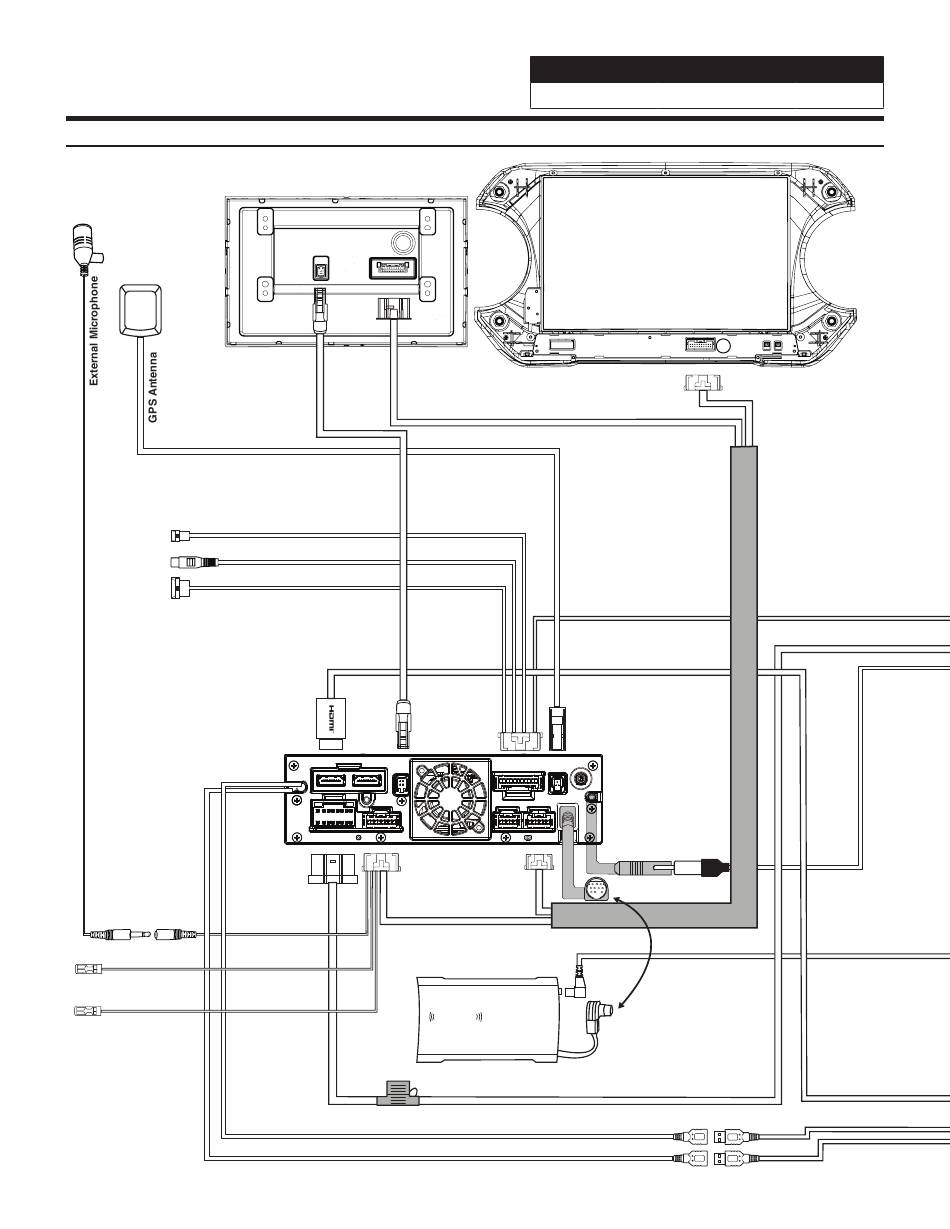

i509-WRA-JL Wiring Diagram
i509D - Display
Dash Cam Data
To Dash Cam
See Page 10 Dash Cam Video In
Front Camera Direct Input
To Optional
Front Camera
Note: optional direct to RCA
adapter can be purchased
on www.pacparts.com
Bluetooth Mic Input
Aux Remote Out
(Not Used)
Aux Remote In
(Not Used)
i509
IN
OUT
DISPLAY
USB
EX KEY
MAIN
Display Power/Key Harness
Brown
SiriusXm
Gray
connect
Power Harness
i509-WRA-JL
Rear Camera
Direct Input
CAMERA GPS
SXM
PREOUT REMOTE
ANTENNA
SiriusXM
Antenna
To optional
SiriusXM tuner
(sold seperately)
Gray USB 1.5A Charging Only
Black USB 2.4A Charge & Passes Data
This is step 23 on page 16
Jeep Wrangler
20220401v1 ˜ 18/29
