Installation Instructions - Alpine i207-WRA Restyle Installation Manual

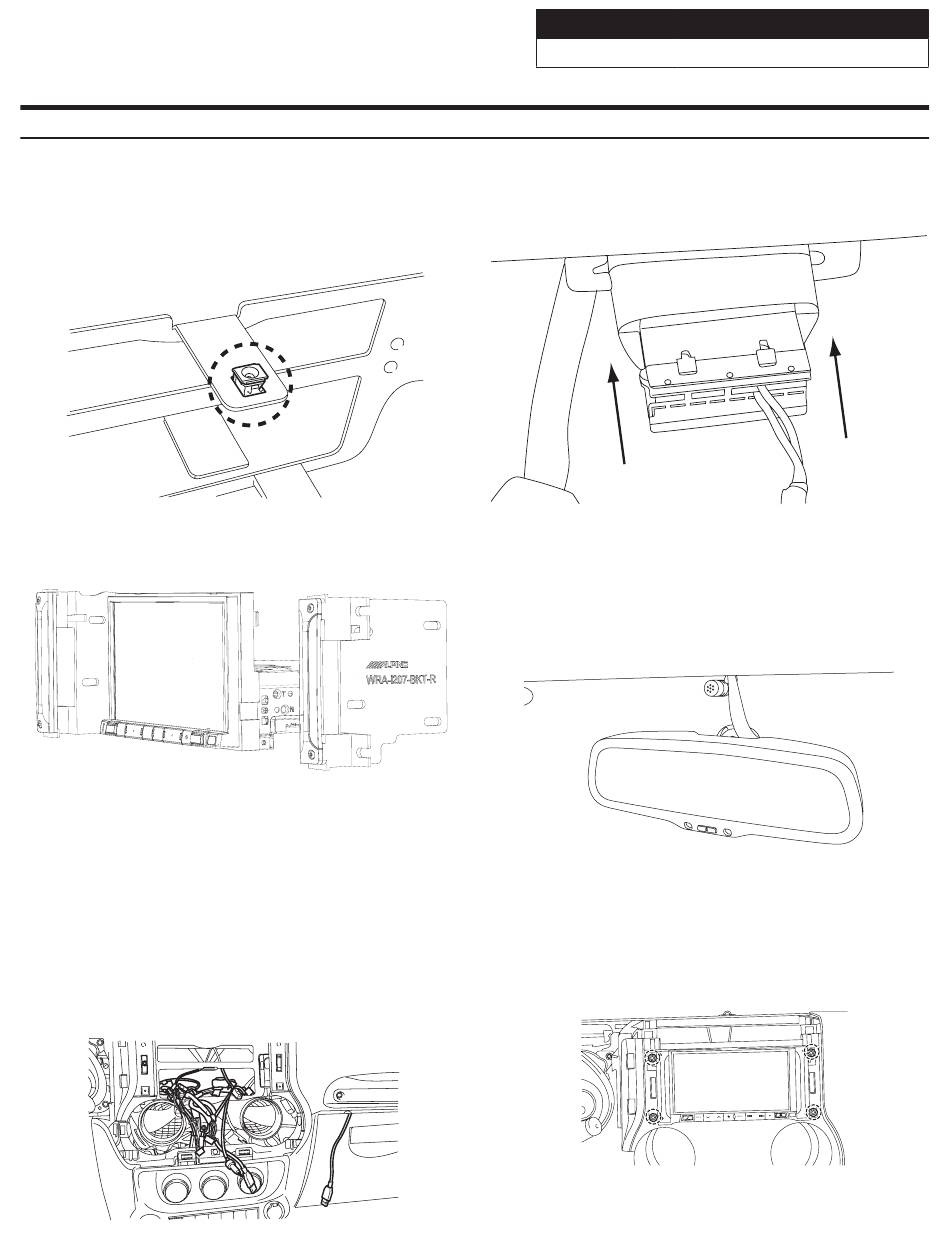

Installation Instructions

1
Attention: For 2011-2017 vehicles only. Insert the
push clips from the factory bracket. Install the rear
support bracket, using the (2) 7mm screws that
were removed from the factory bracket, to attach
head unit bracket in the same place.
3
Attach the side brackets using the provided 8mm
round head screws.
5
Run the USB extension cable to an area you want to
plug in at (typically the glove box or center console
areas), connect the main harness, antenna, and
other adapters to the factory harnesses and secure
them. Route all cables through the lower opening of
the rear support bracket as shown below.
For 2007-2010 vehicles: Connect the main harness,
run the USB extension from the back of the head
unit to desired location, connect antenna, other
adapters, and secure them.
i207-WRA
2
Plug the OBDII connector on to the OBDII port
below the driver side dash and run the extension to
the radio cavity.
4
Mount the microphone as illustrated and run the
cable to the radio cavity. You will need to use a T20
Torx to remove the visor. For optimal performance
it should be mounted by the rear-view mirror as
illustrated.
6
Mount the i207-WRA head unit using the factory
7mm screws and return factory panels to their
corresponding place
Jeep Wrangler
20201016v1
˜ 10/19
