Factory Unit Disassembly Process (Continued)
13

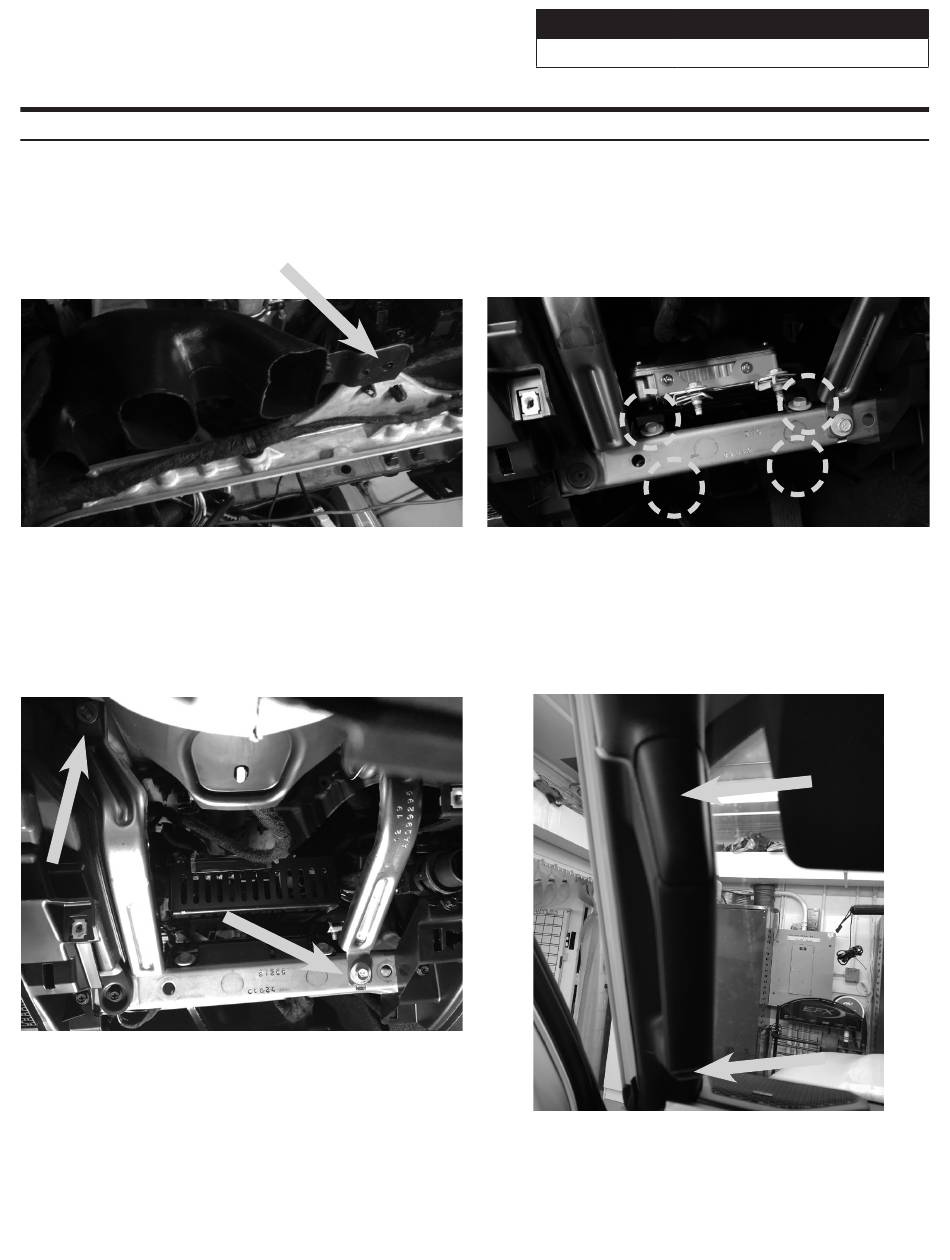

For vehicles with the power inverter remove the
ventilation duct behind the drivers side knee panel
using a panel removal tool to release the one clip
holding it in place. Once the installation of the i509-
WRA-JL tuner is completed the vent can go back
in place.
15
Remove the two knee panel brackets. Each
bracket is held in by (1) 10mm screw.
i509-WRA-JL
14
For vehicles with heated seats or the power
inverter the bracket for the module needs to be
removed. Remove the (4) 10mm screws to remove
the bracket. Then remove the (2) 8mm screws lower
and the (2) 10mm screws top to remove the module.
16
Remove the A pillar by removing the (2) 8mm
screws and unclipping the panel. The screws can
be exposed using a panel removal tool.
Jeep Wrangler
