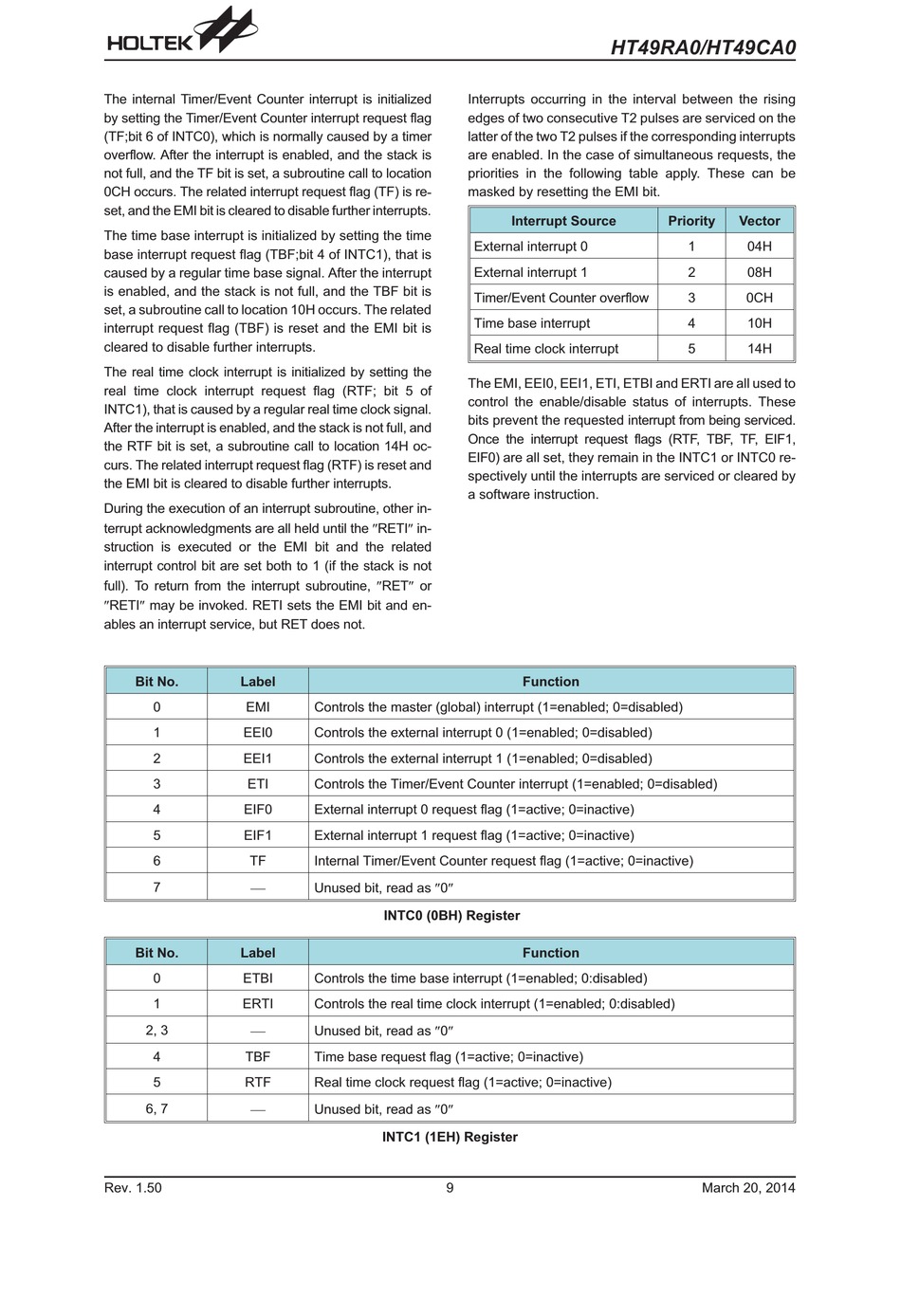

Holtek HT49RA0 Manual page 9

The internal Timer/Event Counter interrupt is initialized
by setting the Timer/Event Counter interrupt request flag
(TF;bit 6 of INTC0), which is normally caused by a timer
overflow. After the interrupt is enabled, and the stack is
not full, and the TF bit is set, a subroutine call to location
0CH occurs. The related interrupt request flag (TF) is re-
set, and the EMI bit is cleared to disable further interrupts.
The time base interrupt is initialized by setting the time
base interrupt request flag (TBF;bit 4 of INTC1), that is
caused by a regular time base signal. After the interrupt
is enabled, and the stack is not full, and the TBF bit is
set, a subroutine call to location 10H occurs. The related
interrupt request flag (TBF) is reset and the EMI bit is
cleared to disable further interrupts.
The real time clock interrupt is initialized by setting the
real time clock interrupt request flag (RTF; bit 5 of
INTC1), that is caused by a regular real time clock signal.
After the interrupt is enabled, and the stack is not full, and
the RTF bit is set, a subroutine call to location 14H oc-
curs. The related interrupt request flag (RTF) is reset and
the EMI bit is cleared to disable further interrupts.
During the execution of an interrupt subroutine, other in-
terrupt acknowledgments are all held until the ²RETI² in-
struction is executed or the EMI bit and the related
interrupt control bit are set both to 1 (if the stack is not
full). To return from the interrupt subroutine, ²RET² or
²RETI² may be invoked. RETI sets the EMI bit and en-
ables an interrupt service, but RET does not.
Bit No. Label
0 EMI
1 EEI0
2 EEI1
3 ETI
4 EIF0
5 EIF1
6 TF
¾
7
Bit No. Label
0 ETBI
1 ERTI
¾
2, 3
4 TBF
5 RTF
¾
6, 7
Rev. 1.50
Interrupts occurring in the interval between the rising
edges of two consecutive T2 pulses are serviced on the
latter of the two T2 pulses if the corresponding interrupts
are enabled. In the case of simultaneous requests, the
priorities in the following table apply. These can be
masked by resetting the EMI bit.
External interrupt 0
External interrupt 1
Timer/Event Counter overflow
Time base interrupt
Real time clock interrupt
The EMI, EEI0, EEI1, ETI, ETBI and ERTI are all used to
control the enable/disable status of interrupts. These
bits prevent the requested interrupt from being serviced.
Once the interrupt request flags (RTF, TBF, TF, EIF1,
EIF0) are all set, they remain in the INTC1 or INTC0 re-
spectively until the interrupts are serviced or cleared by
a software instruction.
Controls the master (global) interrupt (1=enabled; 0=disabled)
Controls the external interrupt 0 (1=enabled; 0=disabled)
Controls the external interrupt 1 (1=enabled; 0=disabled)
Controls the Timer/Event Counter interrupt (1=enabled; 0=disabled)
External interrupt 0 request flag (1=active; 0=inactive)
External interrupt 1 request flag (1=active; 0=inactive)
Internal Timer/Event Counter request flag (1=active; 0=inactive)
Unused bit, read as ²0²
INTC0 (0BH) Register
Controls the time base interrupt (1=enabled; 0:disabled)
Controls the real time clock interrupt (1=enabled; 0:disabled)
Unused bit, read as ²0²
Time base request flag (1=active; 0=inactive)
Real time clock request flag (1=active; 0=inactive)
Unused bit, read as ²0²
INTC1 (1EH) Register
9
HT49RA0/HT49CA0
Interrupt Source Priority
Function
Function
Vector
1 04H
2 08H
3 0CH
4 10H
5 14H
