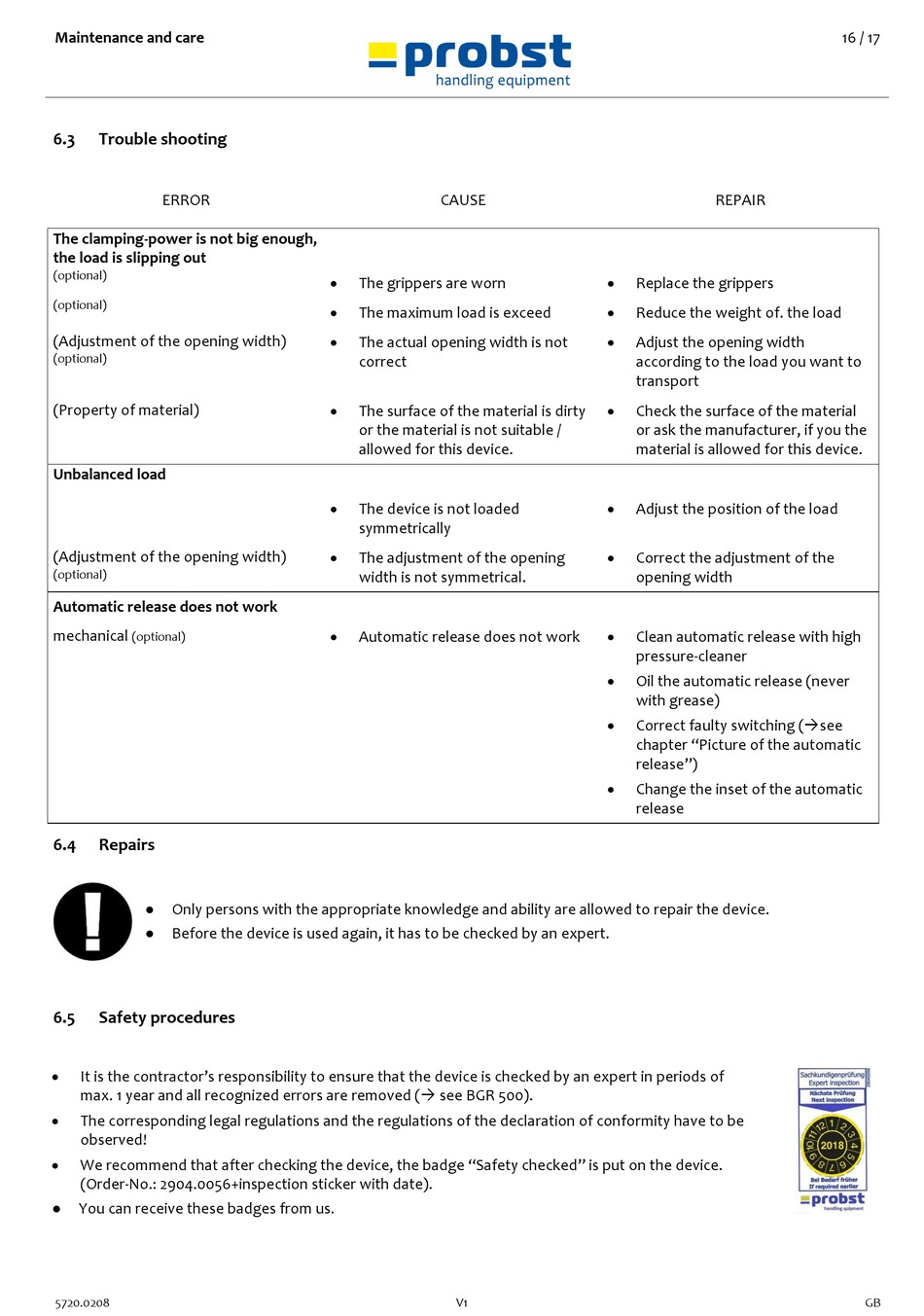

Trouble Shooting; Repairs; Safety Procedures - probst KIG II Operating Instructions Manual

Cone insert clamp
Table of Contents

Advertisement

Maintenance and care
6.3

Trouble shooting

ERROR
The clamping-power is not big enough,
the load is slipping out
(optional)
(optional)
(Adjustment of the opening width)
(optional)
(Property of material)
Unbalanced load
(Adjustment of the opening width)
(optional)
Automatic release does not work
mechanical
(optional)
6.4

Repairs

Only persons with the appropriate knowledge and ability are allowed to repair the device.
Before the device is used again, it has to be checked by an expert.
6.5

Safety procedures

It is the contractor's responsibility to ensure that the device is checked by an expert in periods of
max. 1 year and all recognized errors are removed ( see BGR 500).
The corresponding legal regulations and the regulations of the declaration of conformity have to be
observed!
We recommend that after checking the device, the badge "Safety checked" is put on the device.
(Order-No.: 2904.0056+inspection sticker with date).
You can receive these badges from us.
5720.0208
CAUSE
The grippers are worn
The maximum load is exceed
The actual opening width is not
correct
The surface of the material is dirty
or the material is not suitable /
allowed for this device.
The device is not loaded
symmetrically
The adjustment of the opening
width is not symmetrical.
Automatic release does not work
V1
REPAIR
Replace the grippers
Reduce the weight of. the load
Adjust the opening width
according to the load you want to
transport
Check the surface of the material
or ask the manufacturer, if you the
material is allowed for this device.
Adjust the position of the load
Correct the adjustment of the
opening width
Clean automatic release with high
pressure-cleaner
Oil the automatic release (never
with grease)
Correct faulty switching (see
chapter "Picture of the automatic
release")
Change the inset of the automatic
release
16 / 17
