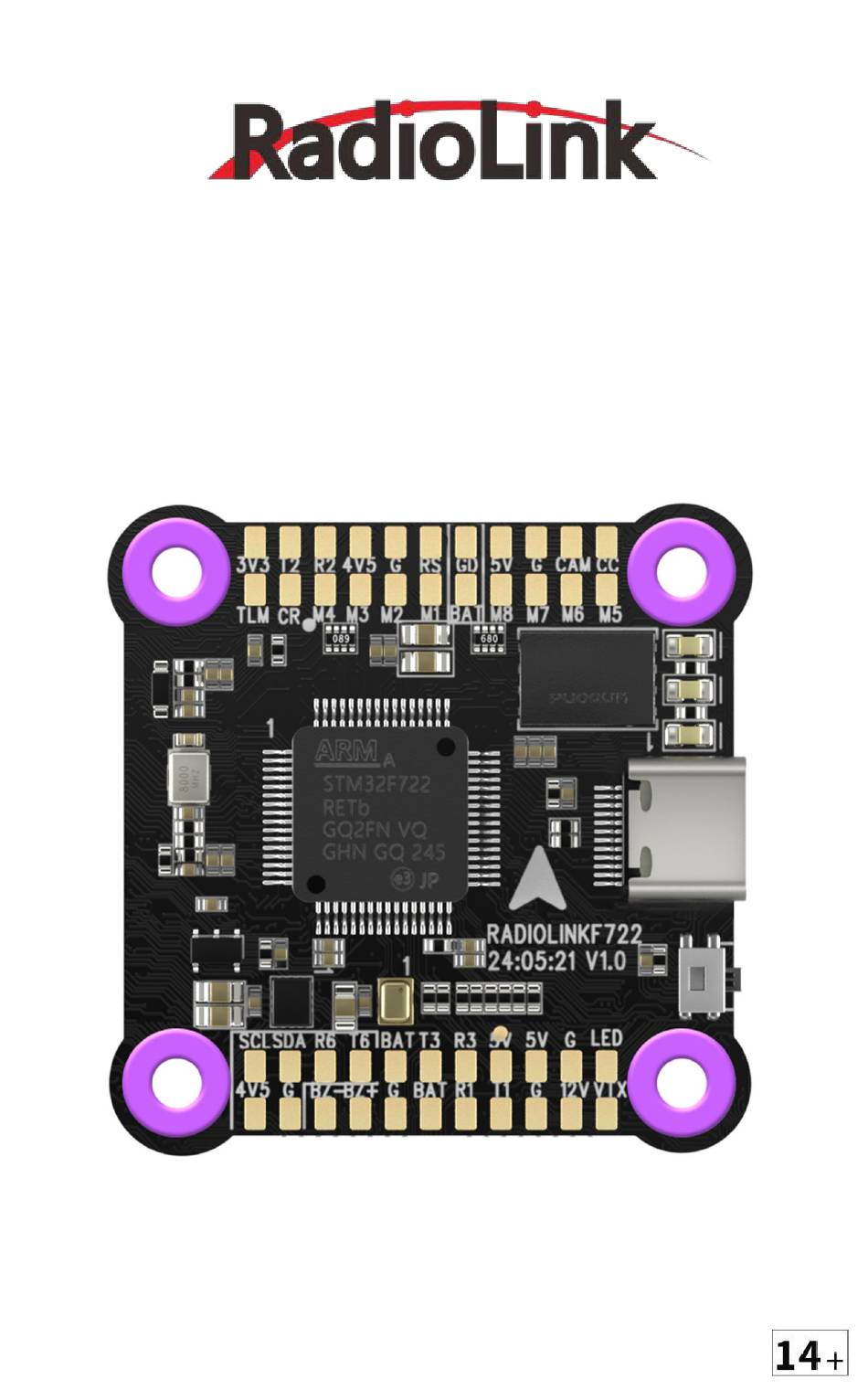

- Page 1 F722 User Manual...
- Page 2 Thank you for choosing RadioLink product. This product is not a toy and is not suitable for children under the age of 14. Adults should keep the product out of the reach of children and exercise caution when operating this product in the presence of children.
-
Page 3: Table Of Contents
Contents Specifications Package LED Indicator Soldering Pad Definition Socket Interface Definition FC & ESC Connection FC's Peripheral Connection FC's Firmware Update... -
Page 4: Specifications
Specifications Weight & Dimension 30.5*30.5mm(1.2″*1.2″) Dimension Weight 9.5g Hardware Processor STM32F722RET6 Sensor Gyro ICM42688 Barometer BMP280/DPS310 Blackbox 128MB, record and store flight logs OSD Module AT7456E Connector Channel Output M1 - M8 HD Digital Support HD digital video Video Transmission transmission plug-and-play Analog Video Support analog video... - Page 5 Firmware Type Betaflight Firmware Name RADIOLINKF722 USB Port 1 (Type-C) RC In Signal Input SBUS/CRSF OSD Telemetry Support, OSD Module Integrated PWM, two-way DShot, and OneShot ESC Protocol Protocol Input Voltage 3-6S 3.3V/300mA; 4.5V/500mA; 5V/3A; 12V/3A 12V BEC Switch Support (USER1) 2-8 axis multi-rotor including X8 models, Airplane, A-tail Quad, Bicopter, Custom Airplane, Custom Tricopter, Dualcopter,...
-
Page 6: Package
Package... -
Page 7: Led Indicator
LED Indicator Soldering Pad Definition... -
Page 8: Socket Interface Definition
Socket Interface Definition... -
Page 9: Fc & Esc Connection
FC & ESC Connection Method 1: All connectors Note: When two ESCs are connected in this method, please disconnect the BAT, CURR, TLM cables for one of the ESC. Method 2: Direct Soldering... -
Page 10: Fc's Peripheral Connection
FC's Peripheral Connection Method 1: All connectors... - Page 11 Method 2: Direct Soldering...
- Page 13 Note: when connecting DJI image transmission, the SBUS pin of DJI will occupy the R2 pin of F722. If DJI SBUS signal remote control is used, please disconnect the device on the R2 and T2 solder pad or on the receiver socket. If R2 and T2 solder pad or receiver socket are occupied to connect other receivers, please disconnect the DJI SBUS connection.
-
Page 14: Fc's Firmware Update
FC Firmware Update (1) Long press the DFU button. At the same time, connect F722 to the computer with a USB cable. Betaflight Configurator will display the DFU mode (See picture below); (2) Select RADIOLINKF722 and 4.5.1 firmware in Betaflight... - Page 15 (3) After the firmware is loaded, click“Flash firmware”; (4) After the firmware is flashed, connect it to Betaflight Configurator again. The icon of gyroscope, accelerometer, barometer and DataFlash will be displayed.
