Installation and Operating Instructions
Issue 1
Description
: Robinhood Box Canopy Rangehood (Stainless Steel/Matte Black)
Model Number : RWE3CL6SSDC (60cm), RWE3CL9SSDC (90cm),
RWE3CL6MBDC (60cm), RWE3CL9MBDC (90cm)
RWE3CL6SSDC
RWE3CL9SSDC
RWE3CL6MBDC
RWE3CL9MBDC

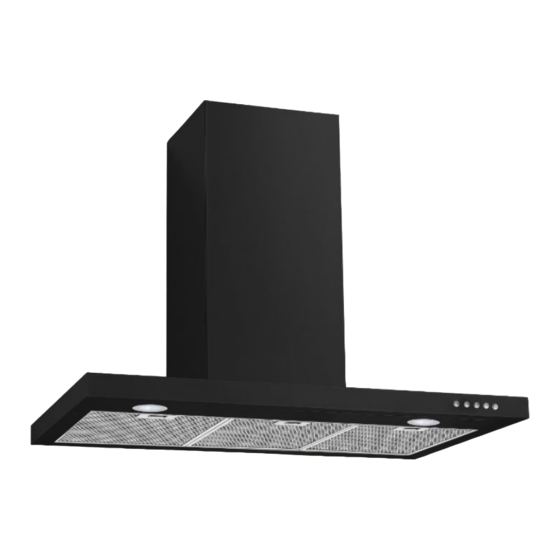

*Actual unit may vary from above model picture

Advertisement

loading
Need help?

Need help?

Do you have a question about the RWE3CL6SSDC and is the answer not in the manual?

Questions and answers

Summary of Contents for ROBINHOOD RWE3CL6SSDC

  • Page 1 Installation and Operating Instructions Issue 1 Description : Robinhood Box Canopy Rangehood (Stainless Steel/Matte Black) Model Number : RWE3CL6SSDC (60cm), RWE3CL9SSDC (90cm), RWE3CL6MBDC (60cm), RWE3CL9MBDC (90cm) RWE3CL6SSDC RWE3CL9SSDC RWE3CL6MBDC RWE3CL9MBDC *Actual unit may vary from above model picture...
  • Page 2: Table Of Contents

    Contents Congratulations! Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read through the whole user manual which provides important safety instructions and description of the product and the proper use of its functions. To avoid the ever‐present risks involved with using an electrical appliance it is vital that the oven is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
  • Page 3: Important Safety Instructions

    Important Safety Instructions IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. In certain circumstances electrical appliances may be a safety hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Page 4: Appliance Details

    Appliance Details Voltage & Frequency: 220‐240V 50Hz Lamp Max: 2 x 1.5W LED Rated Input Power: General Information Before installing and operating the rangehood, carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed to exhaust cooking fumes externally.
  • Page 5: Installation Instructions

    Installation Instructions MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V‐flap 1, you should mount the half‐parts to its body. The images only show an example of how to mount the V‐flap, because the outlet may vary according to different models and configurations.
  • Page 6 Installation Instructions When installing the rangehood, the lower edge of the unit must be a minimum of 600mm (650mm for • gas cooker) above the cooking range. (Shown as below). The recommended position for the hood is 650mm above the hotplates. •...
  • Page 7 Installation Instructions Adjust the height of the inside chimney to the position of the inside chimney bracket and fix it by screws, after adjusting the position, fix the body with safety screws. Note: The two safety vents are positioned on the back housing, with a diameter of 6mm.
  • Page 8: Operating Instructions

    Operating Instructions Controls There are five buttons: (Low), (Mid), (High), (Lamp), (Power). 1. After connecting to power, indicator light will on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation. 2.
  • Page 9: Troubleshooting

    Troubleshooting Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not work; Refit mains power cable to power Mains power cable is loose or motor does not work...
  • Page 10: Cleaning And Maintenance

    Cleaning and Maintenance Caution: • Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. External surfaces are susceptible to scratches and abrasions, so follow the cleaning instructions to ensure the •...
  • Page 11 Cleaning and Maintenance BULB REPLACEMENT Important: • The bulb must be replaced by the manufacturer, its service agent, or similarly qualified persons. • Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands. •...
  • Page 12 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
  • Page 13: Warranty Certificate

    Shriro Australia Pty Ltd Monaco Corporation Ltd ABN 28 002 386 129 Telephone: (09) 415 6000 Telephone: 1800 648 556 Facsimile: (09) 415 7400 Facsimile: 1800 628 577 Email: customercare@monacocorp.co.nz Email: customercare@shriro.com.au www.robinhood.co.nz IM Ref: RWE3CL6SSDC, RWE3CL9SSDC, RWE3CL6MBDC, RWE3CL9MBDC IM v1 29/04/2021...
