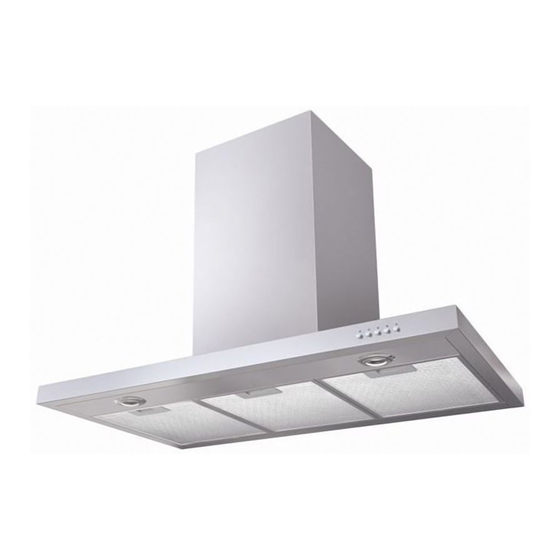

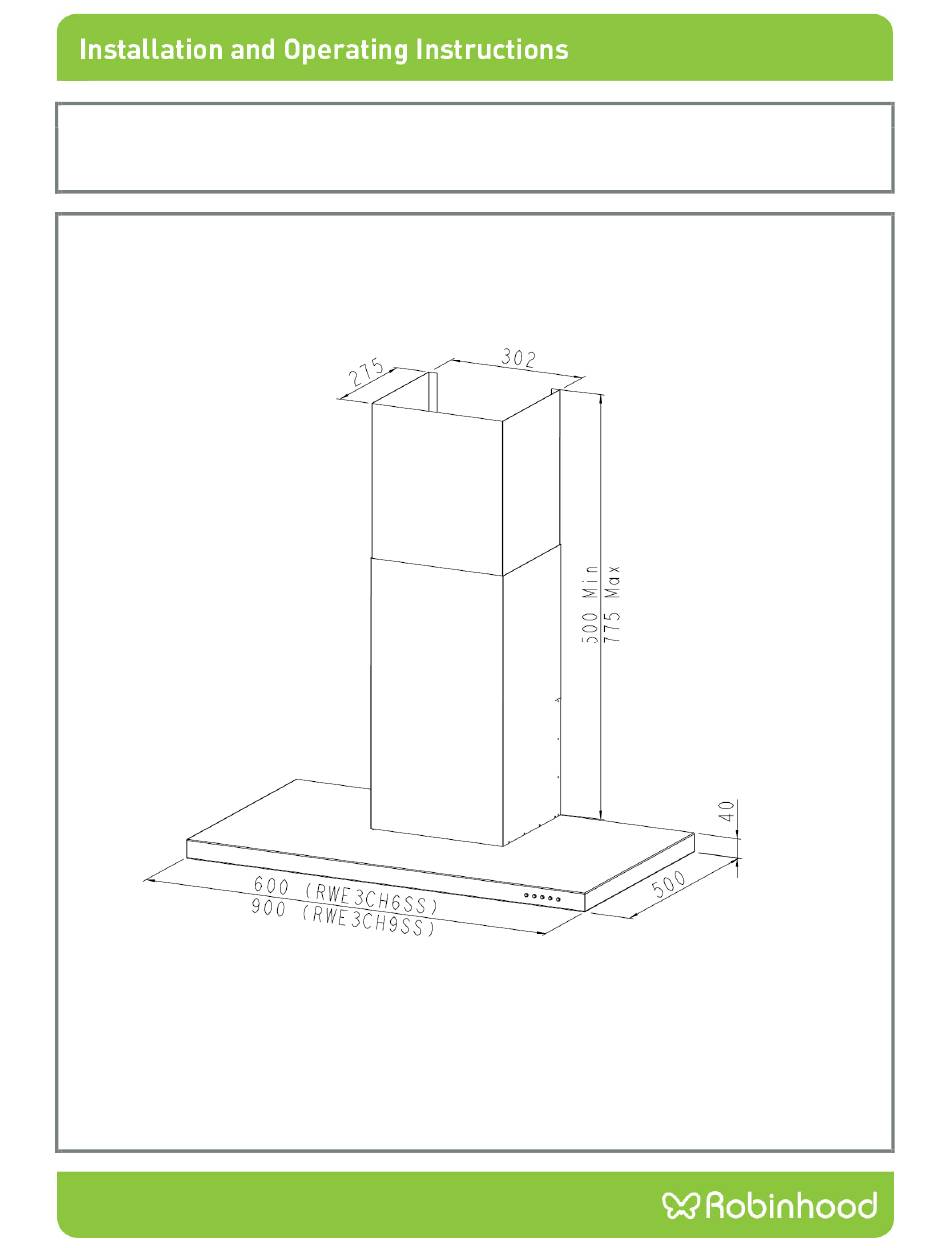

- Page 1 Issue: B Description: ROBINHOOD WALL CANOPY Model Numbers: RWE3CH6SS, RWE3CH9SS Model pictured: RWE3CH9SS All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Pre-Installation
Overview Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. -
Page 3: Ducting Options
Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 4: Installation Position
Pre-Installation - continued Installation position Vertical height from bottom of Rangehood to Fixing Plate mounting screws 302mm. Set height from the hob surface to the underside face of the rangehood at 750mm for electric hob or gas hob. Please check that the length of your chimney assembly will reach your ceiling before securing the rangehood to the wall. -
Page 5: Installation
Installation Mounting to a stud is recommended. However, if fitted to other wall linings (plasterboard, concrete etc) suitable fixings will be required. Before drilling any holes check that the wall and ceiling are clear of any electrical cables, pipes etc. Rear wall Wall stud Fixing screw... -
Page 6: Recirculation Mode
Installation - continued Using screws supplied, fix the lower chimney bracket onto lower chimney. Remove the protective plastic covering from all parts including the filters. Hang the rangehood onto the mounting bracket. Connect to the power supply and switch on the power to the rangehood. Check the functions and operations of the switches. - Page 7 Operating instructions Controls Speed 1 Speed 2 Speed 3 Lights On/Off Power On/Off Light The light can be operated independently from the fan and is controlled in accordance with the graphics printed above. The fan is operated by turning the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 / Speed 3) depending on the cooking requirements and is controlled in accordance with the graphics printed above.
- Page 8 Chimney extensions Note: When the maximum chimney height is to be used, there will be a minimum of 25mm overlap required for top and bottom chimney assembly.
-
Page 9: Important Safety Information
Product approvals and ratings Product approval number A/10933EA Product rating 190W Max. at 240v 50Hz Electrical approved to IEC 60335.1:2001; EN 60335.1:2002 EMC tested to EN55014.1/2, EN61000.3.2/3 Performance tested GB/T17713 Important safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory •... - Page 10 (but not limited to) loss of profit, loss of revenue, loss of contract, lost of goodwill or increased cost of workings, even if due to the negligence of Robinhood or any of its approved suppliers, employees or agents.
- Page 11 (but not limited to) loss of profit, loss of revenue, loss of contract, lost of goodwill or increased cost of workings, even if due to the negligence of Robinhood or any of its approved suppliers, employees or agents.
