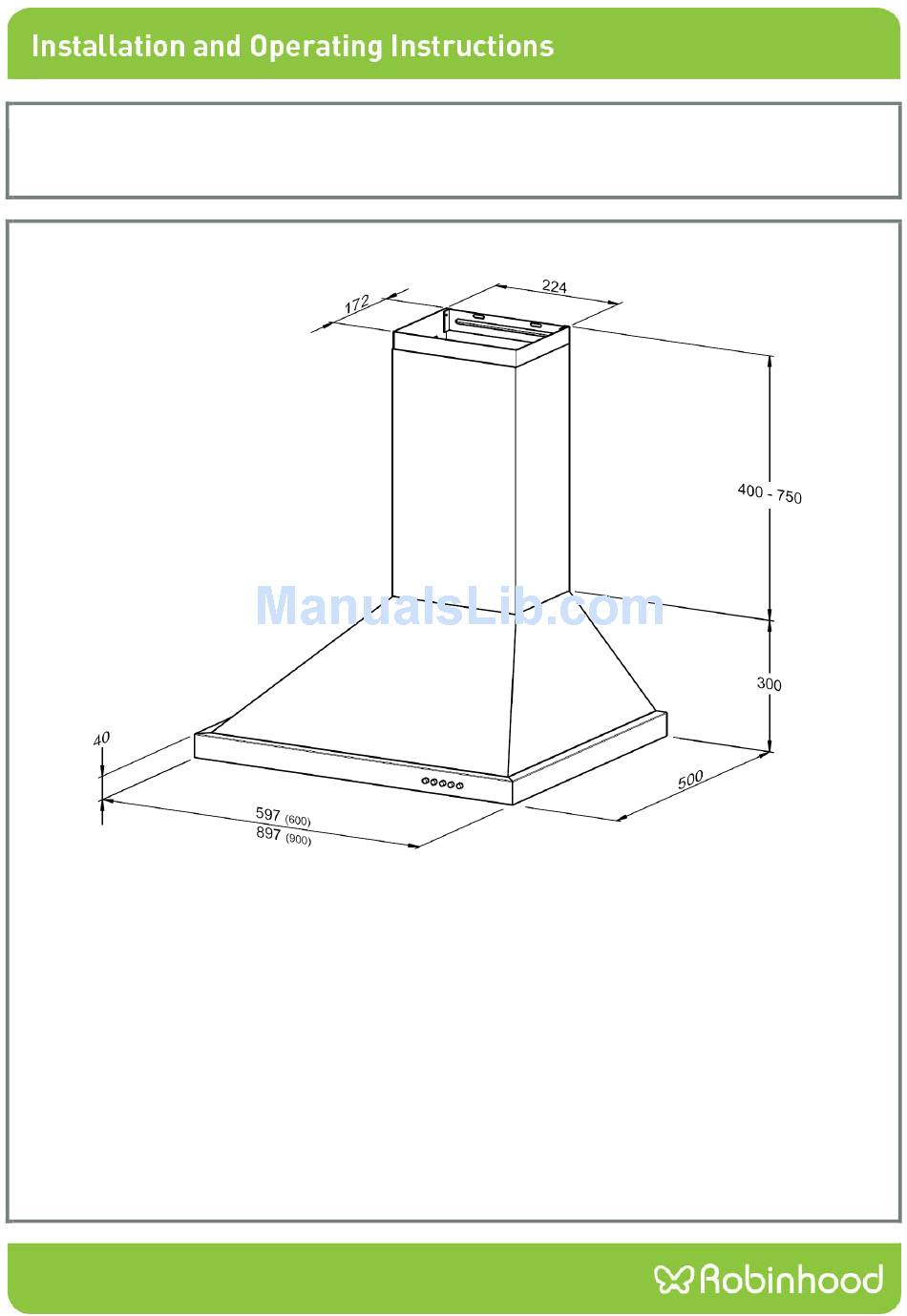

- Page 1 Issue: A Description: ROBINHOOD WALL CANOPY Model Numbers: RWH3CH6SS, RWH3CH9SS Model pictured: RWH3CH6SS All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Pre-Installation
Overview view Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. -
Page 3: Ducting Options
Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 4: Installation Position
Pre-Installation - continued Installation position Minimum height from the hob surface to the underside face of the rangehood 600mm electric hob 650mm gas hob Notes: If the instructions for the gas hob specify a greater distance, this has to be taken into account. Any installation above 750mm will compromise performance. -
Page 5: Installation
Installation Mounting to a stud is recommended. However, if fitted to other wall linings (plasterboard, concrete etc) suitable fixings will be required. Before drilling any holes check that the wall and ceiling are clear of any electrical cables, pipes etc. Rear wall Wall stud Fixing screw... -
Page 6: Recirculation Mode
Installation - continued Remove the protective plastic covering from all parts including the filters. Fit the canopy hood on the fixing bracket. Fix the lower chimney bracket to the top of the lower chimney using two screws supplied. Connect to the power supply and switch on the power to the canopy hood. Check the function of the canopy hood. -
Page 7: Filter Maintenance
Operating instructions Controls Power On/Off Speed 1 Speed 2 Speed 3 Lights On/Off Light The light can be operated independently from the fan and is controlled in accordance with the graphics printed above. The fan is operated by turning the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 / Speed 3) depending on the cooking requirements and is controlled in accordance with the graphics printed above. -
Page 8: Important Safety Information
Product approvals and ratings Product approval number VO71158 Product rating 280W (1.15A) Max at 240V 50Hz Electric approval AS/NZS 60335.2.31:2004 EMC AS/NZS CISPR14:2001 Performance tested IEC61591 Important safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 9 (but not limited to) loss of profit, loss of revenue, loss of contract, lost of goodwill or increased cost of workings, even if due to the negligence of Robinhood or any of its approved suppliers, employees or agents.
