ROBINHOOD WALL CANOPY
Model Number: RWF3CH9G

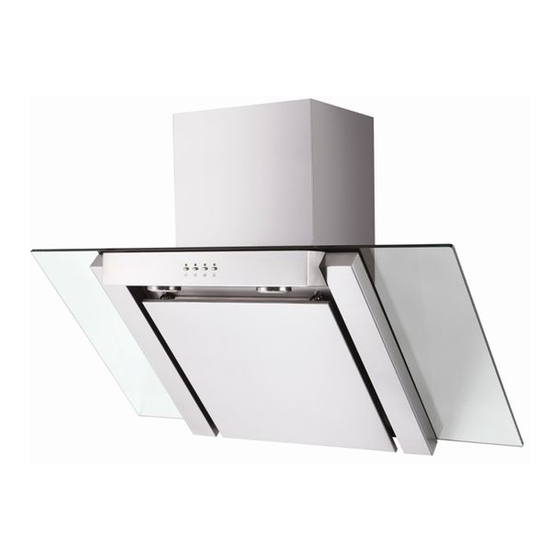

Models pictured: RWF3CH9G

Advertisement

loading
Need help?

Need help?

Do you have a question about the RWF3CH9G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ROBINHOOD RWF3CH9G

Summary of Contents for ROBINHOOD RWF3CH9G

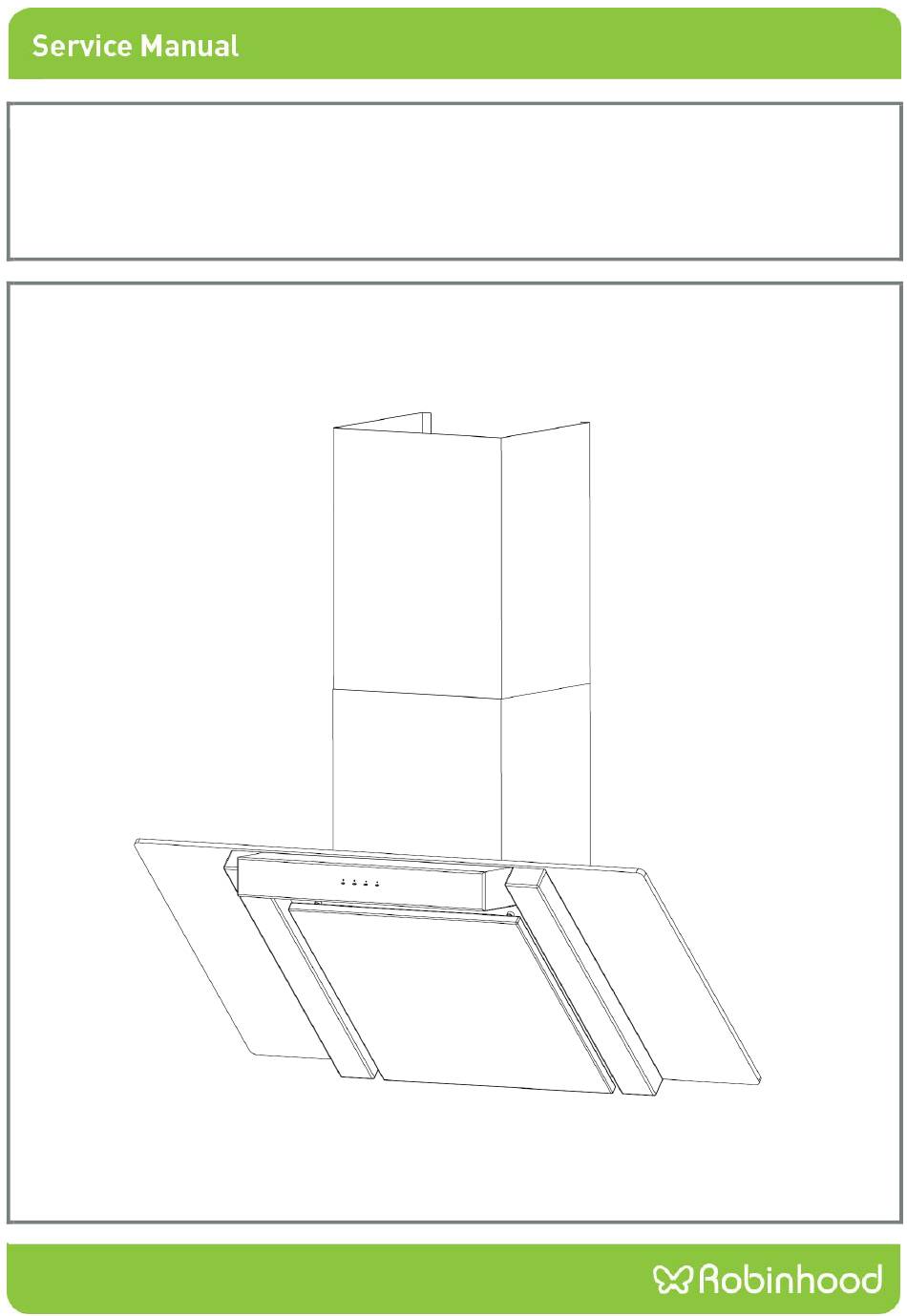

  • Page 1 Issue:E Description: ROBINHOOD WALL CANOPY Model Number: RWF3CH9G Models pictured: RWF3CH9G...
  • Page 2 Exploded view Model pictured: RWF3CH9G Model & Parts may vary slightly from images pictured...
  • Page 3 Item Description Part Number Top chimney piece 115270 Lower chimney piece 115271 Halogen lamp assembly 115272 Halogen bulb 104467 Catch for filter cover panel 115273 3 speed motor 330W 114308 Standard Aluminium filter 347 x 276 115274 Charcoal filter for recirculation mode 2615 Filter cover panel 115275...
  • Page 6 Wiring diagram ECN: 07034 New Zealand Australia Robinhood Ltd Robinhood PTY Ltd Telephone: 0800 760 667 Telephone: 1800 648 556 Facsimile: 0800 276 246 Facsimile: 1800 628 577 Email: enquiries@robinhood.co.nz Email: enquiries@robinhood.com.au www.robinhood.co.nz www.robinhood.com.au...
