- Page 1 Operation Manual and Parts Isotemp™ Refrigerators and Refrigerator-Freezers MODEL NO. Flammable Materials Storage Refrigerator 05FREEFSA Refrigerator 05LREEFSA Refrigerator/Freezer 05LCEEFSA Explosion Proof Refrigerator 05EREEFSA...
- Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
-
Page 3: Table Of Contents
Contents Introduction ..............1 Alert Signals ............. 1 Installation..............2 Shipping Carton ............2 Location ..............2 Electrical ..............2 Be Advised............... 2 Operation..............4 Environmental Operating Conditions......4 Child Entrapment Warning........4 Start-Up Procedure..........4 Restart Procedure ............ 4 Manual Defrost Procedure........ - Page 4 Maintenance ..............13 Be Advised............... 13 Cleaning of Units ............13 Troubleshooting ............14 Replacement Parts ............15 Warranty ..............16...
-
Page 5: Introduction
Introduction our toll-free hotline: 1-800-438-4851. They’ll assist you Alert Signals promptly, and in an error-free manner, by providing up- to- the-minute information on products, pricing, specifications, and delivery and return procedures. They’ll arrange to have WARNING: Warnings alert you to a possibility of your order shipped from one of our many Customer Service personal injury. -
Page 6: Installation
Installation Shipping Carton Explosion-Proof models do not come supplied with a cord and plug. Units must be hard-wired by a qualified electrician. This should be inspected upon delivery. When received, carefully examine for any shipping damage before unpacking. If damage is discovered, the delivering carrier should both Be Advised specify and sign for the damage on your copy of the delivery receipt. - Page 7 ™ • Insert fiber rope material down into horizontal conduit How to Seal Killark Box Conduit with Fiber and opening. Pressing down firmly, work the material into the Sealing Compound to Help Protect Against Explosions left hub and—most importantly—being sure the material (Explosion-Proof Units Only): COMPLETELY SURROUNDS THE WIRING, from the top The purpose of the procedure that follows is to build fiber...
-
Page 8: Operation
Operation Environmental Operating Conditions POLLUTION DEGREE*: INSTALLATION CATEGORY*: ALTITUDE: 2000 Meters MSL (Mean Sea Level) HUMIDITY: 80% maximum, non-condensing ELECTRICAL SUPPLY: 120 V AC VOLTAGE TOLERANCE: ±10% of normal rated line TEMPERATURE: 15ºC to 40ºC PRODUCT USAGE: This product is intended for use indoors only Because the markings on the dial do not indicate specific *Refer to IEC 664-1 temperatures, use them AS REFERENCE POINTS ONLY for... -
Page 9: How To Save Energy
• Rotate the temperature control knob to the OFF • Do not use a power cord that shows cracks setting. or abrasions. Have a qualified electrician repair or replace damaged cords • Disconnect the power cord from its outlet. immediately. •... -
Page 10: Laboratory Units
Laboratory Units MODEL 05LREEFSA Features: • 5.5 cubic ft. undercounter refrigerator. 05LREEFSA Note: THESE UNITS ARE DESIGNED FOR FREE STANDING INSTALLA- • Manual defrost. TION ONLY. THEY MAY BE INSTALLED UNDER • Adjustable hydraulic thermostat control. A COUNTER ONLY IF SUFFICIENT SPACE FOR AIRFLOW IS PROVIDED. - Page 11 Electrical Characteristics Refrig. Temp. Freezer Temp. Net Wt. Ship Wt. Model Volts/Hz, Watts, Range °C (°F) Range °C (°F) Lbs. (kg) Lbs. (kg) Amps 05LCEEFSA 115/60, 150, 1.3 1° to 12° -12° to -20° 100 (46) 120 (55) (34° to 54°) (10.4°...
-
Page 12: Flammable Materials Storage Units
Flammable Materials Storage Units Overview Conventional refrigerators and freezers are not suitable for storing flammable materials. Such units have components in their electrical and refrigeration systems that can trigger explosions of flammable air-vapor mixtures inside the unit. Flammable Materials Storage (FMS) refrigerators/freezers are designed for use in locations, which are not classified by the Authority Having Jurisdiction (AHJ) as hazardous. - Page 13 05FREEFSA Note: THIS UNIT IS DESIGNED FOR FREE STANDING, RECESSED OR UNDER THE COUNTER INSTALLATION. IT IS SUGGESTED THE USER HAVE EASY ACCESS TO THE KEY LOCK. ALLOW FOR 4 INCHES OF ADDITIONAL SPACE AT THE REAR OF FLAMMABLE MATERIAL STORAGE UNITS TO ACCOMMODATE THE THERMOSTAT HOUSING.
-
Page 14: Explosion-Proof Units
Explosion-Proof Units Overview Conventional refrigerators and freezers are not suitable for storing flammable materials. Such units have components in their electrical and refrigeration systems that can trigger explosions of flammable air-vapor mixtures inside the unit and/or in the immediate surrounding area. The Authority having Jurisdiction (AHJ) determines if work areas are designated as a hazardous location with respect to the presence of flammable gases or vapors. - Page 15 05EREEFSA Note: ALLOW 5 INCHES OF ADDITIONAL REAR SPACE FOR EXPLOSION- PROOF UNITS TO ACCOMMODATE THE THERMOSTAT HOUSING. Refrigerator Chamber Total Vol. Exterior Dimensions Model Dimensions Cu. Ft. H x W x D inches (cm) H x W x D inches (cm) 27.75"...
-
Page 16: Options
Options Optional Dolly • 2,000 lb. capacity • Simple wing nut adjustment shortens or lengthens the rollers to fit refrigerators/freezers of various sizes • 18" to 28" adjustable length • 32 ea. 1-1/4" nylon rollers • Non-skid foam rubber corner pads hold unit firmly in place •... -
Page 17: Maintenance
Maintenance Be Advised Make no attempt to service or repair a Fisher Scientific product under warranty before consulting Fisher Scientific. After the warranty period, such consultation is still advised, especially when the repair may be technically sophisticated or difficult. If assistance, please call Fisher Scientific Customer Relations Department: 1-800-438-4851. -
Page 18: Troubleshooting
Troubleshooting In the event that your unit is not operating properly, check the following before calling for service assistance. This may save you the cost of unnecessary service calls. Symptom Possible cause of Problem Unit not operating. Make certain that the unit is connected to a grounded outlet. Make certain that temperature control knob is ON. -
Page 19: Replacement Parts
Replacement Parts To obtain replacement parts information and pricing, please call the Fisher Scientific Customer Relations Department at 1-800-438-4851 and have the unit’s model, serial and code numbers available. This information is located on data plates on the rear of the unit. Isotemp Refrigerators and Refrigerator-Freezers Replacement Parts |... -
Page 20: Warranty
Warranty Laboratory instruments and equipment manufactured by e. Representations and warranties made by any person, Fisher Scientific Company L.L.C. – Laboratory Equipment including dealers and representatives of the Company, Division (hereinafter called “the Company”) are warranted only which are inconsistent or in conflict with the foregoing as stated below. - Page 21 Important For your future reference and when contacting the factory, please have the following information readily available: Model Number : Serial Number : Date Purchased : The above information can be found on the dataplate attached to the equipment. If available, please provide the date purchased, the source of purchase (manufacturer or specific agent/rep organization), and purchase order number.
- Page 22 Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States 057-155-00 Rev.C June 2018...
Need help?
Do you have a question about the Fisher Scientific Isotemp 05FREEFSA and is the answer not in the manual?
Questions and answers

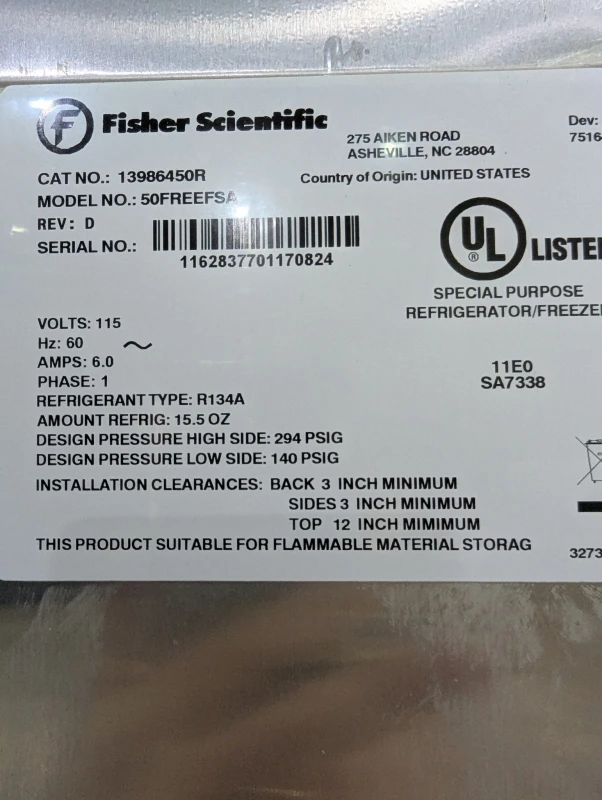

Lost key for refrigerator/freezer need replacement key for Model NO:50FREEFSA
