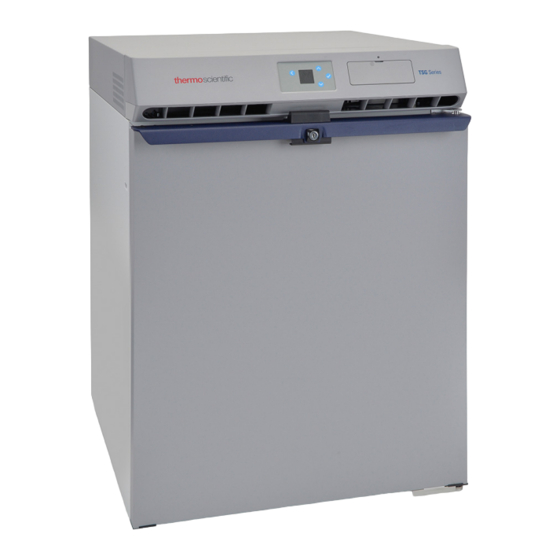

Thermo Scientific TSG Series Installation And Operation Manual
5.5 cu.ft. undercounter refrigerator
Hide thumbs
Also See for TSG Series:
- Installation and operation manual (66 pages) ,
- Installation manual (41 pages) ,
- Installation and operation manual (60 pages)
Related Manuals for Thermo Scientific TSG Series
Summary of Contents for Thermo Scientific TSG Series

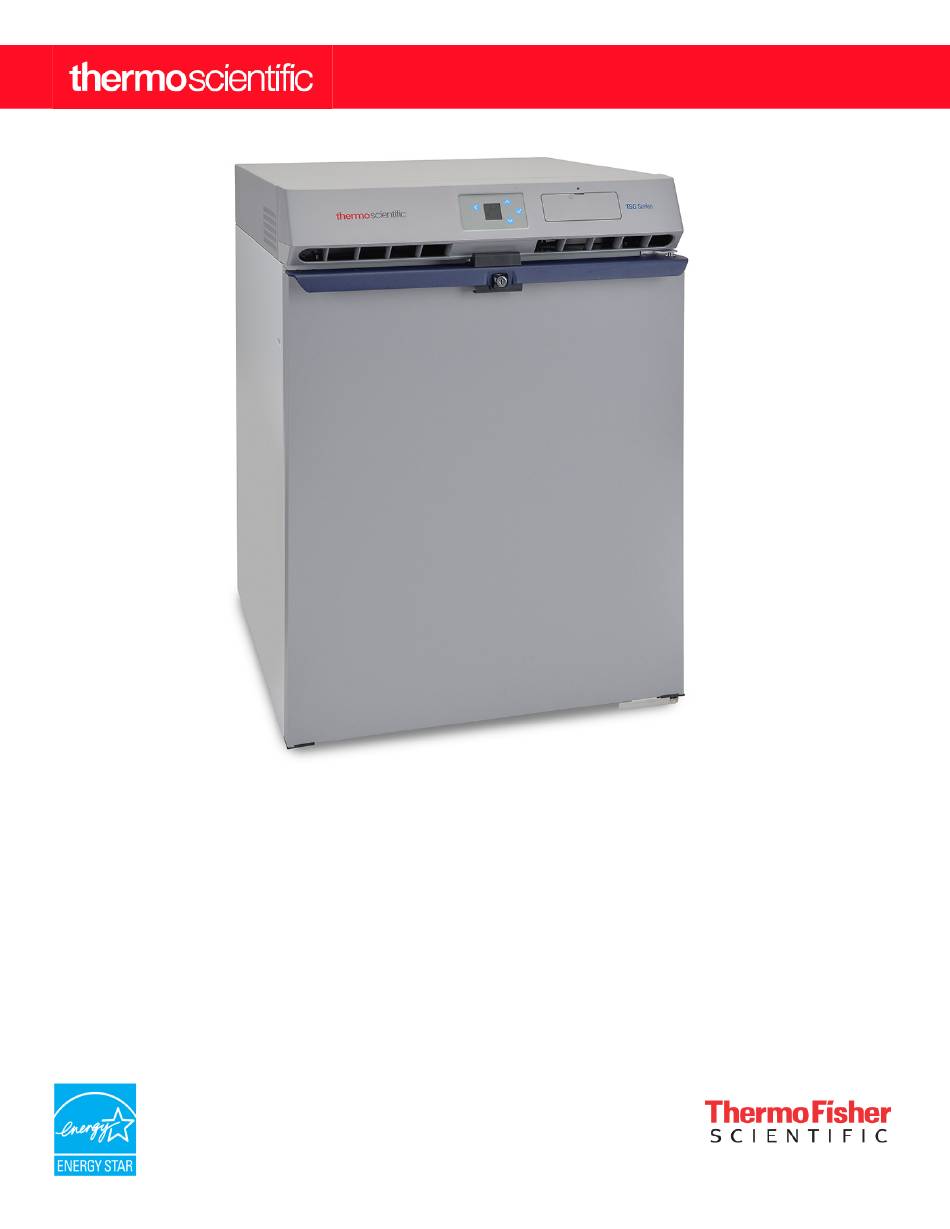

- Page 1 5.5 cu.ft. Undercounter Refrigerator TSG Series Installation and Operation 328966H01 • Revision B • September 2021...
- Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
-
Page 3: Table Of Contents
Contents Product Specifications ..........1 Models ..............1 General Specifications and Features......1 Physical Dimensions..........1 Environmental Operating Conditions......2 ® ENERGY STAR Certification........2 Safety Precautions ............3 System Block Diagram..........5 Unpacking the TSG Refrigerator ........6 Inspecting for Damage ..........6 Unboxing and Locating .......... - Page 4 Tips for Managing Door Openings ......10 Automatic Defrost Cycles ......... 10 Getting To Know Your Product ........11 Product Exterior – Front ........... 11 Product Exterior – Rear ..........12 Product Interior ............12 Navigating TSG 5.5 Cu.Ft. Refrigerator Controls ..13 System Alerts ............
-
Page 5: Product Specifications
Product Specifications Models Model Description TSG505SA TSG Under-Counter Solid door Refrigerator, NEMA 5-15P TSG505GA TSG Under-Counter Glass door Refrigerator, NEMA 5-15P General Specifications and Features Model Style 5.5 cu.ft. Undercounter Refrigerator Materials Durable painted steel exterior with easy-to-clean interior aluminum walls Internal Chamber Capacity 5.5 cu.ft./156 L Chamber Temperature Uniformity... -
Page 6: Environmental Operating Conditions
Environmental Operating Conditions Ambient Operating Temperature 10°C to 32°C at a set-point of 5°C Humidity Requirements Maximum Relative Humidity 65% non-condensing Operating Environment Indoor use only. Violation of this will void the warranty terms Altitude For operation of up to 2,000 m Pollution Degree Warranty 2 years on all parts and labor, 5 years on thermoelectric heat pumps part... -
Page 7: Safety Precautions
Safety Precautions All electrical appliances present some risk of injury. The TSG CAUTION: For Class B - Unintentional refrigerator is designed to meet safety standards. Radiators: This device complies with Part 15 of Take care to carry and move the refrigerator with caution. the FCC Rules. - Page 8 CAUTION: Any modifications made to this device that are not approved by Thermo Scientific may void the authority granted to you by the FCC to operate equipment. CAUTION: Cells/batteries shall be tested and...
-
Page 9: System Block Diagram
System Block Diagram 5.5 cu.ft. Undercounter Refrigerator System Block Diagram |... -
Page 10: Unpacking The Tsg Refrigerator
Unpacking the TSG Refrigerator Inspecting for Damage Identifying all Parts Please take a moment to inspect the new refrigerator for damages that may have occurred during shipping. For any damage done to the refrigerator, please contact the delivery carrier directly. TSG service line does not resolve packaging damage issues. -
Page 11: Installation
Installation Leveling WARNING: Fan has moving parts, product has uninsulated live parts and hot parts. Do not remove the top panel or attempt repairs. For Adjust the leveling feet located underneath the refrigerator by repairs or operating issues call Customer Care at turning clockwise to extend the feet, counter clockwise to 866-984-3766 for guidance and instructions. -
Page 12: Uninterruptable Power Supply (Ups)
Be careful not to plug into a wall outlet controlled by a wall switch to avoid accidentally switching off the refrigerator. To function properly the refrigerator must continually receive power. CAUTION: Risk of electrical shock. If the cord or plug becomes damaged, replace with a cord and plug of the same type and rating. -
Page 13: Operation
Operation LED Indicator Set Point Temperature When you turn on the refrigerator, verify that the LED indicator When you first turn on the unit, the fan will run and the is working. The LED indicator appears on the front control refrigerator will work to reach the default set point panel above the battery. -
Page 14: Tips For Managing Door Openings
Tips for Managing Door Openings When a refrigerator door is opened, warmer ambient air enters and causes the interior temperature to fluctuate. To limit this effect, there are a few simple steps you can follow to reduce the number of times the door is opened as well as the duration it is left opened: •... -
Page 15: Getting To Know Your Product
Getting To Know Your Product Backup Battery Product Exterior – Front Activating the Battery: The included battery is shipped with a protective tab to avoid power drain. To activate it, you must remove the tab from its location inside the I/O Dock panel. Replacing the Battery: 1. -
Page 16: Product Exterior - Rear
Product Exterior – Rear Product Interior Access Port Access port (located on the back side of the unit) is shipped sealed with a foam plug that must be removed prior to use. Additionally, the gray plastic knock-out must be removed. After inserting the device, we recommend reinserting the foam plug as snug and flush as possible to insulate against cooling loss. -
Page 17: Navigating Tsg 5.5 Cu.ft. Refrigerator Controls
Navigating TSG 5.5 Cu.Ft. Refrigerator Controls System Alerts Reading the LCD (Temperature) Display Color Display Scroll Up Back Select Scroll Down System Alert Values Access the Main Menu Alarm Factory Setting Icon Temperature Min 2°C Max 10°C Range Alarm Door Ajar 1 minute Alarm No Power... - Page 18 Alarms Alarm Settings The Alarm Settings menu allows you to Select the high and Active Alarms low temperature alarms. It also lets you choose to enable or disable the low battery alarm. To clear an alarm state, touch any blue button to go to a screen that lists each alarm triggered.
- Page 19 Temperature Set Point Temperature Set Point is where you can select the desired unit set point. Using the up and down arrows scroll through the preset temperature settings. The temperature is set once the Select button is confirmed. Temperature settings are in 0.5 degree increments whether the display is set to Celsius or Fahrenheit.
- Page 20 System Information This displays the current settings which includes set temperature, high/low temp alarms and calibration. Model Information This displays the model number, UI FW version, UI FW date and TEC FW version of the unit. 16 | Navigating TSG 5.5 Cu.Ft. Refrigerator Controls 5.5 cu.ft.
- Page 21 Firmware Firmware updates are conducted via the Firmware menu. A firmware update is in a BIN file format. The BIN file must be saved or uploaded to a USB drive. The user will be prompted to insert the USB drive. Once the BIN file is located and selected by the system, the user taps Apply.
-
Page 22: Maintenance
Maintenance Suitable products for cleaning interior/exterior: The interior may be cleaned, when needed, using a mild detergent and a damp cloth. IMPORTANT: Avoid the use of chlorides (cleaners with bleach) as well as abrasive cleaners and scrubbers such as steel wool. They will degrade the protective coating on the painted steel (product exterior) and leave it vulnerable to rust. -
Page 23: Frequently Asked Questions
What is the product warranty? Thermo Scientific offers a 2-years product warranty on parts and labor, and 5-years warranty on solid-state heat pump part. Is the power cord healthcare/NEMA approved? -
Page 24: Troubleshooting
Troubleshooting Troubleshooting Problems Customer Resolution Unit doesn't power on Check for proper installation of the power plug. Did you just power up the refrigerator and is the system pulling down to set point temperature? Alarm will not sound until the set point is met. Unit's audible alarm doesn't sound when out of temp range Did you have a recent power failure and is the system pulling... -
Page 25: Warranty And Service
Warranty and Service Thermo Scientific warrants to the original purchaser that the 8. This warranty constitutes purchaser’s sole and exclusive equipment shall be free from material defects in material and remedy regarding defects in the equipment and is workmanship under normal use and service during the expressly made in lieu of other warranties, expressed or “Warranty Period,”... - Page 26 This page is intentionally left blank.
- Page 27 Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito www.thermofisher.com/WEEERoHS in Servizi e Supporto.
- Page 28 IF YOU NEED ASSISTANCE: Thermo Fisher Scientific products are backed by a global technical support team ready to support your applications. We offer cold storage accessories, including remote alarms, temperature recorders, and validation services. Visit www.thermofisher.com/cold or call: Countries Sales North America +1 866 984 3766 India toll free...
