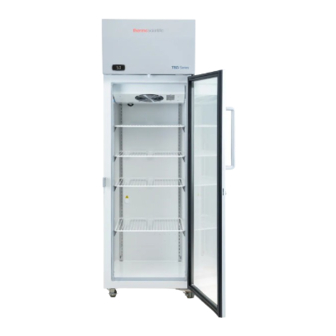

Laboratory & Pharmacy Refrigerators
TSG Series
Installation and Operation
333924H01 • Revision A • 6/13/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSG Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermo Scientific TSG Series

  • Page 1 Laboratory & Pharmacy Refrigerators TSG Series Installation and Operation 333924H01 • Revision A • 6/13/23...
  • Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
  • Page 3: Table Of Contents

    Contents Model................1 Safety Precautions............2 Unpacking..............4 Packing List ..............4 General Recommendations ........5 Temperature Monitoring ......... 5 Door Management ..........5 Intended Use............5 Initial Loading............5 Operating Standards ..........6 Unit Specifications ..........6 Installation..............8 Location ..............
  • Page 4 Operation ..............15 Control Panel ............15 Standard display ............. 17 Navigation ............... 17 Screens ..............19 Programming mode ..........20 Temperature settings ..........20 Direct functions ............20 Calibration (parameters /cc to /cr) ......22 Backup battery............22 Temperature monitoring ......... 22 Alarms and Signals ..........
  • Page 5 Regulatory Compliance ..........32 Product Safety ............32 Hydrocarbon Refrigerants........32 Electromagnetic Compatibility ........ 32 Energy Efficiency............. 33...
  • Page 6: Model

    Model The table below shows the units covered in this operation and installation manual by model number. Table 1. Applicable Models Unit Model (*) Thermo Scientific - TSG1205G* A/D/V Thermo Scientific - TSG1205S* A/D/V Thermo Scientific - TSG1205P* A/D/V Thermo Scientific - TSG2305G*...
  • Page 7: Safety Precautions

    Safety Precautions In this manual, the following symbols and conventions are Below are important safety precautions that apply to this used: product. This symbol when used alone indicates important CAUTION: Use this product only in the way operating instructions which reduce the risk of described in the product literature and in this injury or poor performance of the unit.
  • Page 8 사용자 안내문 이 기기는 업무용 환경에서 사용할 목 적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. WARNING: EMC Registration is done on this equipment for business use only. It may cause interference when the product would be used in home. This equipment has been tested and found to comply with the limits for a Class A digital device.
  • Page 9: Unpacking

    Unpacking At the time of delivery, be sure to inspect the unit packaging for damage before signing for the shipment. If packaging damage is present, request immediate product inspection and file a claim with the carrier. Note: Packaging damage does not denote that unit damage exists.
  • Page 10: General Recommendations

    General Recommendations This section includes some general recommendations for laboratory protocols but in place at your facility. The units are your unit. not for use by the general public. *These products are not considered as medical devices and have not been evaluated for use in environment or Temperature Monitoring applications involving the diagnosis of diseases or other conditions, or in the cure, mitigation, treatment, or prevention...
  • Page 11: Operating Standards

    Operating Standards The units described in this manual are classified for use as stationary equipment in a Pollution Degree 2 and Over voltage Category II environment. These units are designed to operate under the following environmental conditions: • Indoor use •...
  • Page 12 Other specifications are listed in the table below. Table 2. Unit Specifications Glass Solid Power Door Door Exterior Rated Rated Frequency Model Module Unit Unit Dimensions Voltage Current / Phase Plug Weight Weight (D x W x H) † † Kg (lbs) Kg (lbs) 115 V...
  • Page 13: Installation

    Installation *Check the product data plate to confirm model number. WARNING: Risk of Shock. Do not exceed the electrical rating printed on the data plate located Anti-tip Bracket Installation instructions are provided for wood on the upper left side of the unit. and concrete floors.
  • Page 14: Wiring

    1. Locating the Bracket Label Description a. Determine where you want the centerline of the refrigerator to be. Back of Unit b. Place the included template on the floor lined up 1/2" Bolt Location with the centerline of the refrigerator and keep Detailed View 6"- 12"...
  • Page 15 Table 4. Power Cord Specification Power Cord Model Specifications 3-G 12 AWG, NEMA 5-15P, 15 A/125 V 3-G 14 AWG, NEMA 6-15P, 15 A/250 V 3-G 1.5 mm , CEE 7/7, 16 A/250 V CAUTION: Risk of Shock. Never cut the grounding prong from the service cord plug.
  • Page 16: Shelves

    Shelves Installation Instructions Single door laboratory refrigerators come standard with 4 full WARNING: Do not to move this unit while shelves and double door laboratory refrigerators come loaded standard with 8 full shelves. Maximum shelf capacity is 45 kg (100 lbs). 1.
  • Page 17: Remote Alarm (Optional)

    Swinging Doors Remote Alarm (Optional) The doors on all swinging door units are designed to stay All units have factory-installed local alarm contacts that can open if opened 90 degrees or more. The door spring tension be used for remote alarm systems. cannot be adjusted.
  • Page 18: Final Checks

    To install the remote alarm, make the following connections: 1. Connect the COMMON terminal on the cabinet switch to the COMMON wire on the alarm. 2. To get an alarm when the switch contacts open, connect the OPEN ON FAIL terminal on the cabinet to the OPEN ON FAIL wire on the alarm.
  • Page 19: Startup

    Startup Initial Startup unit performance or impede operation of basket. Keep cargo within the bounds of the shelf/basket. • For initial product loading and after removing the baskets To start up the refrigerator, complete the following steps: for cleaning, be sure to load the unit from the bottom 1.
  • Page 20: Operation

    Operation Control Panel Figure 5. Control Panel Display Icons/Buttons Icons Table 6. Keypad Icon/ Description Flashing button Minimum temperature Direct access to minimum recorded temperature Reset minimum and Reset minimum and maximum recorded temperatures maximum temperature (requires confirmation) Maximum temperature Direct access to maximum recorded temperature Set point/Up arrow Increase value Scroll menu...
  • Page 21 Table 6. Keypad Icon/ Description Flashing button Pressed briefly: • enter menu branch • save value and return to the parameter code Program Pressed and held (3 s): • from standby, unlock keypad and enter programming mode • when scrolling, go to the previous parameter •...
  • Page 22: Standard Display

    Standard display Navigation At start-up, the user terminal briefly shows the firmware To navigate the menu tree, use the following buttons: version and then the standard display. The standard display • UP and DOWN to navigate the menu and set the values; depends on the setting of parameter: •...
  • Page 23 Notice: if no button is pressed, after 20 seconds the terminal will automatically return to the standard display. 6. Press PRG to display the first menu item: St (=set point). Press PRG to display the parameter value; 7. Press UP/DOWN to modify the value; 8.
  • Page 24: Screens

    Screens The possible states of the terminal are shown in the table below. Table 8. Screens Icon Status Description The display shows the main value, Standard alternating with any alarms and signals The terminal shows any Display active active loads, loads the keypad is locked...
  • Page 25: Programming Mode

    Programming mode In direct access mode, pressing PRG enters programming mode, where the unit’s main operating parameters can be set. To access the Service parameters, go to the “PSD” menu item (see the table below) and enter the password. The user terminal only provides access to the basic configuration parameters, such as direct functions and active alarms without password protection, or, with password protection (Service).
  • Page 26 Table 11. Programming Parameters Par. Menu Desc. Def. Temperature control set point °C/°F Unit of measure: 0 = °C; 1 = °F Enable buzzer: 0 = disabled; 1 = enabled ∆ High temperature alarm threshold 555/ 999 °C/ °F ∆ Low temperature alarm threshold 200/ 360 °C/ °F...
  • Page 27: Calibration (Parameters /Cc To /Cr)

    Calibration (parameters / blackout. During normal operation, the controller recharges the battery and performs a test every 24 hours to verify cc to /cr) correct operation. The test can also be run manually by pressing a button or via the direct function. Activation of the backup battery can be disabled when the unit is in storage using the boF parameter turned ON within the direct The controller offers the possibility to calibrate values read by...
  • Page 28: Alarms And Signals

    Alarms and Signals five alarms, in a FIFO list (the 6th alarm overwrites the 1st alarm, and so on). The error log can be accessed from the user terminal, via supervisor or Applica app (Bluetooth connection only). Signals Example Display after HI error. Signals are messages shown on the display to notify the user of the control procedures in progress (e.g.
  • Page 29: Alarm Table

    Alarm table Table 14. Alarm Table Display Delay Icon Alarm Effects on Description Buzzer Reset code code (default) display relay control Stop Frost protection Afd (1min) Automatic compressor Battery faulty or not Automatic connected See “Battery Blackout in progress Automatic status”...
  • Page 30 Table 14. Alarm Table Display Delay Icon Alarm Effects on Description Buzzer Reset code code (default) display relay control Compressor operation in Immediate alarm duty setting from external Automatic mode (par. contact A6); dead band OFF Low temperature Ad (120 s) Automatic Output status overridden in...
  • Page 31: Maintenance

    Maintenance Cleaning the Condenser WARNING: Risk of Shock. Disconnect equipment from main power before attempting any maintenance to equipment or its controls unless stated otherwise. CAUTION: Condensers should be cleaned at least every six months; more often if the laboratory area is dusty. In heavy traffic areas, Cleaning the Cabinet condensers load with dirt more quickly.
  • Page 32: Gasket Maintenance

    Gasket Maintenance Periodically check the gaskets around the door for punctures or tears. Leaks are indicated by condensation or frost which forms at the point of gasket failure. Make sure that the cabinet is level (refer to Location for leveling information). Keep the door gaskets clean and frost free by wiping gently with a soft cloth.
  • Page 33: Troubleshooting

    Troubleshooting WARNING: Troubleshooting procedures involve working with high voltages which can cause injury or death. Troubleshooting should only be performed by Factory Authorized Service Personnel. This section is a guide for troubleshooting equipment problems. Component parts must be replaced only with like components. Table 16.
  • Page 34 Table 16. Troubleshooting Procedure Problem Cause Solution Door is open Make sure the door is completely closed. Door seal check Check the door seal. Warm product recently loaded in Allow ample time to recover from loading warm unit product. Check for proper voltage to the unit. If there is no Power supply voltage to the unit, call an electrician.
  • Page 35: End Of Life Care

    End of Life Care Some considerations and suggestions are listed below for proper disposal of this product. While addressing these actions for safe recycling and disposal, please follow all guidelines, Safety Data Sheets (SDS), or regulations applicable to your country and region. •...
  • Page 36: Warranty

    Warranty International Warranty • 48 Months Parts and Labor, 5 years for compressor parts During the first forty eight (48) months from shipment, Thermo Fisher Scientific Inc, through its authorized Dealer or service organizations, will at its option and expense repair or replace any part found to be non-conforming in material or workmanship. Thermo Fisher Scientific Inc reserves the right to use replacement parts, which are used or reconditioned.
  • Page 37 Regulatory Compliance Product Safety Product Testing This product family has been tested to applicable product safety standards by a Nationally Recognized Test Laboratory (NRTL) and may bear the NRTL’s mark of safety compliance to those applicable standards. Hydrocarbon Refrigerants According to U.S. Code of Federal Regulation 40 Part 82, this refrigerator employs the natural hydrocarbon refrigerant R290. Because of the nature of hydrocarbon refrigerants, for mechanical repair, such as recharge or compressor replacement, should only be carried out by a certified refrigeration technician.
  • Page 38 Korean KC Registration 사용자 안내문 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용 하는 경우 전파간섭의 우려가 있습니다. WARNING: EMC Registration is done on this equipment for business use only. It may cause interference when the product would be used in home.
  • Page 39 This page is intentionally left blank...
  • Page 40 Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che pos- sono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito www.thermofisher.com/WEEERoHS.
  • Page 41 IF YOU NEED ASSISTANCE: Thermo Fisher Scientific products are backed by a global technical support team ready to support your applications. We offer cold storage accessories, including remote alarms, temperature recorders, and validation services. Visit www.thermofisher.com/cold or call: Countries Sales North America +1 866 984 3766 India toll free...
