Summary of Contents for Thermo Scientific 05LRAETSA

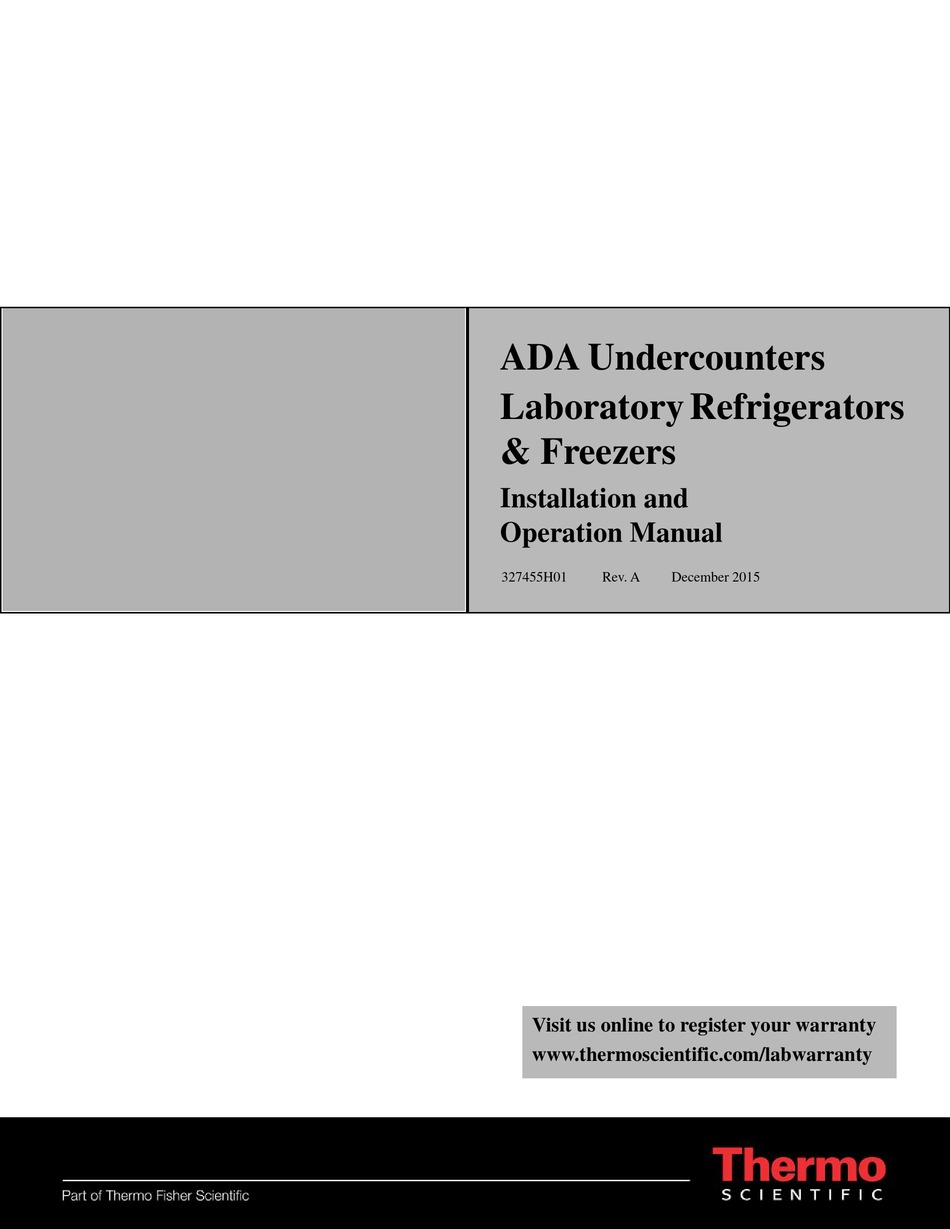

- Page 1 ADA Undercounters Laboratory Refrigerators & Freezers Installation and Operation Manual 327455H01 Rev. A December 2015 Visit us online to register your warranty www.thermoscientific.com/labwarranty...
- Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
-
Page 3: Table Of Contents
Installation Instruction............5 Basic Installation..............5 Door Handle Installation............5 Reversing The Door Swing..........6 Clearance................7 Operating Instructions ............8 Refrigerator (05LRAETSA) ..........8 Freezer (04LFAETSA) ............9 Maintenance Instructions............10 Cleaning Instructions ............. 10 Trouble shooting Guide............11 Common Issues ..............11 Digital Controller Parameters &... -
Page 4: Intended Use
Intended Use 1 Intended Use This unit is intended for storage of non-flammable general laboratory products. The Refrigerators/Freezers described in this manual are for professional use only. These products are intended for use in research for the storage of samples or inventory in the following temperature ranges: Refrigerators +1 °C to +12 °C... -
Page 5: Safety Precautions
Safety Precautions 2 Safety Precautions In this manual and on labels attached to this product, the words WARNING and CAUTION mean the following : SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, WARNING which, if not avoided, could result in death or serious injury. -
Page 6: Specifications
Specifications 3 Specifications 3.1 General Specifications Model 05LRAETSA 04LFAETSA Model Style Under-counter Under-counter Capacity 5.5 cu ft (156 Liters) 3.5 cu ft (99 Liters) Exterior Dimensions: 32 X 23.63 X 24 32 X 23.63 X 24.25 (H X W X D) in inches Operating temperature range +1°... -
Page 7: Introduction
ADA under-counters General Purpose laboratory Refrigerator & Freezer models. All models, includes : • Factory set temperature set point • Keyed door locks • CFC-free refrigerant • Quiet, hermetically sealed refrigeration compressors. 04LFAETSA 05LRAETSA Installation and Operation Manual ADA Undercounters - Laboratory Refrigerators & Freezers... -
Page 8: Installation Instruction
Installation Instruction 5 Installation Instruction 5.1 Basic Installation This product is a complete packaged unit ready to operate when plugged into an electrical source. Read all the instructions before proceeding with installation. 1. The cabinet will pass through a standard 30’’ door opening. 2. -
Page 9: Reversing The Door Swing
Installation Instruction 5.3 Reversing The Door • This appliance can be opened from either the right side or the left. By default, the door hinge is on the right side. If you prefer it on the left, Swing please follow below instructions. Holes on the opposite side have already been prepared at the factory. -
Page 10: Clearance
Appropriate clearance should be maintained for proper operation of the unit. Be- low table details the clearance needed for refrigerator and freezer: Model Top inches Rear inches Sides inches 05LRAETSA 1/16 3/16 04LFAETSA ADA Undercounters - Laboratory Refrigerators & Freezers Installation and Operation Manual... -
Page 11: Operating Instructions
Operating Instructions 6 Operating Instructions 6.1 Refrigerator (05LRAETSA) 6.1.1 Temperature Control • Operate the unit for several hours to allow the cabinet to reach normal operating temperatures before storing product. • Your appliance’s evaporator system is out of sight behind the interior rear wall. -
Page 12: Freezer (04Lfaetsa)
Operating Instructions 6.1.2 Defrosting Your This product operates using a manual defrost system. While the compressor is Appliance operating, ice will build along the rear cold wall (the evaporator plate is behind the wall). During the compressor’s off-cycle, ice will melt, drip down, collect in the trough at the bottom and drain through a small hole into a tray above the compressor, where the compressor’s heat will evaporate the water. -
Page 13: Maintenance Instructions
Maintenance Instructions 7 Maintenance Instructions 7.1 Cleaning Instructions • Unplug the appliance, remove all contents, including shelves & drawers. • Wash the inside surfaces with a solution of lukewarm water and vinegar. Wipe dry with a clean, soft cloth. • Wash the shelves, drip tray and crisper with a mild detergent solution, then rinse and dry thoroughly. -
Page 14: Trouble Shooting Guide
Trouble shooting Guide 8 Trouble shooting Guide 8.1 Common Issues Symptom Possible Cause of Problem Unit not operating. Make certain that the unit is connected to a grounded outlet. Make certain that the temperature control is ON in freezers and thermostat knob is not at “0” position in Refrigerators. Check that circuit breaker is not tripped or fuse is not blown. -
Page 15: Digital Controller Parameters & Operation Guide
Digital Controller Parameters & Operation Guide Digital Controller Parameters & Operation Guide Every Control Group EVK201 10 11 Programming procedure Temperature Set Point Power supply Control circuit Active IN 240 VAC Press “set” button once, will flash Active to: compressor or Press to set the desired value Temperature sensor... -
Page 16: Month Limited Warranty
13 Month Limited Warranty 13 Month Limited Warranty This product is warranted to be free of defects in materials and workmanship for one (13) months from the first to occur of (i) the date the product is sold by the manufacturer or (ii) the date the product is purchased by the original retail customer (the “Commencement Date”). - Page 17 Further information on our compliance with these Directives, the recyclers in your country, and information on Thermo Scientific products which may assist the detection of substances subject to the RoHS Directive are available at www.thermo.com/...
-
Page 18: Notes
NOTES NOTES ADA Undercounters - Laboratory Refrigerators & Freezers Installation and Operation Manual... - Page 19 NOTES NOTES Installation and Operation Manual ADA Undercounters - Laboratory Refrigerators & Freezers...
- Page 20 (manufacturer or specific agent/rep organization), and purchase order number. IF YOU NEED ASSISTANCE: Thermo Scientific products are backed by a global technical support team ready to support your applications. We also offer cold storage accessories, including remote alarms, temperature recorders and validation services.
- Page 21 Thermo Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States www.thermofisher.com 327455H01 Rev.A...
