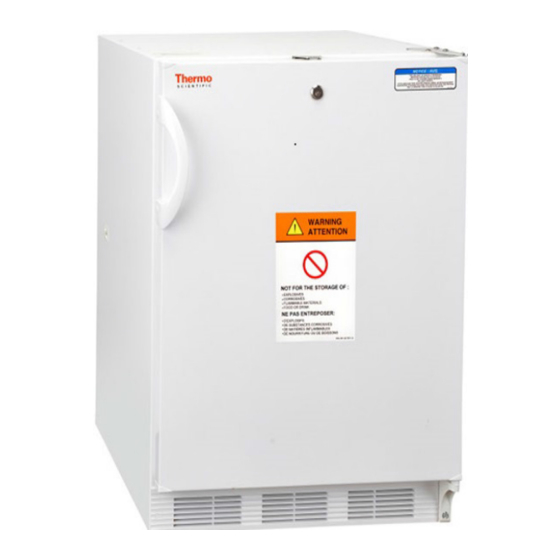

- Page 1 Thermo Scientific General Purpose, Flammable Storage, and Explosion Proof Laboratory Refrigerators and Freezers Installation and Operation Manual 057-196-00 Rev. E June 2016 Visit us online to register your warranty www.thermoscientific.com/labwarranty...
- Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
- Page 3 Refrigerators, Refrigerator-Freezers and Freezers Explosion Proof Flammable Material Storage General Purpose 10ECEETSA 10FCEETSA 05LCEETSA 10ECEETSV 10FCEETSV 05LCEETSV 05EREETSA 05FREETSA 05LREETSA 05LREETSV 04LFEETSA 02LFEETSA 10LCEETSV 10LCEETSA 12LCEETSA...
-
Page 4: Table Of Contents
Cleaning of Units ............... 26 Interior/Exterior and Door Gaskets........26 Condenser................26 Manual Defrost Procedure ..........26 Reversing the Front Door (Model 10ECEETSA)............28 Reversing the Front Door (Model 05FREETSA, 05EREETSA and 05LREETSA) ..28 Reversing the Front Door (Model 12LCEETSA)............29 Reversing the Front Door (Model 02LFEETSA) ............ -
Page 5: Safety Information
Safety Information 1 Safety Your satisfaction and safety are important to Thermo Scientific and a complete Information understanding of this unit is necessary to attain these objectives. As the ultimate user of this apparatus, it is your responsibility to understand its proper function and operational characteristics. -
Page 6: Intended Use Statement
Units are to be used for the storage of flammable inventory/samples. Note Do not store corrosive materials in these units. Any damage which occurs due to storage of corrosives will not be covered under warranty claims. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers... -
Page 7: Explosion-Proof Refrigerators And Freezers
*The notation Class 1, Groups C and D is an accepted abbreviation for Class I, Div 1, Groups C and D; Class I Zone 1 Group IIB. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... - Page 8 1° to 12° -12° to -20° 10ECEETSV 230/50, 1 (33.8° to 53.6°) (10.4° to -4°) (54.4) (68) Note Amps listed are at normal run mode, starting amps may be higher. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
- Page 9 Range °C (°F) Lbs. (kg) Volts/Hz, Amps Lbs.(kg) 1° to 12° 05EREETSA 115/60, 1.0 (33.8° to 53.6°) (45.3) (54.4) Note Amps listed are at normal run mode, starting amps may be higher. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual...
-
Page 10: Flammable Materials Storage Refrigerators And Freezers
All models have heavy-gauge, rigid, steel construction with a durable enamel finish. Interiors have epoxy enamel or ABS plastic construction. Each unit is insulated throughout for energy-efficient operation. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers... - Page 11 1° to 12° -12° to -20° 10FCEETSV 230/50, 1.5 (33.8° to 53.6°) (10.4° to -4°) (54.4) (68) Note Amps listed are at normal run mode, starting amps may be higher. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual...
- Page 12 Range °C (°F) Lbs. (kg) Lbs. (kg) 1° to 12° 05FREETSA 115/60, 1.0 120 (54.4) (33.8° to 53.6°) (45.4) Note Amps listed are at normal run mode, starting amps may be higher. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
-
Page 13: General-Purpose Laboratory Refrigerators/Freezers
-12° to -20° 05LCEETSA 115/60, 1.3 (33.8° to 53.6°) (10.4° to -4°) (45.4) (54.4) 1° to 12° -12° to -20° 05LCEETSV 230/50, 0.5 (33.8° to 53.6°) (10.4° to -4°) (45.4) (54.4) Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... - Page 14 115/60, 1.0 (33.8° to 53.6°) (40.82) (45.4) 1° to 12° 05LREETSV 230/50, 0.5 (33.8° to 53.6°) (40.82) (45.4) Note Amps listed are at normal run mode, starting amps may be higher. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
- Page 15 Range °C (°F) Lbs. (kg) Volts/Hz, Amps Lbs.(kg) -12° to -20° 04LFEETSA 115/60, 1.3 (10.4° to -4°) (45.4) (54.4) Note Amps listed are at normal run mode, starting amps may be higher. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual...
- Page 16 Lbs. (kg) Lbs. (kg) Volts/Hz, Amps -12° to -25° 02LFEETSA 115/60, 0.8 (10.4° to -13°) (19.50) (24.04) Note Amps listed are at normal run mode, starting amps may be higher. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
- Page 17 1° to 12° -12° to -20° 10LCEETSV 230/50, 1.0 (34° to 53.6°) (10.4° to -4°) (54.4) (68) Note Amps listed are at normal run mode, starting amps may be higher. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual...
- Page 18 1° to 12° -12° to -20° 12LCEETSA 115/60, 1.8 (34° to 53.6°) (10.4° to -4°) (87) (113.9) Note Amps listed are at normal run mode, starting amps may be higher. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
-
Page 19: Unpacking And Installation
Model Top, in. Rear, in. Sides, in. 05LREETSA/05LREETSV/10LCEETSV/10LCEETSA/05LCEETSA/05LCEETSV/ 04LFEETSA 05EREETSA/10ECEETSA/10ECEETSV/10FCEETSA/10FCEETSV/05FREETSA 12LCEETSA 02LFEETSA Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... -
Page 20: Electrical
This should be done by a licensed electrician and follow all local and electrician and follow all local electrical codes. If any questions pertaining to electrical safety arises, please refer to article 501 of the National Electrical Code. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers... - Page 21 Killark box and a resulting serious explosion. After the unit wires have been pulled through the horizontal conduit the following procedure is required: • Turn power off at the circuit breaker before proceeding. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual...
- Page 22 • Locate silver Killark box, back/top-center of unit. • Unscrew conduit domed-cover. Figure 2. Sealing the Killark Box Figure 3. Horizontal Conduit, Cutaway Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
- Page 23 Note INITIAL SETUP OF SEALING COMPOUND WILL OCCUR IN APPROXIMATELY 30 MINUTES HOWEVER, THE SEALING COMPOUND REQUIRES A MINIMUM OF 8 HOURS ABOVE 32ºF TO DEVELOP SUFFICIENT STRENGTH TO WITHSTAND EXPLOSIONS. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual...
-
Page 24: Operation
6.3 Restart Procedure If unit is unplugged or turned off, allow 3 minutes before restarting or plugging it back in. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers... -
Page 25: Control Panel Lights
We recommend setting the thermostat on positions towards max only in case you want to accelerate cooling or when the operation mode shall correspond to the ambient temperature. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... - Page 26 Choose correct setting of the thermostat knob. Red Control Light The red light is on when there is something wrong with the temperature in the freezer. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
-
Page 27: How To Save Energy
As soon as frost has accumulated to 1/4", defrost. • Keep containers covered, when possible, to reduce moisture buildup. • Set operating temperature no colder than necessary for the items being refrigerated. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... -
Page 28: Safety Tips
• Do not use a power cord that shows cracks or abrasions. Have a qualified electrician repair or replace damaged cords immediately. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers... -
Page 29: Troubleshooting
Hissing or gurgling noise is caused by refrigerating fluid circulating and is normal. Noise can result if unit is not level on floor. Check with level. Fan noise: normal airflow can cause this, not a problem. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... -
Page 30: Maintenance
Note Make no attempt to service or repair a Thermo Scientific product under warranty before consulting your Thermo Scientific dealer. After the warranty period, such consultation is still advised, especially when the repair may be technically sophisticated or difficult. - Page 31 When frost accumulates to 1/4" or more, the operating efficiency of the unit will be affected. Note For 12LCEETSA, collect the drain water into the drip pan as shown in Figure 4. Figure 4. Model 12LCEETSA Illustrating drip pan position Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual...
-
Page 32: Reversing The Front Door (Model 10Eceetsa)
4. Remove the buffer by unscrewing the bolts on both of its sides. 5. Break off the part behind the buffer through which the lower hinges pass using a knife or your hands. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers... -
Page 33: Reversing The Front Door (Model 12Lceetsa)
4. Remove the top hinge while holding the door. 5. Lift the door carefully from the middle hinge. 6. Remove the middle hinge and lift the lower door off of pivot. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... - Page 34 10. Mount the upper door on pivot and fasten the upper hinge on opposite side then tighten screws. 11. For adjustment of doors, loosen screws and reposition door into place and tighten screws. 12. Move handle to opposite side of door. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers...
-
Page 35: Reversing The Front Door (Model 02Lfeetsa)
The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, you can refer to (Model 02LFEETSA) the diagram below. Thermo Scientific Laboratory Refrigerators and Freezers Installation and Operation Manual... -
Page 36: Replacement Parts
Parts Customer Service Department at 1-800-438-4851 and have the unit’s model, serial and code numbers available. This information is located on data plates on the left side of the unit. Installation and Operation Manual Thermo Scientific Laboratary Referigerators and Freezers... -
Page 37: Ordering Procedures
All parts listed herein may be ordered from the Thermo Scientific dealer from whom you purchased this unit or can be obtained promptly from the factory. -
Page 38: One Year Limited Warranty
One Year Limited Warranty 13 One Year This Thermo Scientific product is warranted to be free of defects in Limited Warranty materials and workmanship for one (1) year from the first to occur of (i) the date the product is sold by the manufacturer or (ii) the date the product is purchased by the original retail customer (the “Commencement Date”). - Page 39 EU Member State, and this product should be disposed of or recycled through them. Further information on our compliance with these Directives, the recyclers in your country, and information on Thermo Scientific products which may assist the detection of substances subject to the RoHS Directive are available at www.thermo.com/ Deutschland WEEE Konformittät.
- Page 40 (manufacturer or specific agent/rep organization), and purchase order number. IF YOU NEED ASSISTANCE: Thermo Scientific products are backed by a global technical support team ready to support your applications. We also offer cold storage accessories, including remote alarms, temperature recorders and validation services.
- Page 41 Thermo Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States www.thermofisher.com 057-196-00 Rev. E...
