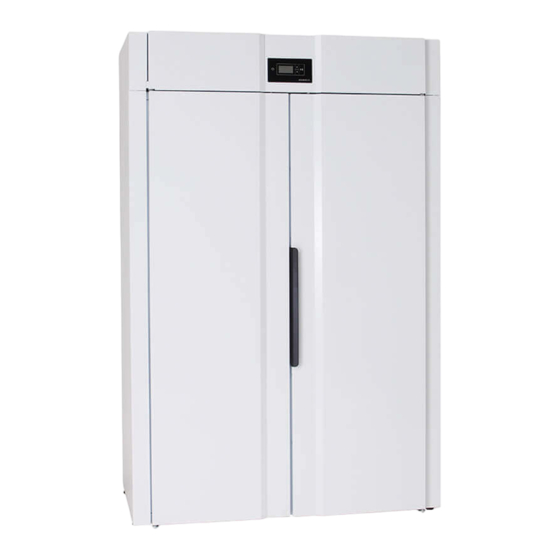

Drying cabinet

Advertisement

Quick Links

FT 120 FL
427001088
Store this manual so that
it is always available for
ENG Drying Cabinet
Service Manual
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO FT 120 FL and is the answer not in the manual?

Questions and answers

Summary of Contents for NIMO PRO FT 120 FL

  • Page 1 FT 120 FL 427001088 Store this manual so that it is always available for ENG Drying Cabinet Service Manual future reference.
  • Page 2 Drying Cabinet FT120FL Type plate (inside) Designation of the drying cabinet Part number Serial number (8 digits) Manufacturer: NIMO-VERKEN AB We reserve the right to make changes to this documentation. Box 124 S-548 22 HOVA, Sweden Printed on eco-paper that meets the require- Tel +46 (0) 506 488 00 ments of Miljöförbundet and Naturskydds-...
  • Page 3: Table Of Contents

    Contents Protection against overheating Drying cabinet FT120FL Electrical circuit diagram Overheating protection Main regulation Moving the hanger 5.2.1 Reset Programming Troubleshooting Control panel General 4.1.1 Buttons Error codes 4.1.2 Display Language setting Technical data Drying programmes Removal of front hatch Optimizing the drying programme Spare parts...
  • Page 4: Drying Cabinet Ft120Fl

    1 Drying cabinet FT120FL Exhaust duct Control panel Swingable Wall mount hanger Heating part Cabinet part ENGLISH...
  • Page 5: Electrical Circuit Diagram

    2 Electrical circuit diagram ENGLISH...
  • Page 6: Moving The Hanger

    3 Moving the hanger The hanger can be mounted on the left or the right side. To move the rack from the right to the left side, please do the following: Remove the drying rack by lifting it up and pulling it outwards. Loosen the lower bracket (A) by removing the screws (B) from the inside.
  • Page 7: Programming

    4 Programming 4.1 Control panel 4.1.1 Buttons The user interface consists of four touch buttons. The buttons have two functions. UP ARROW, increases START / STOP, starts and stops the ON / OFF values or moves up programme. confirms a selection the programmes.
  • Page 8: Language Setting

    4.2 Language setting The following languages are available: English, Swedish, Norwegian, Danish, Finnish, French. and German. Make sure that the main power switch ON/ Press the START/STOP button to confirm. OFF on the cabinet is in the OFF position. The The line will flash with the current language.
  • Page 9: Drying Programmes

    4.3 Drying programmes The drying cabinet has four drying programmes: Aut 40° Normal Aut 40° Extra Aut 60° Normal Aut 60° Extra The programmes will turn off the drying process automatically when the textiles are dry. SELECTING A DRYING PROGRAMME Normal - Used for drying garments of normal thickness.
  • Page 10: Optimizing The Drying Programme

    4.4 Optimizing the drying programme 4.4.1 Introduction The automatic programme of the drying cabinet can be optimized with the control panel buttons, when the drying cabinet is in programming mode. Only make adjustments, if: the laundry is not dry enough the laundry is being dried for too long - long drying time 4.4.2 Parameter list Parameter Name...
  • Page 11: Adjustment

    4.4.3 Adjustment Programme Aut 40° Normal is controlled by the temp. sensor for exhaust air. Programme Aut 40° Extra is controlled by the temp. sensor for exhaust air and a time factor. Programme Aut 60° Normal is controlled by the temp. sensor for exhaust air. Programme Aut 60°...
  • Page 12: Programming

    4.4.4 Programming The optimization of the automatic drying programs for the drying cabinet and the activation/deacti- vation of the child lock is performed in the programming mode. Make sure that the main power switch ON/OFF on the cabinet is in the OFF position. The display will be black.
  • Page 13: Child Lock

    4.5 Child lock 4.5.1 Introduction The child lock mode is a safety feature to prevent the drying process from being started or stopped accidentally. This functionality means that all the buttons must be pressed for at least 3 seconds for the required activity.
  • Page 14: Protection Against Overheating

    5 Protection against overheating The cabinet has double protection against overheating. Overheating protection - reset by the user. Main regulation - reset by the service personnel. 5.1 Overheating protection If the cabinet overheats during operation, the electric elements turn off and the fan continues to run. ‘ERR 05’.
  • Page 15: Troubleshooting

    6 Troubleshooting 6.1 General Questions What you can do The drying cabinet is 1. Check the mains connection and that there is power. not working 2. Check that none of the fuses has blown. 3. Have you pushed the start button? 4.
  • Page 16: Error Codes

    6.2 Error codes Name. Description / Action Replace the temp. sensor. See Spare Parts, pos. 303. ERR 01 Temp. sensor malfunction, cabinet Replace the temp. sensor. See Spare Parts pos 306 ERR 02 Temp. sensor malfunction, exhaust ERR 04 Max. time for the Possible cause - Broken heating elements.
  • Page 17 1200 1860 1100 F diam. 1880 1 Electrical connection, external fan 2 Electrical connection, mains 3 Exhaust air connection 4 Control panel ENGLISH...
  • Page 18: Removal Of Front Hatch

    8 Removal of front hatch Guide flanges Front hatch Open the doors Detach two Torx T30 screws underneath the front hatch as illustrated. Slide the front hatch up- wards until it comes free Two fixing from the guide flanges. screws for the Lift down.
  • Page 19: Spare Parts

    9 Spare parts 9.1 Upper part 9.1.1 Components Label kit Damper Mounting screw Washer Wall mount Cover Back piece Back rail Side, left Front rail Front Alt. Front adapted for use by disabled persons Side, right ENGLISH...
  • Page 20 9.1.2 Components Se 6.1 .3 Heating element Control panel Overheating protection Service hatch Fan motor Touch protection Filter Lamp Lamp glass ENGLISH...
  • Page 21: Components

    9.1.3 Components Grommet Condenser Grommet Clips Temp. sensor, cabinet Door switch Thermostat Thermostat Label Grommet Temp. sensor, exhaust air Terminal block Mounting bracket Circuit board Contactor Cable, Circuit board Control panel ENGLISH...
  • Page 22: Lower Part

    9.2 Lower part ENGLISH...
  • Page 23 Side, left Drum, left Rear beam Front beam Spoiler Drum, right Side, right Bottom Door L Door R alt. Door R, adapted for use by disabled persons Hanger Back piece, left Back piece, right Hinge spindle Hinge Bolt for upper hanger bracket Washer Spindle for upper hanger...
