SolConeX
Flanschsteckdose, 16 A
SolConeX

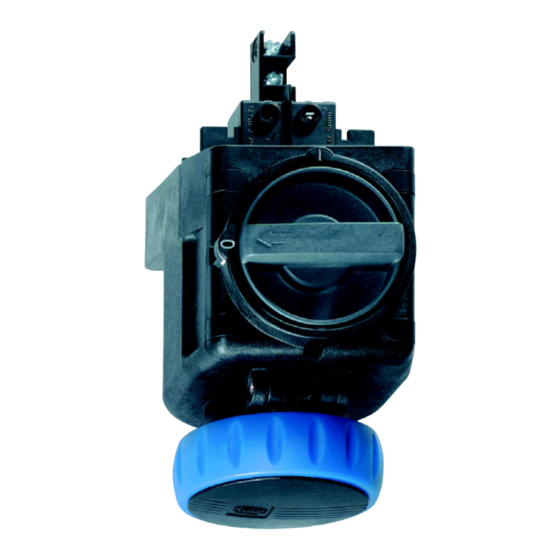

Flange Socket, 16 A
Reihe 8570/15
Series 8570/15
Betriebsanleitung
Operating instructions
Additional languages www.stahl-ex.com
DE EN
DE
EN
DE
EN
DE
EN
DE
EN
DE
EN
DE
EN
DE
EN
DE
EN
DE

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SolConeX 8570/15 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Stahl SolConeX 8570/15 Series

  • Page 1 Betriebsanleitung Operating instructions Additional languages www.stahl-ex.com DE EN SolConeX Flanschsteckdose, 16 A SolConeX Flange Socket, 16 A Reihe 8570/15 Series 8570/15...
  • Page 3 Betriebsanleitung Additional languages www.stahl-ex.com SolConeX Flanschsteckdose, 16 A Reihe 8570/15...
  • Page 4: Table Of Contents

    10.2 Wartung ......................14 10.3 Reparatur ......................15 10.4 Rücksendung ....................15 Reinigung ......................15 Entsorgung ......................15 Zubehör und Ersatzteile ...................15 Allgemeine Angaben Hersteller R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel.: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...
  • Page 5: De De

    • IEC 60079-7 • IEC 60079-11 • IEC 60309 • IEC 61241-0 • IEC 61241-1 Weitere Normen: Siehe Zertifikate und EG-Konformitätserklärung: www.stahl-ex.com. Erläuterung der Symbole Symbole in der Betriebsanleitung Symbol Bedeutung Tipps und Empfehlungen zum Gebrauch des Geräts Gefahr allgemein Gefahr durch explosionsfähige Atmosphäre...
  • Page 6: 2.2 Warnhinweise

    Erläuterung der Symbole Warnhinweise Warnhinweise unbedingt befolgen, um das konstruktive und durch den Betrieb bedingte Risiko zu minimieren. Die Warnhinweise sind wie folgt aufgebaut: • Signalwort: GEFAHR, WARNUNG, VORSICHT, HINWEIS • Art und Quelle der Gefahr/des Schadens • Folgen der Gefahr •...
  • Page 7: Sicherheitshinweise

    Bemessungsbetriebsbedingungen) auf Typ- und Datenschildern sowie die Hinweisschilder am Gerät mit den Kabel- und Leitungseinführungen beachten. • Bei Betriebsbedingungen, die von den technischen Daten abweichen, unbedingt bei der R. STAHL Schaltgeräte GmbH rückfragen. Umbauten und Änderungen WARNUNG Gefahr durch Umbauten und Änderungen am Gerät! Explosionsschutz gefährdet!
  • Page 8: 5 Technische Daten

    Technische Daten Technische Daten Explosionsschutz Global (IECEx) Gas und Staub IECEx PTB 05.0023 Ex db eb IIC T6 Gb Ex tb IIIC T80°C Db Europa (ATEX) Gas und Staub PTB 03 ATEX 1227 E II 2 G Ex db eb IIC T6 Gb E II 2 D Ex tb IIIC T80°C Db Sonderausführung E II 2 (1) G Ex db eb [ia Ga] [ib] IIC T6 Gb...
  • Page 9: 6 Transport Und Lagerung

    5000 Schaltzyklen (elektrisch und mechanisch) Anzugsdrehmoment Klemmen: 1,2 Nm Flanschsteckdose: max. 1,0 Nm Weitere technische Daten, siehe www.stahl-ex.com. Transport und Lagerung • Gerät nur in Originalverpackung transportieren und lagern. • Gerät trocken (keine Betauung) und erschütterungsfrei lagern. • Gerät nicht stürzen.
  • Page 10 Montage und Installation ø 85 [ø 3,35 ±0, 0 ±0,01 ±0,20 ±0,10 [1,54 ±0,01 ±0,004 ø 4,50 ±0,10 [ø 0,18 ±0,004 3,07 ±0,20 ±0,01 [ , 7 ±0,20 ±0,01 97 [3,82] ~ 136,5 [~ 5,37] 11476E00 11475E00 8570/15-4.. und 8570/15-5.. Öffnungsbild Flanschsteckdose Ausführungen...
  • Page 11 Montage und Installation Kennfarbe und Anordnung der Kontaktbuchsen und Klemmenbezeichnungen Polzahl* Frequenz Spannung Kennfarbe Lage der [Hz] Schutzkontaktbuchse 8570/15-3.. 50 und 60 110 ... 130 gelb 2 P + ¿ 50 und 60 200 ... 250 blau hellgrau 50 und 60 480 ...
  • Page 12: Montage / Demontage, Gebrauchslage

    Montage und Installation Montage / Demontage, Gebrauchslage Die Flanschsteckdose sowie der Anschlussraum, in dessen Wand sie montiert wird, sind Teilgeräte im Sinne der Richtlinie 94/9/EG (siehe ATEX-Leitlinie (Guidelines), September 2012, Abschnitt 3.7.5). Die Teilgeräte müssen durch eine verantwortliche Person vervollständigt werden. Die so erstellte Baugruppe – als einzelne funktionelle Einheit –...
  • Page 13: Installation

    Montage und Installation Installation WARNUNG Gefahr durch spannungsführende Teile! Schwerste Verletzungen möglich! • Alle Anschlüsse und Verdrahtungen spannungsfrei schalten. • Anschlüsse gegen unbefugtes Schalten sichern. GEFAHR Explosionsgefahr! Verletzungen und Sachschäden drohen! • Durch geeignete Leiterauswahl sicherstellen, dass maximal zulässige Leitertemperaturen nicht überschritten werden. •...
  • Page 14 Montage und Installation Abmessungen [mm] Hauptkontakte Hilfskontakte Hilfskontakte Ex i • Gehäuse öffnen. • Kabel durch Kabeleinführung in Anschlussraum führen. • Leitungsmantel so entfernen, dass Kabeleinführung noch sicher klemmen kann (*). • Leitungen in entsprechende Klemmen einführen und 11201E00 festklemmen (max. 1,2 Nm). Die abisolierten Leitungsenden müssen sich vollständig unter der Klemmplatte befinden.
  • Page 15: Betrieb

    • Die Flanschsteckdose ist nur bei eingestecktem Stecker schaltbar. • Bei gezogenem Stecker Klappdeckel mit dem Bajonettring verschließen. Es dürfen ausschließlich Stecker vom Typ 8570/12 und 8575/12 der Fa. R. STAHL verwendet werden. 150651 / 8570603300 SolConeX Flanschsteckdose, 16 A 2016-04-22·BA00·III·de·07...
  • Page 16: Instandhaltung, Wartung, Reparatur

    Instandhaltung, Wartung, Reparatur Instandhaltung, Wartung, Reparatur WARNUNG Unbefugte Arbeiten am Gerät! Gefahr von Verletzungen und Sachschäden! • Arbeiten am Gerät ausschließlich von dazu befugtem und entsprechend geschultem Personal ausführen lassen. 10.1 Instandhaltung • Art und Umfang der Prüfungen den entsprechenden nationalen Vorschriften entnehmen.
  • Page 17: 10.3 Reparatur

    10.3 Reparatur GEFAHR Gefahr durch unsachgemäße Wartung/Reparatur! Explosionsschutz gefährdet! • Reparaturen am Gerät nur von R. STAHL Schaltgeräte GmbH durchführen lassen. 10.4 Rücksendung Für die Rücksendung im Reparatur-/Servicefall das Formular "Serviceschein" verwenden. Auf der Internetseite "www.stahl-ex.com" im Menü "Downloads >...
  • Page 18 SolConeX Flanschsteckdose, 16 A 150651 / 8570603300 Reihe 8570/15 2016-04-22·BA00·III·de·07...
  • Page 19 Operating instructions Additional languages www.stahl-ex.com SolConeX Flange Socket, 16 A Series 8570/15...
  • Page 20 10.3 Repair .......................15 10.4 Returning the Device ..................15 Cleaning ......................15 Disposal ......................15 Accessories and Spare Parts ................15 General Information Manufacturer R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Phone: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...
  • Page 21: En En

    • IEC 60079-11 • IEC 60309 • IEC 61241-0 • IEC 61241-1 Additional standards: See certificates and EC Declaration of Conformity: www.stahl-ex.com. Explanation of the Symbols Symbols in these Operating Instructions Symbol Meaning Tips and recommendations on the use of the device...
  • Page 22: 2.2 Warning Notes

    Explanation of the Symbols Warning Notes Warning notes must be observed under all circumstances, in order to minimize the risk due to construction and operation. The warning notes have the following structure: • Signalling word: DANGER, WARNING, CAUTION, NOTICE • Type and source of danger/damage •...
  • Page 23: Safety Notes

    • Always consult with R. STAHL Schaltgeräte GmbH in case of operating conditions which deviate from the technical data.
  • Page 24: 5 Technical Data

    Technical Data Technical Data Explosion Protection Global (IECEx) Gas and dust IECEx PTB 05.0023 Ex db eb IIC T6 Gb Ex tb IIIC T80°C Db Europe (ATEX) Gas and dust PTB 03 ATEX 1227 E II 2 G Ex db eb IIC T6 Gb E II 2 D Ex tb IIIC T80°C Db Special version with E II 2 (1) G Ex db eb [ia Ga] [ib] IIC T6 Gb...
  • Page 25: 6 Transport And Storage

    Tightening torque Terminals: 1.2 Nm Flange socket: max. 1.0 Nm For further technical data, see www.stahl-ex.com. Transport and Storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free.
  • Page 26 Mounting and Installation ø 85 [ø 3,35 ±0, 0 ±0,01 ±0,20 ±0,10 [1,54 ±0,01 ±0,004 ø 4,50 ±0,10 [ø 0,18 ±0,004 3,07 ±0,20 ±0,01 [ , 7 ±0,20 ±0,01 97 [3,82] ~ 136,5 [~ 5,37] 11475E00 11476E00 8570/15-4.. and 8570/15-5.. Opening figure Flange socket Type...
  • Page 27 Mounting and Installation Colour code and arrangement of socket contacts and terminal markings No. of poles* Frequency Voltage Colour code Position of earth [Hz] contact sleeve 8570/15-3.. 50 and 60 110 ... 130 yellow 2 P + ¿ 50 and 60 200 ...
  • Page 28: Mounting / Dismounting, Operating Position

    Mounting and Installation Mounting / Dismounting, Operating Position The flange socket and the connection chamber on the wall of which it is mounted are sub - assemblies in accordance with the Directive 94/9/EC (see ATEX guidelines), September 2012, section 3.7.5). The sub-assemblies must be installed by a responsible staff member.
  • Page 29: Installation

    Mounting and Installation Installation WARNING Danger due to live components! Risk of severe injuries! • All connections and wiring must be disconnected from the power supply. • Secure the connections against unauthorized switching. DANGER Risk of explosion! Risk of injuries and material damage! •...
  • Page 30 Mounting and Installation Dimensions [mm] Main contacts Auxiliary contacts Ex i auxiliary contacts • Open the enclosure. • Lead the cable through the cable gland into the connection chamber. • Remove the cable sheathing in such a way that the cable gland can still be connected securely (*).
  • Page 31: Operation

    • The flange socket can only be switched with the plug inserted. • If the plug has been disconnected, close the hinged cover with the bayonet ring. Only type 8570/12 and 8575/12 plugs from R. STAHL may be used. 150651 / 8570603300 SolConeX Flange Socket, 16 A 2016-04-22·BA00·III·en·07...
  • Page 32: Maintenance And Repair

    Maintenance and Repair Maintenance and Repair WARNING Unauthorized work being performed on the device! Risk of injuries and material damage! • Work performed on the device must only be carried out by appropriately authorized and trained personnel. 10.1 Maintenance • Consult the relevant national regulations to determine the type and extent of inspections.
  • Page 33: 10.3 Repair

    • Ensure environmentally friendly disposal of all components according to the statutory regulations. Accessories and Spare Parts NOTICE Use only original accessories and spare parts by R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage www.stahl-ex.com. 150651 / 8570603300 SolConeX Flange Socket, 16 A 2016-04-22·BA00·III·en·07...
