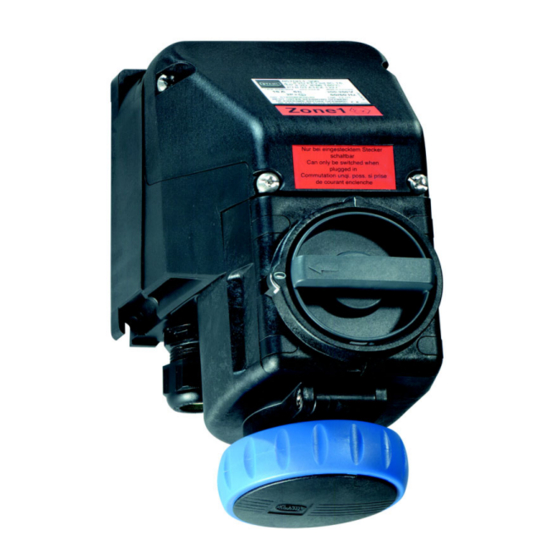

Stahl SolConeX 8570/11 Series Operating Instructions Manual

Wall-mounted socket, 16 a
Hide thumbs Also See for SolConeX 8570/11 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SolConeX
Wall-Mounted Socket, 16 A
Series 8570/11
Operating instructions
Additional languages www.stahl-ex.com
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SolConeX 8570/11 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stahl SolConeX 8570/11 Series

Summary of Contents for Stahl SolConeX 8570/11 Series

  • Page 1 Operating instructions Additional languages www.stahl-ex.com SolConeX Wall-Mounted Socket, 16 A Series 8570/11...

  • Page 2: Table Of Contents

    10.3 Repair .......................15 10.4 Returning the Device ..................15 Cleaning ......................15 Disposal ......................15 Accessories and Spare Parts ................15 General Information Manufacturer R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Phone: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...

  • Page 3: En En En

    • IEC 60079-11 • IEC 60309 • IEC 61241-0 • IEC 61241-1 Additional standards: See certificates and EC Declaration of Conformity: www.stahl-ex.com. Explanation of the Symbols Symbols in these Operating Instructions Symbol Meaning Tips and recommendations on the use of the device...

  • Page 4: En 2.2 Warning Notes

    Explanation of the Symbols Warning Notes Warning notes must be observed under all circumstances, in order to minimize the risk due to construction and operation. The warning notes have the following structure: • Signalling word: DANGER, WARNING, CAUTION, NOTICE • Type and source of danger/damage •...

  • Page 5: Safety Notes

    • Always consult with R. STAHL Schaltgeräte GmbH in case of operating conditions which deviate from the technical data.

  • Page 6: En 5 Technical Data

    Technical Data Technical Data Explosion Protection Global (IECEx) Gas and dust IECEx PTB 05.0023 Ex db eb IIC T6 Gb Ex db eb [ia Ga] [ib] IIC T6 Gb Ex tb IIIC T80°C Db Europe (ATEX) Gas and dust PTB 03 ATEX 1227 E II 2 G Ex db eb IIC T6 Gb E II 2 D Ex tb IIIC T80°C Db Special version with...

  • Page 7: En 6 Transport And Storage

    Stopping plug 1 x M25 x 1.5 For further technical data, see www.stahl-ex.com. Transport and Storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free.

  • Page 8: En En

    Mounting and Installation Mounting and Installation Dimensions / Fastening Dimensions Dimensional drawings (all dimensions in mm [inch]) – Subject to alterations 10338E00 10333E00 8570/11-3.. 8570/11-4.. and 8570/11-5.. Arrangement of the earth contact sleeve Position: clock hour position, View: front side of the socket Example: Clock hour position 06190E00 380 ...
  • Page 9 Mounting and Installation Colour code and arrangement of socket contacts and terminal markings No. of poles* Frequency Voltage Colour code Position of earth [Hz] contact sleeve 8570/11-3.. 50 and 60 100 ... 130 yellow 2 P + ¿ 50 and 60 200 ...

  • Page 10: Mounting / Dismounting, Operating Position

    Mounting and Installation Mounting / Dismounting, Operating Position 7.2.1 Assembly Install a protective roof or wall if mounted outdoors. Operating position Hinged cover facing downwards, connection chamber - upwards. • Fasten the wall-mounting socket by means of four screws in the vertical operating position on an even wall.

  • Page 11: Installation

    Mounting and Installation Installation WARNING Danger due to live components! Risk of severe injuries! • All connections and wiring must be disconnected from the power supply. • Secure the connections against unauthorized switching. DANGER Explosion hazard! Risk of injuries and material damage! •...
  • Page 12 Mounting and Installation Dimensions [mm] Main contacts Auxiliary contacts Ex i auxiliary contacts • Open the enclosure. • Lead the cable through the cable gland into the connection chamber. • Insert the conductors in the corresponding terminals and clamp them (for tightening torque, see chapter "Technical data").

  • Page 13: En 8 Commissioning

    The wall-mounting socket can be switched only with the inserted plug. If the plug has been disconnected, close the hinged cover with the bayonet ring. Only Type 8570/12 and 8575/12 plugs by R. STAHL may be used. 150646 / 8570601300 SolConeX Wall-Mounted Socket, 16 A 2016-04-21·BA00·III·en·06...

  • Page 14: Maintenance And Repair

    Maintenance and Repair Maintenance and Repair WARNING Unauthorized work being performed on the device! Risk of injuries and material damage! • Work performed on the device must only be carried out by appropriately authorized and trained personnel. 10.1 Maintenance • Consult the relevant national regulations to determine the type and extent of inspections.

  • Page 15: 10.3 Repair

    • Ensure environmentally friendly disposal of all components according to the statutory regulations. Accessories and Spare Parts NOTICE Use only original accessories and spare parts by R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage www.stahl-ex.com. 150646 / 8570601300 SolConeX Wall-Mounted Socket, 16 A 2016-04-21·BA00·III·en·06...
