Microtek ScanMaker 3700 Supplementary Manual page 6

For Macintosh users:

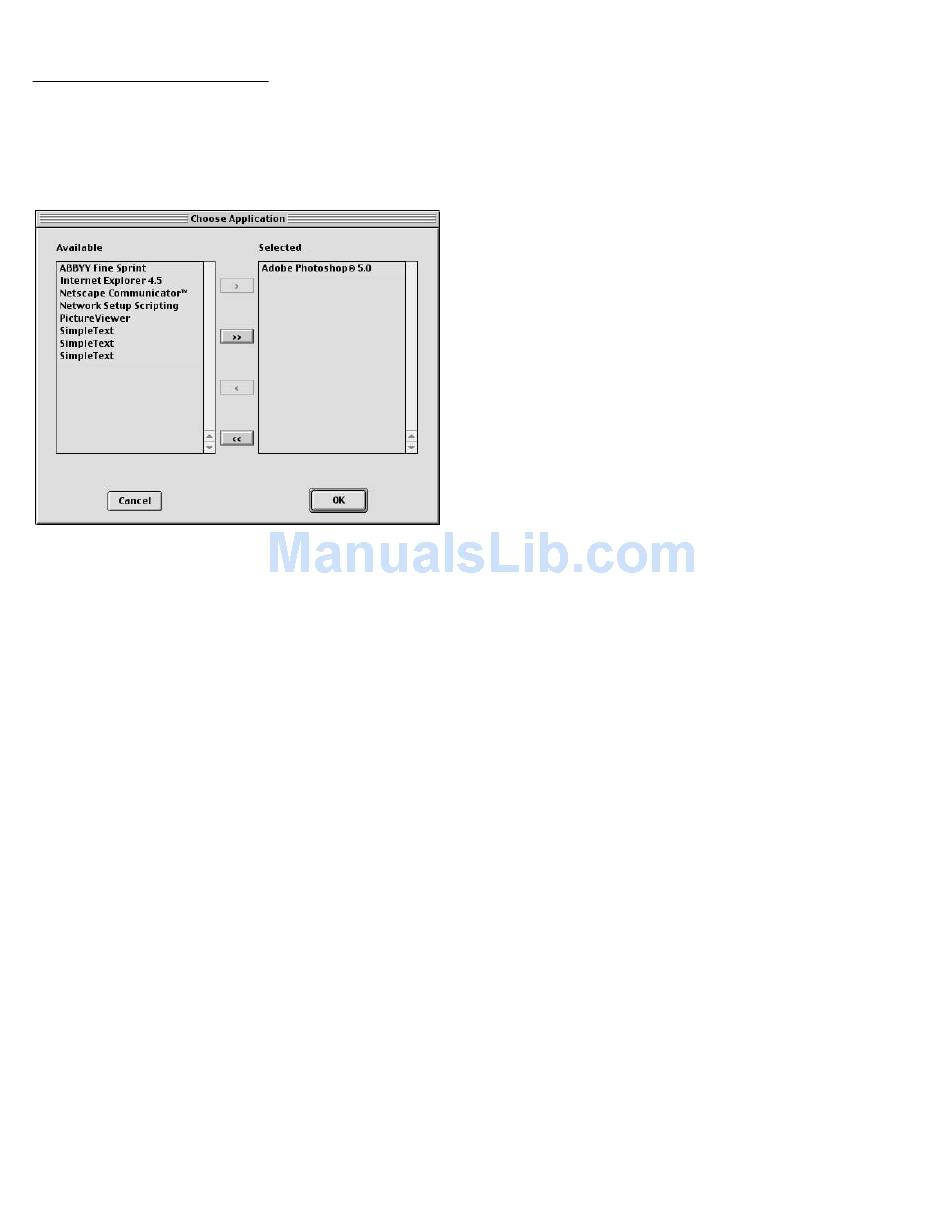

Choose Custom from the bottom of the list to bring up "Choose Application" window. The
MSC utility starts to search for the available software programs in your disk and displays
them on the left panel of the window.
Scan Frame
Select either Auto Crop or Fixed Size.
Auto Crop: If Auto Crop is selected, the scanner first executes a preview, tries to
determine the size of the original image, then performs the scan and crops the full scan
frame to fit the image automatically.
Fixed Size: If Fixed Sized is selected, the Auto Crop function is disabled and instead,
you select the image size from the list. When a scan is performed, the selected scan
frame size is framed on the top-center of the glass bed. Thus, it is the important that
you position the original on the top-center of the glass bed. A centering marker is
provided on the top ruler to guide you with alignment.
Thumbnail of the Scan frame: Shows the selected scan frame. If Auto Crop is
selected, the selected scan frame of the thumbnail is disabled.
Destination
Defines the folder for saving and storing the scanned images.
Save in: Saves the image to the current folder destination. To change the folder
location, click the folder icon at the right end of the existing path.
file:///D|/msc/WebHelp/panel_Scan.htm (3 of 4) [8/20/03 2:28:28 AM]
select the application, then click Delete.
> or >> : Select and Add a particular
software or all the available software from
the "Available" panel to the "Selected"
panel.
< or << : Select and Delete a particular
software or all the software from the
"Selected" panel to the "Available" panel.
When you are done with your software
selection. click OK to update the changes
made, or Cancel to abandon the selection
you've just made.
