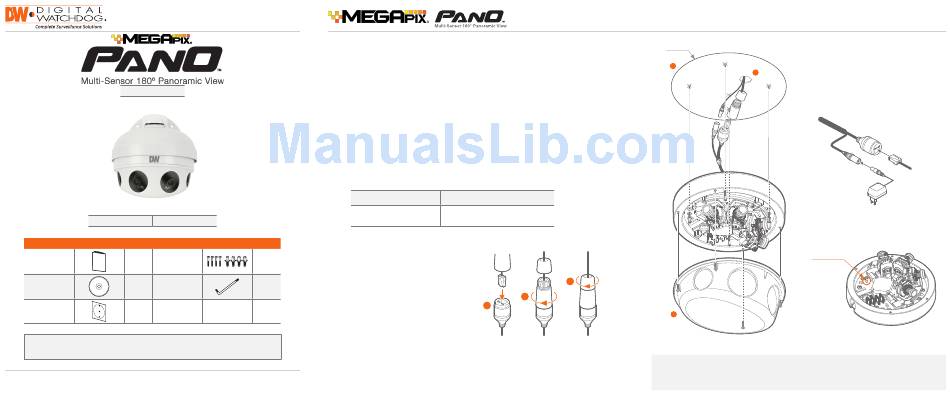

Digital Watchdog MEGAPIX PANO DWC-PZV2M72T Quick Start Manual

DWC-PZV2M72T
Username: admin Password: admin
WHAT'S IN THE BOX
Screw & Plastic
QSG Manual 1 Set
Anchor – 4pcs
Manual CD 1 Set Torx Wrench
Template Sheet 1 Set
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
Step 1 – PREPARING TO MOUNT THE CAMERA
1.
Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the wall
or ceiling.
2. For the installation process, remove the dome cover from the camera module by loosening the screws
on the dome. Use the wrench provided with the camera.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
3. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet
cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.
Power Requirements
DC 12V
PoE IEEE 802.3atPoE+ / PoE Class 3
NOTE: If you plug the camera into PoE+ but then plug that switch into a regular PoE it will not work.
4. To use the camera's water proof wiring:
1 Set
(1). Install the LAN cable into (a).
(2). (b) will be assembled to (a) with a 1/4 turn.
1 Set
(3).
Thread (c) tightly to (b).
Step 3 – INSTALLING THE CAMERA MODULE
5. Assemble the dome cover over the camera body and detach the protecting film from the dome bubble.
digital-watchdog.com
Power Consumption
12VDC: 22.5W
PoE+: 25.5W
c
b
a
Template
Sheet
1
3
Reset Button
2
Resetting the camera: To reset the camera, use the tip of a paper clip or a pencil and press the
reset button. Pressing the button for five (5) seconds will initiate a camera-wide reset of all the settings,
including network settings.
Quick Start Guide
Network
Connection
Power
