Connecting the Monitor

Warning: Do not operate the LCD monitor with unspecified
power supply. Usage of incorrect voltage will cause
malfunction and may cause fire or electric shock.
1. Turn off your computer and LCD monitor.
2. Use the VGA cable to connect the VGA connector of the LCD
monitor to the VGA port of the computer. Make sure the
cables are securely connected.
3. Plug the DC connector of the adapter to your monitor's DC
jack.
4. Plug the female end of the power cord into the AC adapter.
5. Connect the male end of the power cord into a wall socket.
6. Turn on your computer, and then turn on your LCD monitor.

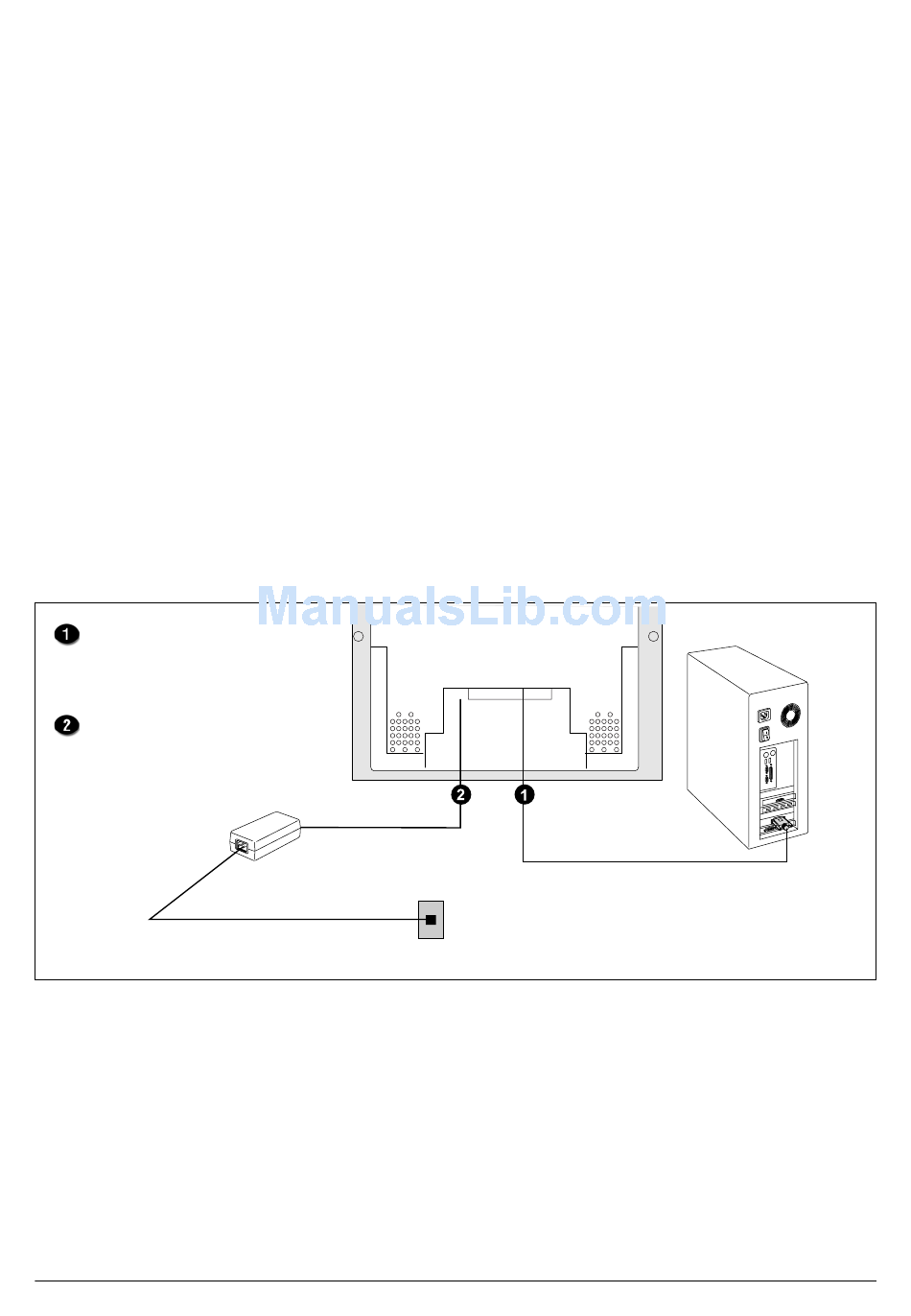

VGA Cable:
Connect with VGA
cable.
Power:
Plug into the AC
power adapter.
Power cord
Note: For added protection, the use of a Surge Protection
device is recommended. The Surge Protection device should be
installed between the AC Adapter and the electrical wall outlet to
prevent the effects of sudden current variations from reaching
and damaging the LCD monitor.
AC/DC Adapter
5
VGA cable
