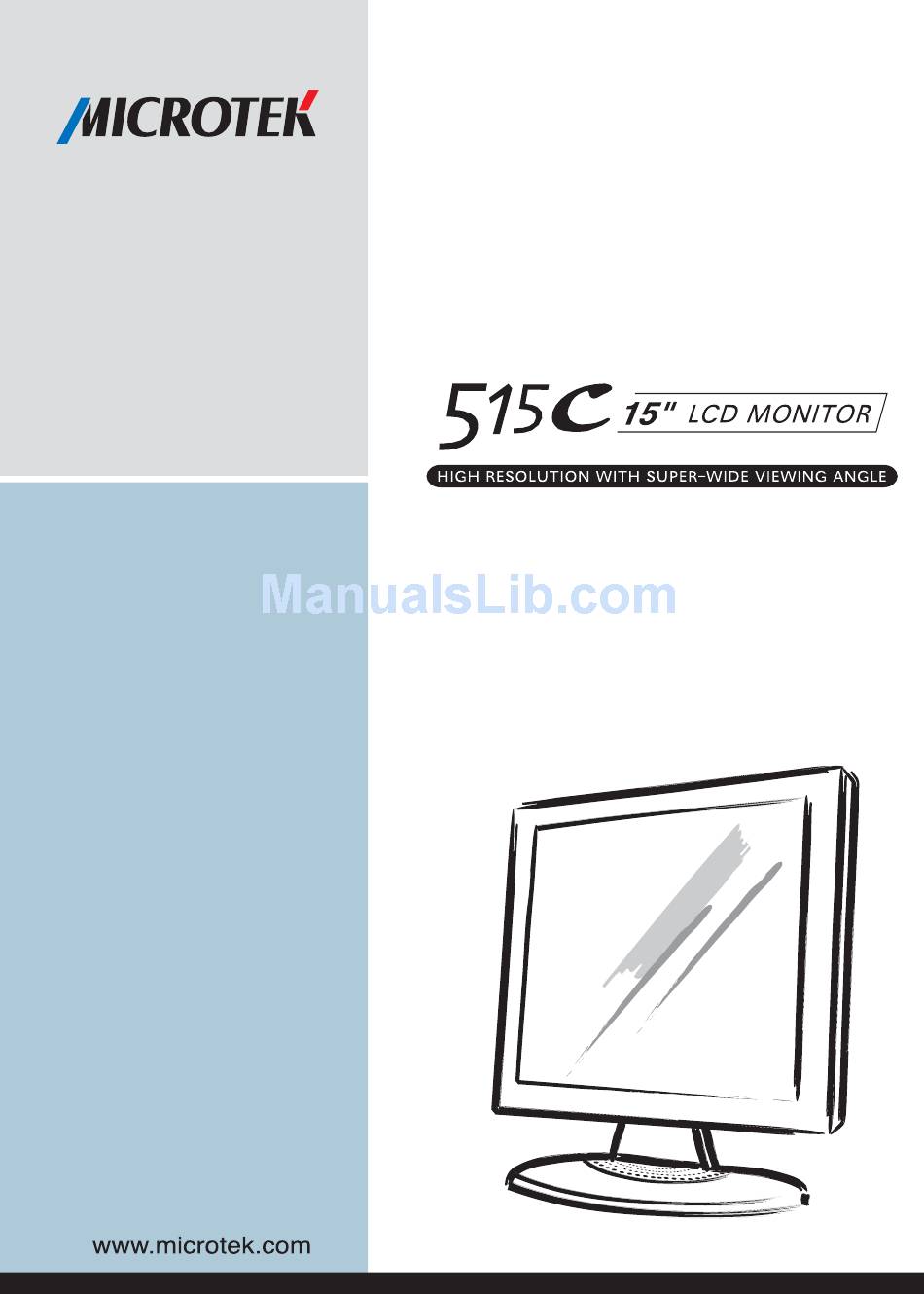

- Page 1 USER'S MANUAL...
-
Page 2: Fcc Compliance Statement
FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Radio Frequency Interference Statement
B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. ” Energy Star Notice As an ENERGY STAR Partner, Microtek International, Inc. has determined that this monitor meets the ENERGY STAR guidelines for energy efficiency. -
Page 4: Table Of Contents
Product Features ... 1 Unpacking ... 1 Precautions ... 2 Cleaning ... 3 Installation Installing the Monitor ... 4 Connecting the Monitor ... 5 Operating the Monitor How to Use the OSD ... 6 Operating Procedure ... 6 Adjusting Monitor Display ... 7 Auto Adjustment ... -
Page 6: Introduction
Introduction Congratulations on the purchase of your new Microtek LCD monitor! Providing a maximum resolution of 1024 x 768 pixels with a flicker-free display at up to 75Hz refresh rate, your LCD monitor offers sharp and vibrant color display without the radiation emission and hazards associated with CRT monitors. -
Page 7: Unpacking
Before unpacking your LCD monitor, prepare a stable, level, and clean surface near a wall outlet for your LCD monitor. 1. Set the LCD monitor box in an upright position and open from the top of the box before removing the right/left cushions. -
Page 8: Cleaning
• Do not scratch or rub the screen with a hard object. • Never use any of the following solvents on the LCD monitor: Thinner; spray-type cleaners; benzene; wax; abrasive cleaners; and acid or alkaline solvents. Such harsh chemicals may cause damage to the cabinet and the LCD screen. -
Page 9: Installation
• DO NOT place your LCD monitor near a window as it may be severely damaged if exposed to rain, water, moisture, or sunlight. -
Page 10: Connecting The Monitor
VGA port of the computer. Make sure the cables are securely connected. 3. Plug the DC connector of the adapter to your monitor’s DC jack. 4. Plug the female end of the power cord into the AC adapter. -
Page 11: Operating The Monitor
Operating the Monitor The LCD monitor has been preset at the factory with the Timing shown in the section “Appendix B” to achieve optimal display. You can adjust the display to the desired brightness and sharpness by following the instructions. -
Page 12: Adjusting Monitor Display
Adjusting Monitor Display There are two ways to adjust the monitor screen: auto adjustment and manual adjustment Auto Adjustment 1. Power ON the LCD monitor and computer. 2. Make sure that your LCD monitor is not “CONTROL- LOCKED” by pressing “ “ and “—“... -
Page 13: Osd Adjustment Lock
OSD Adjustment Lock This function is used to prevent inadvertent changing of monitor settings. All adjusted items (except "BRIGHTNESS") will be locked when this feature is used. 1. Press the “ ” and “—“ buttons simultaneously; the “CONTROL LOCK” screen is displayed. -
Page 14: The Menu Table
The Menu Table To access the menu and submenu items shown in the table below, refer to the section “Operating Procedure” (p. 7). Main Menu Submenu (BRIGHTNESS) (CONTRAST) BL (BLACK LEVEL) (LANGUAGE) (CLOCK) (CLOCK PHASE) (HORIZONTAL POSITION) Moves the screen horizontally (left/right). (VERTICAL POSITION) (AUTO SETUP) (AUTO ADJUST) -
Page 15: Appendix A: Specifications
Appendix A: Specifications LCD Type Display Area Input Signal Dot Pitch Scanning Frequency Resolution Display Color Luminance Contrast Ratio Response Time Viewing Angle Control Type Plug and Play Audio Dimension (H x W x D) Gross/Net weight Tilt Swivel Wall Mount AC Input Power Management Power Consumption... -
Page 16: Appendix B: Supported Timing
Appendix B: Supported Timing... -
Page 17: Appendix C: Troubleshooting
Appendix C: Troubleshooting If the LCD monitor fails to function correctly, please follow the following steps for a possible solution. 1. Perform the adjustments according to the section, “Operating the Monitor. ” 2. Refer to the rest of this section if you cannot find a proper item listed in “Operating the Monitor”... - Page 18 t f I t f I g i l t f I t f I t f I t f I t f I t f I t f I t f I t f I t f I t f I t f I t f I t f I...
-
Page 19: Appendix D: Power Management
Appendix D: Power Management The LCD Monitor complies with the VESA DPMS (version 1.0p) power management proposal. The VESA DPMS proposal provides four phases of power saving modes by detecting the horizontal or vertical sync signal. - - - <... -
Page 20: Appendix E: For Your Safety
PROTECT AND USE THE CABLE CORRECTLY Do not pull or bend the power cable and VGA cable or place the monitor or any heavy objects on the cables. If the cables are damaged, they may cause fire or electric shock. - Page 21 THERS ERGONOMIC RECOMMENDATIONS Do not operate the monitor in a dark room or against a bright background. For optimal viewing comfort, the monitor should be just below eye level and 16-24 inches (40-60 cm) away from your eyes. When using the monitor over a prolonged period of...
-
Page 22: Special Notes On Lcd Monitors
The following conditions are normal with LCD monitors and do not indicate a problem. • When turning on the LCD monitor for the first time, the picture may not fit in the display area. This is because of the type of computer being used. In this case, adjust the picture position to its correct position.
