Summary of Contents for Microtek 527C

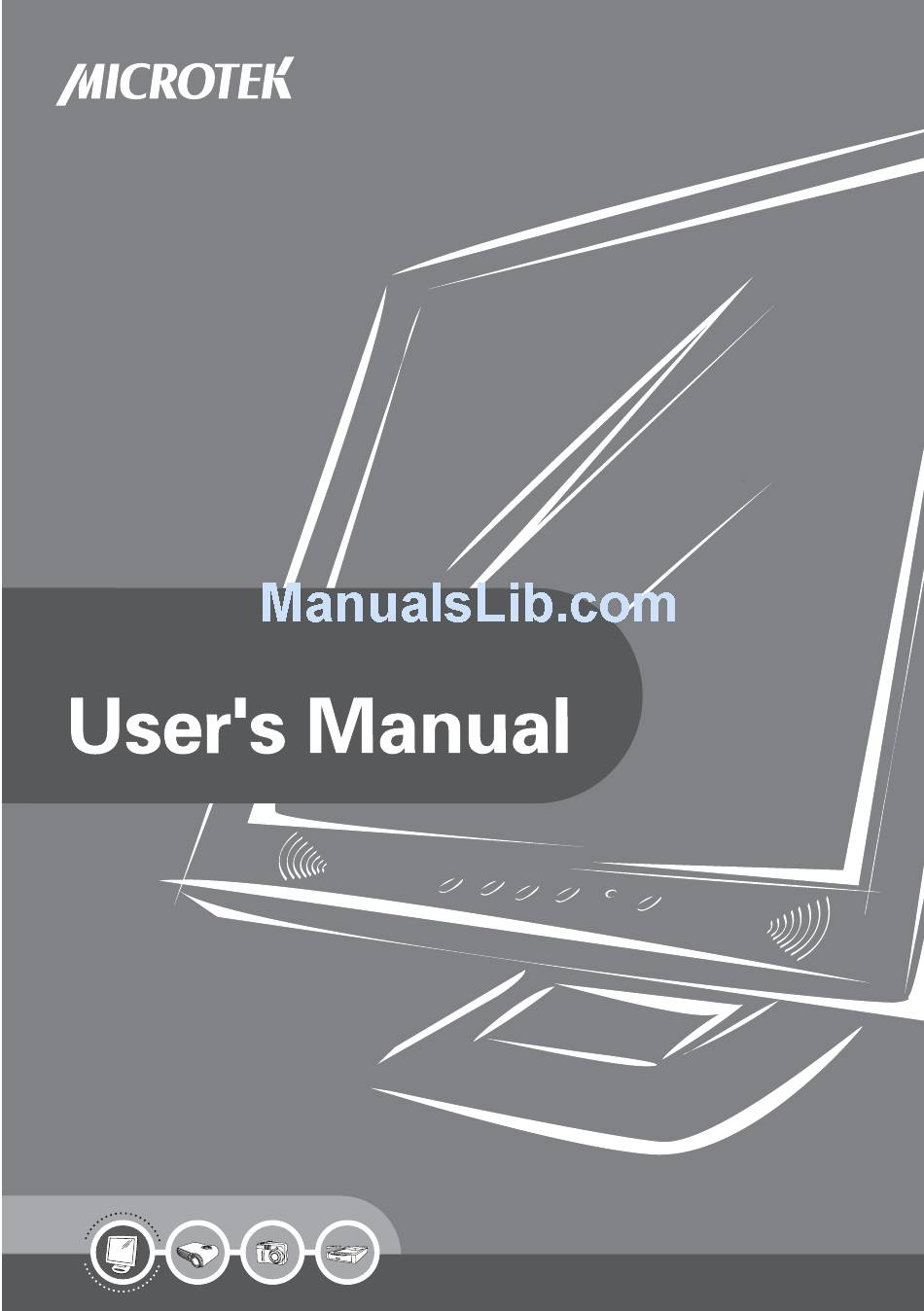

- Page 1 527C 15" LCD Monitor...
- Page 2 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Opeartion is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 Radio Frequency Interference Statement Warning: This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Canadian Doc Notice For Class B Computing Devices This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulation of the Canadian Department of Communications.
-
Page 4: Table Of Contents
TABLE OF CONTENTS... III Your New LCD Monitor Unpacking Identifying Components Adjusting the Tilting Angle Connecting AC Power and Video Cable Power Management System The LCD Monitor’s Control Panel Adjusting the Monitor’s Display TFT LCD Monitor Specifications Supported Timing Troubleshooting ABLE OF ONTENTS... -
Page 6: The Lcd Monitor
LCD Monitor and your computer do not overheat. Set up your LCD Monitor so that the panel is not facing a window where sunlight often comes in. The glare caused by sunlight reflecting off of the LCD Monitor’s screen will make it difficult to use... - Page 7 If you find that any item to be missing or appear to be damaged, contact your dealer immediately. Do not throw away the packing material or shipping carton in case you need to ship or store the LCD monitor in the future.
-
Page 8: Identifying Components
This LED indicator stays lit when the power is on and blinks when the LCD monitor is in power-saving mode. 2. Monitor Stand 3. LCD Screen The LCD monitor screen is a 15-inch TFT 1024 x 768 screen. 4. LCD Monitor Control Panel Refer to Chapter 2 for more details. - Page 9 B. "Hot Keys" for Quick Adjustment of Monitor Settings Figure 1-2: "Hot Keys" 1. Auto-adjust "hot key": Press button 2 to apply the monitor setting automatically. A small “Auto Adjust” OSD is also displayed. 2. Contrast-adjust "hot key": Press button 3 to allow you to adjust the contrast of the display directly.
-
Page 10: Adjusting The Tilting Angle
C. The LCD Monitor — Rear View 1. DC Power Jack 2. VGA Cable With 15-Pin D-Sub VGA Connector Adjusting the Tilting Angle The LCD monitor’s angle settings range from -5 to 25 . Figure 1-3: LCD Monitor Rear View Figure 1-4: Tilting the Monitor... -
Page 11: Connecting Ac Power And Video Cable
Connecting AC Power and Video Cable Turn off your PC and the LCD monitor before connecting your LCD monitor to the computer. Figure 1-5: The AC Adapter Power Management System The LCD monitor complies with the VESA DPMS power management proposal. -
Page 12: The Display Controls
5. Power Switch This button lets you turn power for the LCD monitor ON or OFF. This is also a "hot key" to close the OSD menu while it is on display. -
Page 13: Adjusting The Monitor's Display
Monitor-Control Option The Monitor-Control option allows you to adjust the LCD monitor’s display settings. H-Position: Moves the LCD monitor’s display left or right on a horizontal plane. V-Position: Moves the LCD monitor’s display up or down on a vertical plane. - Page 14 Phase: Adjusts the focus and clarity of the display. Clock: Adjusts the display's pixel alignment. Reset: Resets all of the Monitor-Control submenu settings. Exit: Exits the Monitor-Control submenu. OSD-Control Option The OSD-Control option lets you adjust the position of the OSD on the screen.
- Page 15 Graphic-Control Option The Graphic-Control option lets you adjust the contrast, brightness and color of the LCD monitor’s display. Contrast: Adjusts the difference between the lightest and darkest areas of the LCD monitor’s display screen. Brightness: Adjusts the level or Brightness on the display screen.
- Page 16 Graph/Text Option The Graphic/Text option lets you switch between text and graphic display modes. OSD Exit Option The OSD Exit option lets you close or exit the OSD menu. Take note that the OSD menu will close automatically if left inactive for a few seconds.
- Page 17 Signal out of monitor’s supported range When the frequency range of the signal is out of the Monitor’s specifications, the display will show either of the following messages: Case 1: The incoming frame rate is higher than 75Hz.
-
Page 18: Tft Lcd Monitor Specifications
TFT LCD Monitor Specifications LCD Panel Control Functions Power On-Screen Main Menu Display Auto Adjust (OSD) Monitor Control OSD Control Misc. Control Graphic Control Graph/Text OSD Exit Display Area (mm) Display Colors Video Interface Appendix A 15" XGA Software Power switch with LED indicator... - Page 19 Scanning Frequency 24-62K H/V, Hz 50-75 Power Management Meets VESA DPMS Power Consumption 33/5Max. (ON/OFF, W) Dimensions 14.3 x 13.0 x 7.7 in. WxHxD (362 x 331 x 195 mm) Net Weight 7.0 lbs Approx. (3.2 Kg) Power Supply 12V/3A, 36W Universal Input AC Adapter (External) Environment Operating Temperature: 32 to 104°F (0 to 40°...
-
Page 20: Supported Timing
Supported Timing Item Standards NEC PC98 NEC PC98 MAC 13" mode MAC 16" mode MAC 17" mode VESA VESA VESA SVGA VESA VESA VESA VESA *Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. *Specifications are subject to change without notice. -
Page 21: Troubleshooting
PROBLEM: There is no LCD display If there is no display on the LCD, refer to the following: 1. Make sure that the power indicator on the LCD monitor is lit, all connections are secure, and the system is running on the correct timing. - Page 22 3. If step 2 does not work, connect your PC system to another external CRT. If your PC system functions properly with a CRT monitor but it does not function with the LCD monitor, and the LCD monitor’s power LED is blinking, the output timing of the PC’s VGA card may be out of the LCD’s synchronous range.
- Page 23 219-20-990265 62005xxx10...
