Microtek 201SD User Manual

20.1" lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 201SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microtek 201SD

Summary of Contents for Microtek 201SD

  • Page 2: Fcc Compliance Statement

    FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. ” Energy Star Notice As an ENERGY STAR Partner, Microtek International, Inc. has determined that this monitor meets the ENERGY STAR guidelines for energy efficiency.

  • Page 4: Table Of Contents

    Adjusting the Viewing Angle ... 9 Operating the Monitor ... 10 A. The Control Panel ... 10 B. Hot Keys ... 1 1 C. Adjusting the Monitor’s Display ... 1 1 The OSD Menu Table ... 12 Specifications ... 13 Supported Timing ... 14...

  • Page 5: Introduction

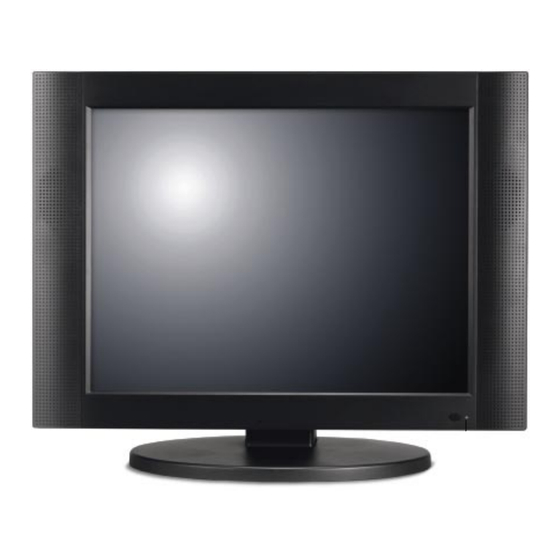

    Introduction Congratulations on the purchase of your new LCD monitor! With a 20.1" TFT active matrix color crystal display and offering a maximum resolution of 1600 x 1200 pixels, your 20.1" LCD monitor offers sharp and vibrant color display with low radiation emission.

  • Page 6: Unpacking

    Before unpacking your LCD monitor, prepare a stable, level, and clean surface near a wall outlet for the monitor. 1. Set the LCD monitor box in an upright position, and open from the top of the box before removing the right/left cushions.

  • Page 7: Cleaning

    • Do not scratch or rub the screen with a hard object. • Never use any of the following solvents on the LCD monitor: Thinner; spray-type cleaners; benzene; wax; abrasive cleaners; and acid or alkaline solvents. Harsh chemicals such as these may cause damage to the cabinet and the LCD screen.

  • Page 8: Connecting The Monitor

    Usage of incorrect voltage will cause malfunction and may cause fire or electric shock. • Do not pull or bend the power cable, or place the monitor or any heavy objects on the cables. If the cables are damaged, fire or electric shock may ensue.

  • Page 9: Adjusting The Viewing Angle

    Adjusting the Viewing Angle For optimal viewing, the viewing angle of the monitor may be adjusted 35 degrees up and 3 degrees down. Down: 3° Up: 35°...

  • Page 10: Operating The Monitor

    OSD setting. 5. Power switch ( or OFF . 6. Power LED: Indicates various status levels for the monitor, such as Green (Normal operation), and Orange (Power management, depending on the mode of operating).

  • Page 11: Hot Keys

    B. Hot Keys 1. Volume adjust hot key —: Decreases the volume. 2. Volume adjust hot key +: Increases the volume. C. Adjusting the Monitor’s Display 1. Pressing the OSD Menu button causes the screen below to appear. 2. Press the + or — button to select a menu item.

  • Page 12: The Osd Menu Table

    Resets all of the DISPLAY ADJUST settings to their default values. Returns to the previous menu. Adjusts the colors in the LCD monitor to a warmer or cooler shade, depending on the selected color temperature. Changes the OSD language. Languages supported include English, French, German, Italian, and Spanish.

  • Page 13: Specifications

    Specifications LCD Type Display Area Input Signal Dot Pitch Resolution Display Color Contrast Ratio Brightness Response Time Display Mode Viewing Angle Plug and Play Audio Dimensions (H x W x D) Gross/Net Weight AC Input Power Consumption Regulatory Compliance Environment Important: Specifications, bundles, and accessories are subject to change without notice.

  • Page 14: Supported Timing

    Supported Timing Display Mode 720 x 350 640 x 480 640 x 480 640 x 480 640 x 480 720 x 400 SVGA 800 x 600 800 x 600 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1024 x 768 1024 x 768...

  • Page 15: Troubleshooting

    PROBLEM: There is no LCD display If there is no display on the LCD, refer to the following: 1. Make sure that the power indicator on the LCD monitor is lit, that all connections are secure, and that the system is running on the correct timing.
