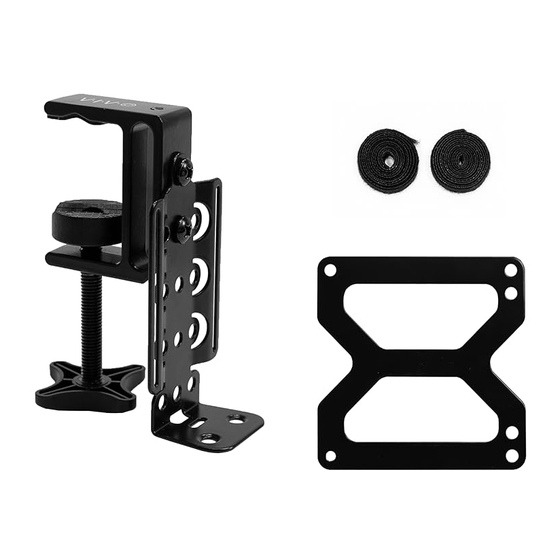

Universal Docking Station Mount
Instruction Manual
SKU: MOUNT-DS01
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-ds01
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-DS01
Summary of Contents for Vivo MOUNT-DS01
- Page 1 Universal Docking Station Mount Instruction Manual SKU: MOUNT-DS01 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-ds01 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 STEP 2 Slide Velcro Straps (C) through the bottom and side slots on Mounting Bracket (B), as shown. STEP 3 Mount assembly to VESA holes on monitor or over VESA plate using M4x10mm Screws (M-A) using a Phillips screwdriver.
- Page 4 ASSEMBLY OPTION B | Under Desk Mounting STEP 1 Slide Velcro Straps (C) through the bottom and side slots on Mounting Bracket (B), as shown. STEP 2 Mark and drill pilot holes using a 3/32” (2.5mm) bit, drilling 3/8” (10mm) deep. Install Mounting Bracket (B) to underside of desktop using ST5x14mm Screws (M-B) and a Phillips screwdriver.
- Page 5 ASSEMBLY OPTION C | Clamp Mounting STEP 1 Choose one of the orientations below and attach Mounting Bracket (B) to Clamp (D) using 0.25” x 0.5” Screws (S-B) and a Phillips screwdriver. STEP 2 Slide Velcro Straps (C) through the bottom and side slots on Mounting Bracket (B), as shown.
- Page 6 STEP 3 Secure Clamp (D) to desired location.
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
